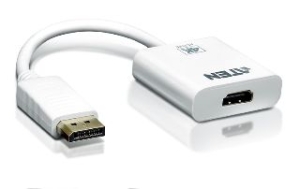

Aten VC986 DisplayPort to 4K HDMI Active Adapter
Features
- Converts DisplayPort signals to HDMI output
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter – features an advanced chip which ensures stable video
signal conversion even when the video
- source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinityâ„¢ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
Overview
The VC986 is an active DisplayPort to HDMI adapter that allow you to connect
your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or
other display. The ATEN VC986 is an active adapter, featuring advanced chips
which ensure stable video signal conversion even when the video source does not
support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to
4K make this adapter ideal for users who require a high performance signal
conversion solution. * Dual-mode DisplayPort (DP++) can directly process the
signal from DisplayPort to HDMI or DVI signals.
Package Contents
- 1x DisplayPort to 4K HDMI Active Adapter

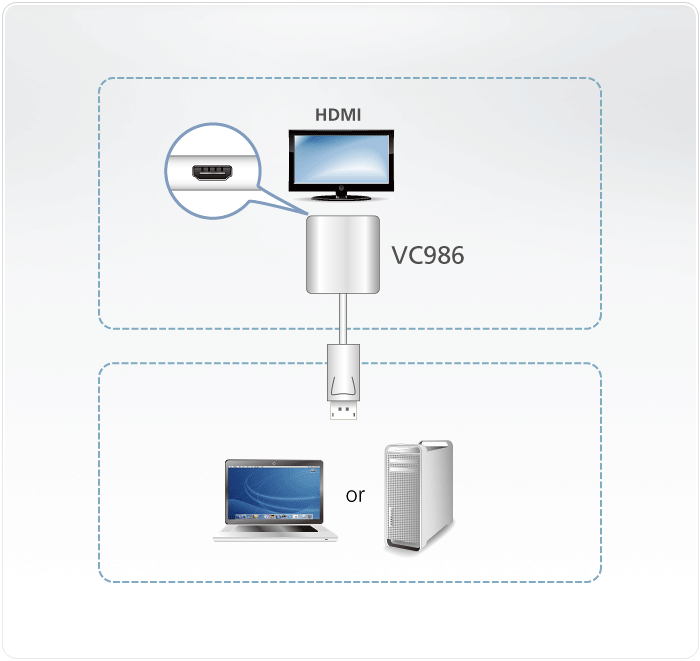

Diagram
Specifications
|
Video Input |
|
|
Interfaces |
1 x DisplayPort Male (White) |
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A female (Black) |
|
Video |
|
|
Max. Pixel Clock |
297 MHz |
|
Compliance |
DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3 |
|
Max. Resolution |
3840x2160@30Hz, 1920 x 1200@60Hz. |
|
Audio |
|
|
Output |
1 x HDMI Type A Female (Black) |
|
Environmental |
|
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Operating Temperature |
0 - 50 ºC |
|
Storage Temperature |
-20–60 ºC |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.04 kg ( 0.09 lb ) |
|
Dimensions (L x W x H) |
18.00 x 4.50 x 1.50 cm |
|
|
(7.09 x 1.77 x 0.59 in.) |
|
Carton Lot |
40 pcs |
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
