Datalogic QuickScan I Lite QW2120-BKK10GS Hand-Held Scanner - 1D, USB - Black

Features

  • Wide scan angle
  • Drop Resistance to 1.5 m / 5.0 ft
  • Water and Particulate Sealing Rating: IP42
  • Laser-like thinner and extended scan line
  • Datalogics patented Green Spot technology for good-read feedback

Overview

The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

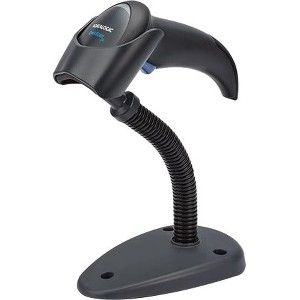

A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a tiltable head for various angle settings.

The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Specifications

Basic
Barcode Dimension: 1D
Brand Name: Datalogic
Colour: Black
Connectivity Technology: Cable
Host Interface: USB
Image Sensor: Imager
Product Family: QuickScan I Lite QW2100
Product Type: Handheld Barcode Scanner
General Information
Brand Name: Datalogic
Manufacturer Part Number: QW2120-BKK10GS
Manufacturer Website Address: https://www.datalogic.com
Manufacturer: Datalogic S.p.A
Product Line: QuickScan I Lite
Product Model: QW2120-BK
Product Name: QuickScan I Lite QW2120-BK Handheld Barcode Scanner
Product Series: QW2100
Product Type: Handheld Barcode Scanner
Interfaces/Ports
Host Interface: USB
Miscellaneous
Additional Information:

USB Cable separate

Physical Characteristics
Colour: Black
Weight (Approximate): 119 g
Technical Information
Barcode Dimension: 1D
Barcode Symbology Supported: 1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Postal Codes:
  • China Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • S1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Connectivity Technology: Cable
Image Sensor: Imager
Scan Rate: 400 scan/s

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Datalogic) web site.
