All stock codes associated to this product
IWA1BLAP, IW-A1-BLA-P, 4156915

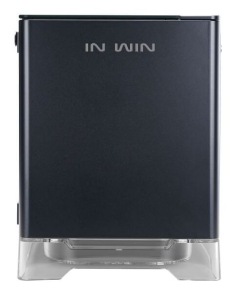

In-Win A1 mini-ITX Case - 600W PSU, Black
Exquisite Detailing from Top to Base
The modern Scandinavian style design is complemented with tempered glass and
brushed aluminium. The A1 white presents a stunning and sleek appearance; the
black version demonstrates a simple and modern vibe.
Squaring Infinite Possibilities
The square structure provides a hassle-free installation, and the capacity to
house powerful hardware in its Mini-ITX form. The A1 supports a CPU heatsink
height up to 160mm and accommodates up to 300mm length graphics cards.
Wireless Charging Station
Take charge of your mobile devices with the all new wireless charging
feature! Simply place your Qi enabled devices in the designated charging area on
top. In Wins included PSU offers continuous power even when your PC is off.
Charge anytime without being wired!
User Friendly Design
The 3mm tempered glass side panel can be easily removed with its tool-less
design by pulling the tabs and lifting up. A specialized GPU holder provides
extra support to graphics cards to prevent them from sagging. A dust filter on
the bottom reduces unwanted dust.
Floating in A1r
The bottom RGB effect reflects through the tinted transparent stand, creating
the illusion of floating! Floating powered by RGB.
* If your motherboard doesn't have an RGB header, please use the provided
LED-SATA connector and LED 4-Pin header to set default LEDs.
In Win 600W PSU
The In Win 600W PSU has an 80 PLUS Bronze certification. The PSU is prebuilt
within the A1 with the cables already managed and is accommodated with two GPU
connectors (PCI-E 6+2-pin) for high-end graphics cards. Top PSU chamber makes
the system cleaner, and creates an ideal climate for the motherboard and
graphics cards.
Specifications
| Model |
A1 |
| Part Number |
A1Black / IW-A1-BLA-P
|
| Colors |
Black |
| Case Type |
Mini ITX Tower |
| Case Material |
SECC, Tempered Glass |
| M/B Compatibility |
Mini-ITX |
| Expansion Slots |
PCI-E x 2 |
| Maximum Compatibility |
VGA Card Length: 300mm
CPU Heatsink Height :160mm |
| Front Ports |
2 x USB 3.0
HD Audio |
| Internal Drive Bays |
2 x 2.5" |
| Thermal Solution Compatibility |
1 x 120mm Side Fan
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm
Bottom Fan |
| Power Supply Compatibility |
In Win 600W PSU Included |
Product Dimension
(H x W x D)
with screw & handle height |
273 x 216 x 355.5mm
(10.7" x 8.2" x 14") |
Product Dimension
(H x W x D) |
273 x 210 x 355.5mm
(10.7" x 8.2" x 14") |
Package Dimension
(H x W x D) |
344 x 295 x 414 mm
(13.5" x 11.6" x 16.2") |
| Net Weight |
6 kg/ 13.2lbs |
| Gross Weight |
6.9 kg/ 15.3lbs |
