Thermaltake View 71 Tempered Glass RGB Edition Mid-Tower Chassis - NO PSU, Black

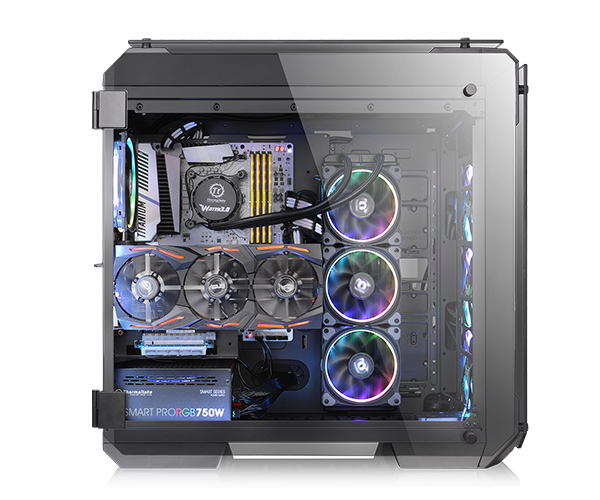

Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass RGB Edition Full Tower Chassis features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with three 140mm Riing RGB fans, Vertical GPU mount and 3-Way radiator support for todays PC hardware demands, the only limitation is your imagination.

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed TT Premium with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltakes desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Four-Sided 5mm Thick Tempered Glass Panels with Swing Door Design



Premium-quality 5mm thick tempered glass guarantees the durability of the window and adds overall strength to the chassis. Swing Doors on either side allows users to demonstrate their DIY spirit and enjoy the ultimate internal component visibility. Take on easy to install building with a fully modular design and easy removal of swing door for full access.

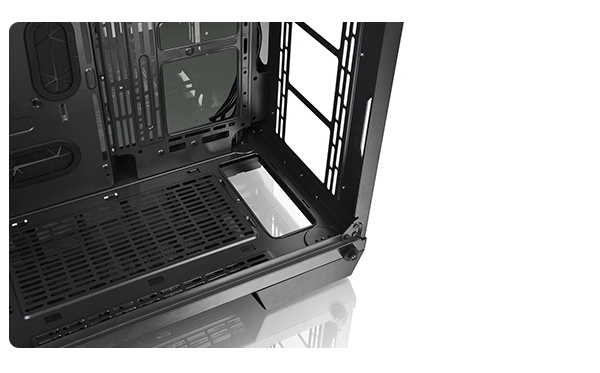

Make the Move to Modular Design

The View 71 TG RGB Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.

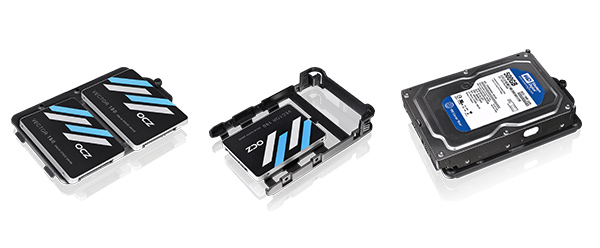

Tool-Free Installation



Innovative 3.5 and 2.5 tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely interchange the 3.5 and 2.5 storage drives to secure and store with ease.

High-End Complete Solution

The View 71 TG RGB Edition allows users to build a complete high-end system that supports motherboards up to standard E-ATX with high-wattage PSU up to 220mm length. With extended graphic card support (up to 410mm), the case simultaneously protects the hardware and increases the CPUs overclocking potential for users looking to get the most out of their hardware. Modular HDD cage design offers more flexibility for custom cooling loops to take advantage of high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating enthusiast grade liquid cooling systems.

Riser GPU Support Bracket



Specially designed for dual GPU placement options, the View 71 TG RGB Edition has the support for vertical graphic card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.

Thermaltake TT Premium PCI-E 3.0 Extender (Optional) Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.

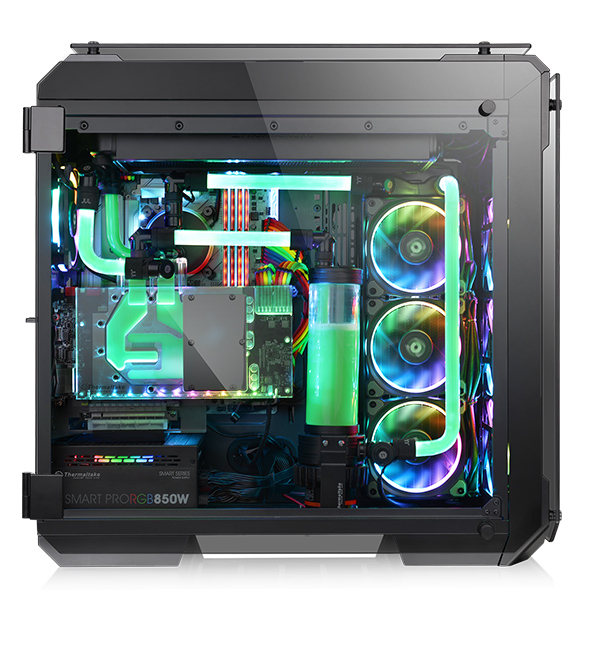

AIO/DIY Liquid Cooling Capable



The View 71 TG RGB Edition features its roomy installation space for advanced AIO/DIY liquid cooling components. The case is natively supported for all types of AIO liquid cooling solutions. The case has the capability to house up to triple 420mm DIY liquid cooling radiator fitment and up to 360mm AIO liquid coolers. Most importantly, the case design is optimized for providing users a quick way to access the drain valve without having to turn around the entire PC when evacuating coolant from the loop.

Vertical Radiator View (VRV)

Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.

Advanced Ventilation

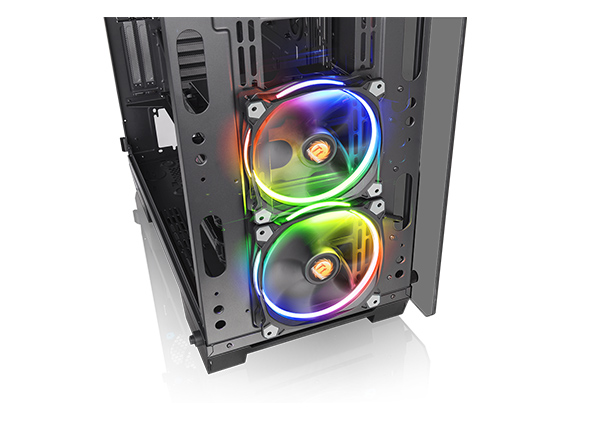

With wide top-to-bottom side ventilation grills, the View 71 TG RGB Edition maximizes airflow with three built-in 140mm Riing RGB fans. Including options for up to three 120mm or two 140mm front fans, combined with two bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with one rear fan and three sectional top mounts to manage proper air flow in and out.

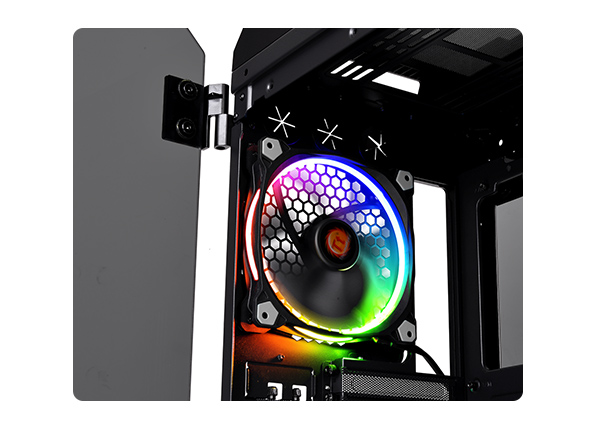

Thermaltake Riing 14 LED RGB A 140mm high-static pressure fan with a patented 256 colors LED ring.

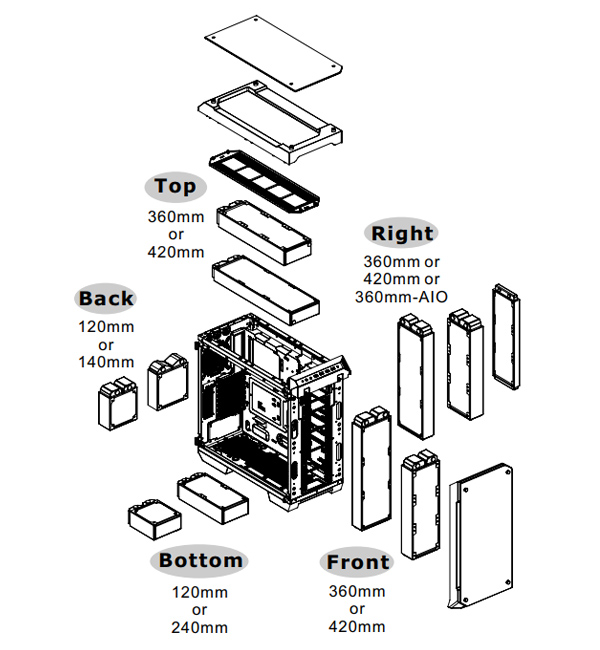

View 71 TG RGB Edition Radiator Supporting List

Radiator Compatibility List

120mm

240mm

360mm

280mm

360mm

420mm

Front

*

*

*

*

*

*

Top

*

*

*

*

*

*

Rear

*

*

Right

*

*

*

*

*

*

Bottom

*

*

All-in-One Compatibility List

(Water 3.0 Series and Floe Riing RGB Series)

120mm

240mm

360mm

280mm

360mm

Front

Top

*

*

*

*

*

Rear

*

*

Right

*

*

*

*

*

Bottom

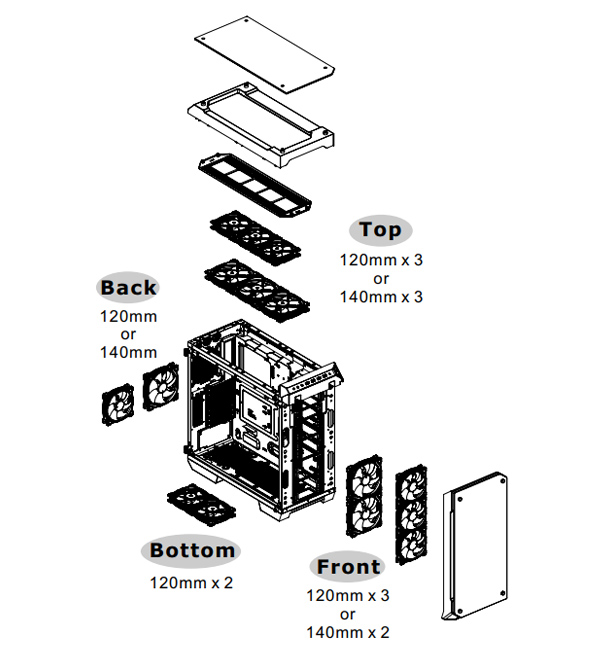

View 71 TG RGB Edition Fan Supporting List

Fan Compatibility List

120mm

140mm

200mm

Front

3

2

Top

3

3

Rear

1

1

Bottom

2

Thermaltake Compatible Fan

120mm

140mm

200mm

Pure Fan Series

*

*

Luna Fan Series

*

*

Riing Fan Series

*

*

Specifications

P/N

CA-1I7-00F1WN-01

Case Type

Full Tower

Dimension (H x W x D)

592 x 274 x 577 mm

(23.3 x 10.8 x 22.7 inch)

Net Weight

18.9 kg / 41.66 lb

Side Panel

5mm Tempered Glass x 4

(Left & Right & Front & Top)

Color

Exterior & Interior

Black

Material

SPCC

Cooling System

Rear (exhaust)

140 x 140 x 25 mm Riing RGB fan

(1400rpm, 28dBA)

Front (intake)

140 x 140 x 25 mm Riing RGB fan

(1400rpm, 28dBA) x2

Drive Bays

Accessible

2.5 x 4 or 3.5x4 (HDD Rack)

Hidden

2.5x 6 or 3.5 x 3

Expansion Slots

8+2

Motherboards

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX)

I/O Port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front

3 x 120mm , 2 x 140mm

Top

3 x 120mm , 3 x 140mm

Rear

1 x 120mm, 1 x 140mm

Bottom

2 x 120mm

Radiator Support

Front:

1 x 360mm , 1 x 420mm

Top

1 x 360mm , 1 x 420mm

Rear

1 x 120mm, 1 x 140mm

Right

1 x 360mm, 1 x 420mm

Bottom

1 x 240mm

Clearance

CPU cooler height limitation

190mm

VGA length limitation

310mm(With HDD Rack)

410mm(Without HDD Rack)

PSU length limitation

220mm (Without Bottom Fan)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
