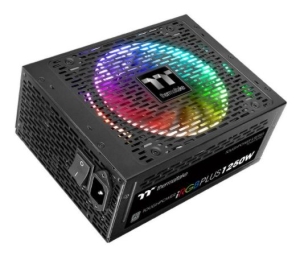

Thermaltake 1250W Toughpower iRGB PLUS Titanium PSU - ATX12V/V2.31,
80PLUS Gold - TT Premium Edition
The Thermaltake Toughpower iRGB PLUS 1250W Titanium is the worlds first PSU
pre-installed with a patented 16.8 million colors RGB fan that incorporate
various high-tech components, leading technology and eco-friendly commendations.
Featuring 80 PLUS Titanium certification with individually sleeved cable and
flat cable, Toughpower iRGB PLUS Titanium Series adopts the highest quality
components and fully modular design that always accommodate any mainstream build
under any circumstance.
The combination of Toughpower iRGB PLUS Titanium and three intelligent
platforms DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and
DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but
also save the energy, reduce CO2 emission, and eventually protect the Earth.

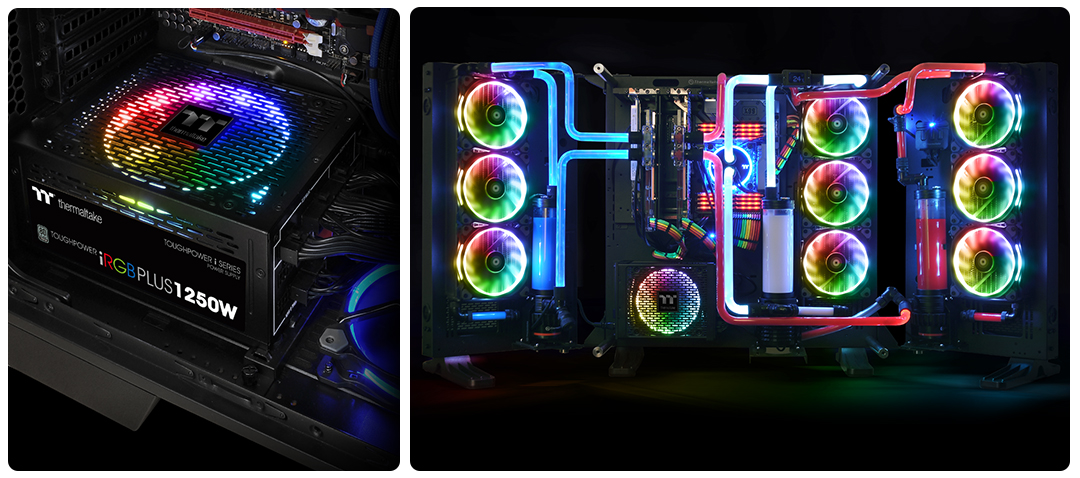

Shimmering Your Build From Color to Color
Toughpower iRGB PLUS Series is the best idea for users to go with when they
are looking for an RGB PSU with remarkable functionality and aesthetics in all
cases.

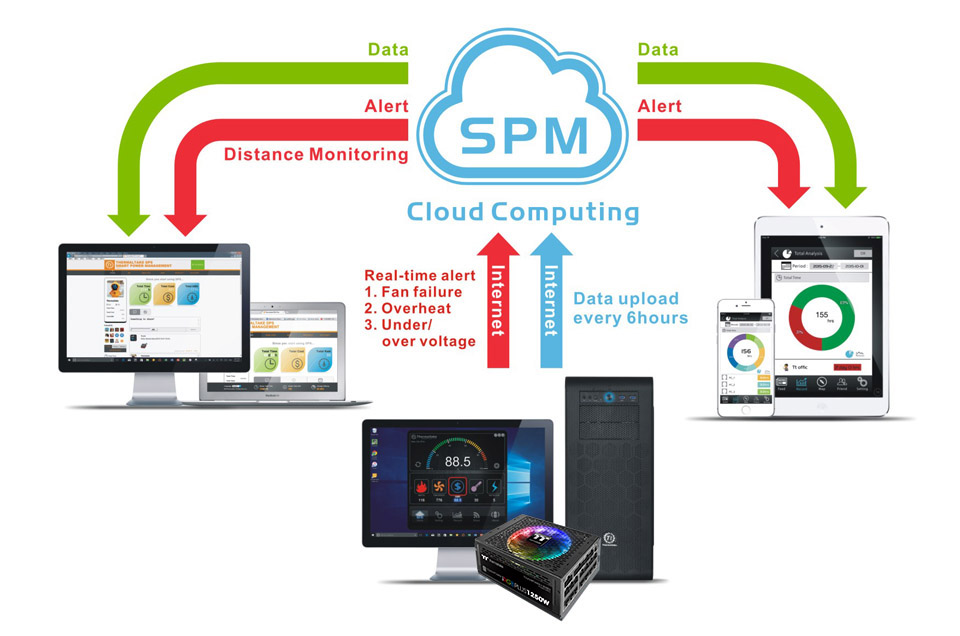

Smart Power Management Service Architecture
Patented 16.8 Million Colors Riing PLUS 14 RGB Fan
The first iRGB PSU series introduced by Thermaltake install with a patented
circular16.8 million multi-colored 140mm fan. Users can freely adjust fan speed
and customize the lighting effects with DPS G PC App.
- Taiwan Patent: 105218791
- US Patent Applied
- China Patent Applied

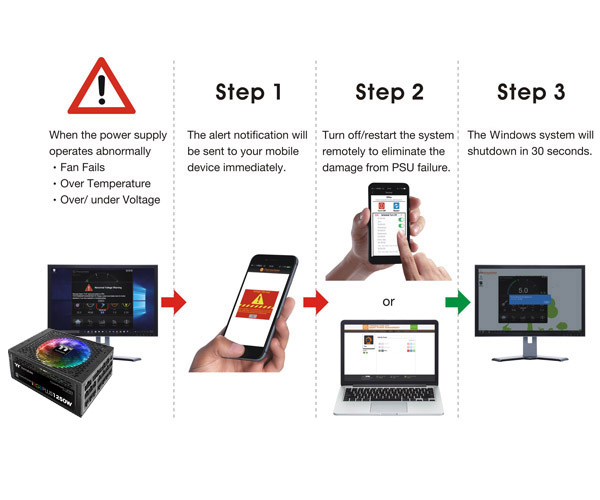

Security Protection Warning Alert & PC Off Remote
Control
The SPM platform provides three alert functions: fan failure, over
temperature (over 140/60), and abnormal voltage level (over/under 5% of normal
level) warning alert. That will help users to reduce the possibility of
overheating your internal components and burning the PC. When the abnormal
activities occur, the warning message will be pushed to the mobile devices and
email. The SPM platform allows users to turn off the computer remotely via
mobile app when users receive the warning message.

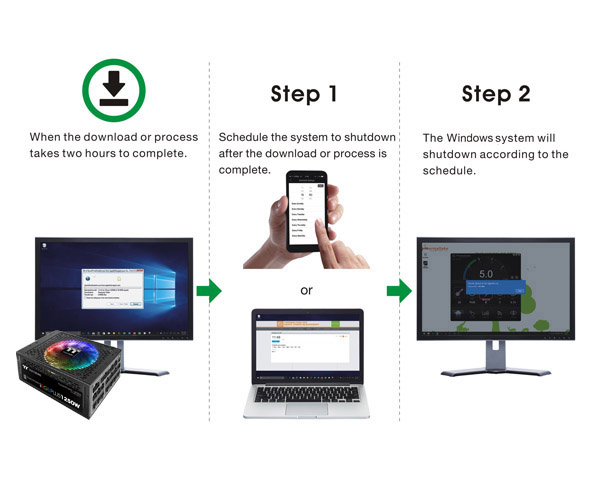

Security Protection Schedule Shutdown
The Smart Power Management platform allows users to schedule the system to
shutdown remotely through mobile App or cloud management. To save the energy and
electricity cost, users could arrange the schedule to shutdown the system when
the process is complete.

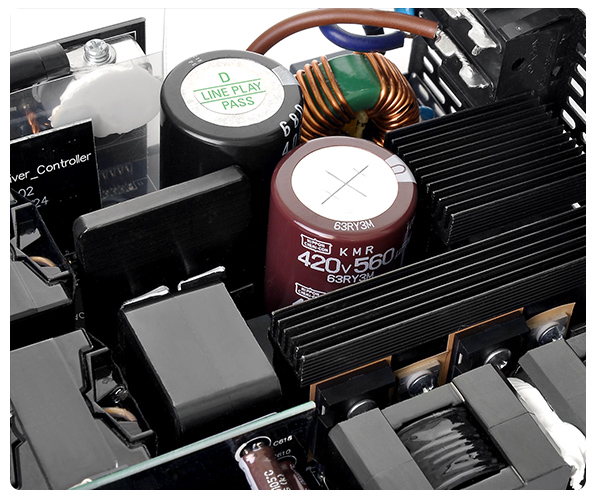

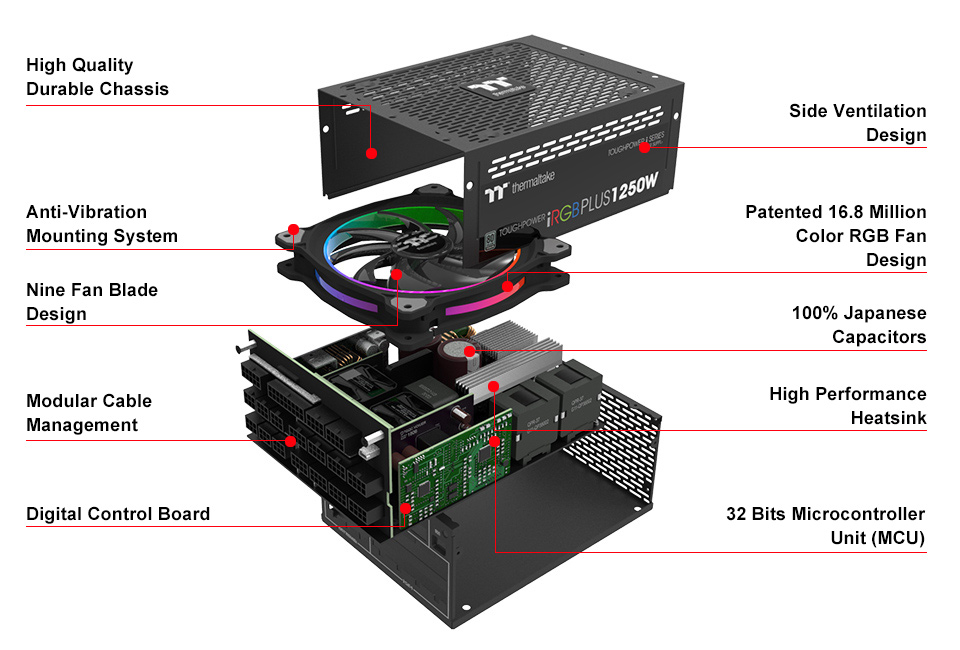

100% High Quality Japanese Capacitors
The Toughpower iRGB PLUS 1250W Titanium features 100% high quality Japanese
brand capacitors, which greatly improves the durability and offers the highest
stability and reliability.

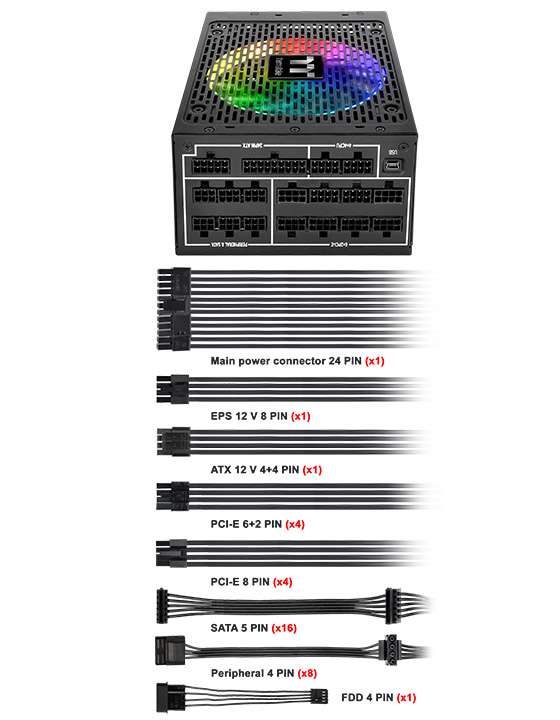

Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering
the system at an advantageous voltage. Individually sleeved cable and flat cable
can make cable management easier, reduce clutter and increase airflow inside the
chassis.

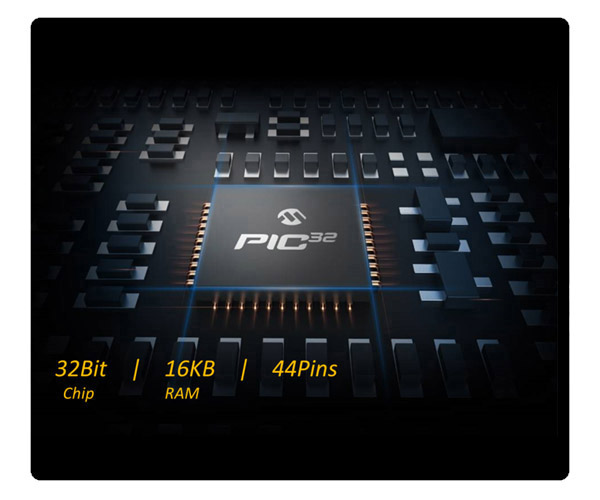

Core Component: MCU
Toughpower iRGB PLUS 1250W Titanium Series comes with a 32Bit Microcontroller
Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a
single integrated circuit containing a processor core, memory, and programmable
input/output peripherals. MCU can digitally control devices and processes, such
as automobile engine control systems and office machines.

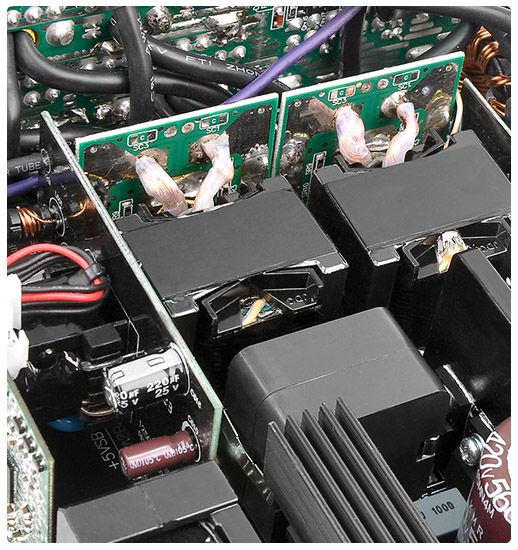

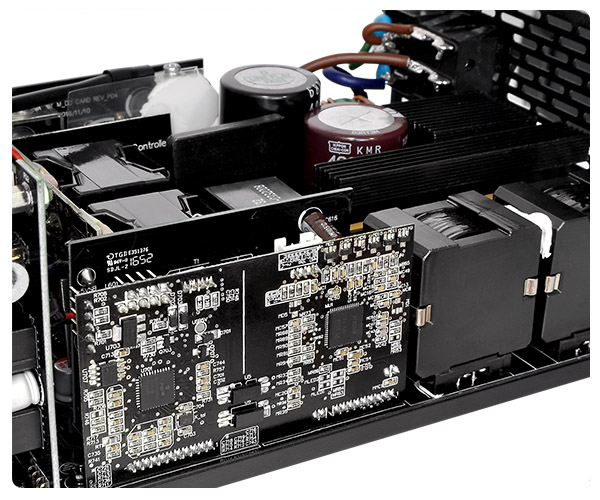

Digital Control Board
Digital power supplies sport high-efficiency switching transistors that
perform only necessary steps and waste less energy given off as heat. In short,
digital power supplies do not dissipate power, which creates waste, and
incorporate smaller, lighter transistors. Using smaller parts that work more
efficiently enables Thermaltake to craft smaller and lighter power supplies,
typically one of the bulkiest components in any PC.
Massive and Dedicated +12V Output
Toughpower iRGB PLUS 1250W Titanium is equipped with a powerful single +12V
rail, please see the output specification below:
|
AC INPUT |
Input Voltage: 100V - 240V |
|
Input Current: 15A |
|
Frequency: 47Hz - 63Hz |
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
Max Output Current |
20A |
20A |
104A |
0.3A |
3A |
|
Max Output Power |
100W |
1248W |
3.6W |
15W |
|
Continuous Power |
1250W |
80 PLUS Titanium-Certified and Kaby
lake-Ready
Toughpower iRGB 1250W Titanium Power Supply with DPS G software delivers
up to 94% efficiency under real-world load conditions, promising the lowest
power losses. Additionally, Toughpower iRGB PLUS 1250W Titanium has been
optimized to work with Intels new, seventh-generatio Kaby lake processors to
achieve maximum energy savings.
TT Power VR Ready
Toughpower i Series power supplies offer stable and sufficient output
voltage for multiple VGA cards and high Capability of different VGA cards for VR
system.

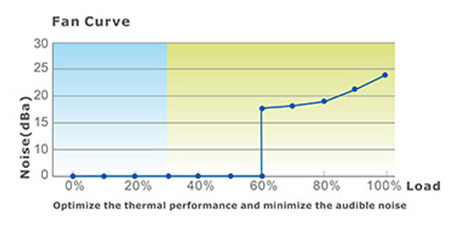

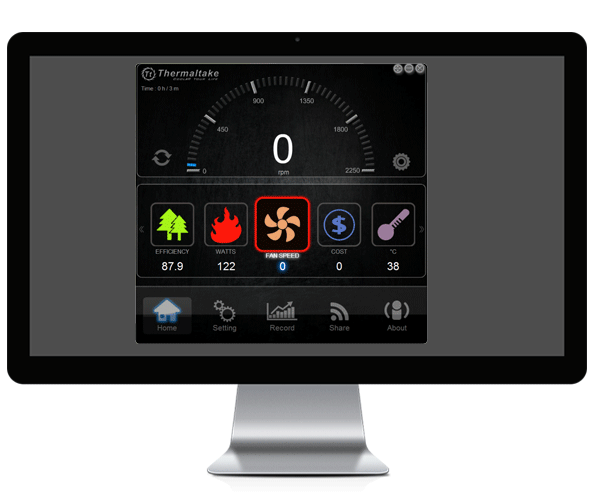

DPS G PC APP 2.0: Smart Zero Fan
Aside from the silent and performance mode, DPS G PC APP 2.0 comes with
the new Zero Fan mode to minimize the audible noise of your PC. The fan will be
turned on around 60% of rated load to optimize the thermal performance and
minimize the audible noise.

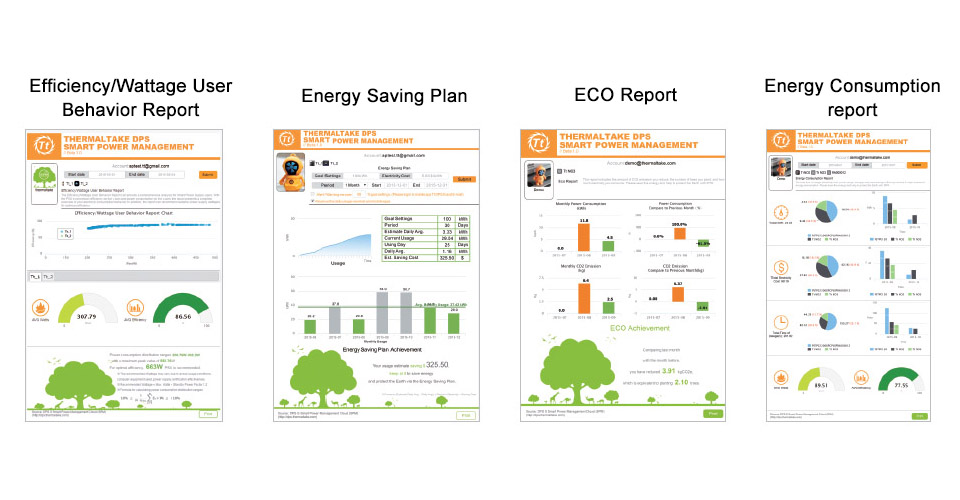

Smart Power Management Reports
Users can access the ECO report and the Energy Consumption Report to
understand the detailed information about CO2 emission and energy consumption by
comparing current data with the previous 3 months. Users could simply save the
money by setting the goal of how much kWh they are going to consume within a
specific period through Energy Saving Plan. Users could also decide whether to
receive the notification via email and mobile app in order to successfully
achieve the goal of saving more money and energy. In addition, Power Usage
Behavior report can provide a comprehensive analysis for Smart Power Supply
users. With the PSUs conversion efficiency on the y-axis and power consumption
on the x-axis, the report presents a complete overview of your electricity
consumption behavior. In addition, the report can recommend suitable power
supply wattages for optimum efficiency.
Smart Power Management Features
|
|
|
|
|
|
|
|
|
|
|
DPS G PC App |
Cloud Management |
DPS G Mobile App |
|
|
Monitor PSU in real-time |
ECO report |
Data analysis |
|
|
Fan speed control |
Energy consumption report |
Warning alert |
|
|
RGB LED control |
Energy saving plan |
PC off remote control |
|
|
Collect data |
Efficiency/wattage user behavior report |
|
|
Warning alert |
PC Off Remote Control |
|

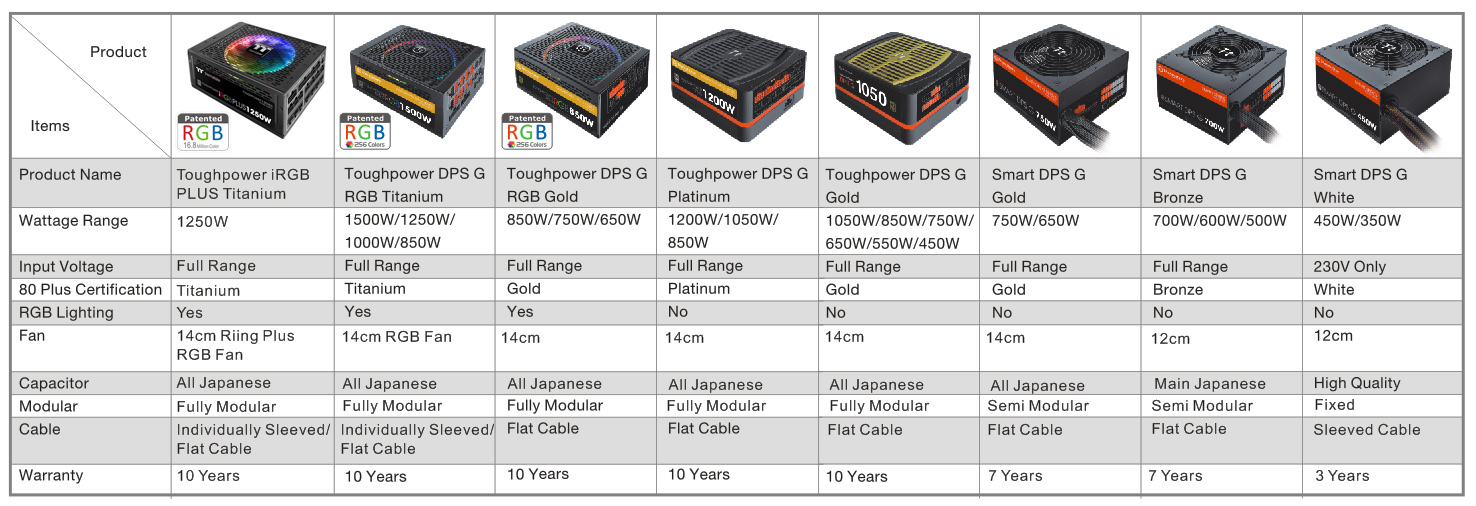

SPM Supported Power Supply Collection
Specifications
|
P/N |
PS-TPI-1250DPCTXX-T |
|
Short P/N |
TPI-1250D-T |
|
Model |
TPG-1250DH3FCT |
|
Type |
Intel ATX 12V 2.31 & SSI EPS 12V 2.92 |
|
Max. Output Capacity |
1250W |
|
Peak Output Capacity |
1500W |
|
Color |
Black |
|
Dimension (W/H/D) |
150mm(W) x 86mm(H) x 200mm(D) |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power Good Signal |
100-500 msec |
|
Hold Up Time |
> 16msec at 100% of full load (115Vac/ 230Vac
input) |
|
Input current |
15A |
|
Input Frequency Range |
47Hz - 63Hz |
|
Input Voltage |
100V - 240V |
|
Operating Temperature |
0 to +50 |
|
Operating Humidity |
20% to 90%,non-condensing |
|
Storage Temperature |
-20 to +70 |
|
Storage Humidity |
5% to 95%, non-condensing |
|
Cooling System |
14cm Riing PLUS Fan |
|
Efficiency |
MEET 80 Plus Titanium at 115Vac input. |
|
MTBF |
120,000 hrs minimum |
|
Safety Approval |
CE/FCC/UL/ TUV/EAC |
|
Protection |
OPP, OVP, UVP, OCP, OTP, SCP |
|
PCI-E 6+2pin/ 8pin |
8 |
