All stock codes associated to this product
IDE2SAT2, 2475266, 65030852258

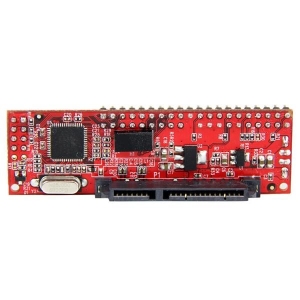

StarTech 40-Pin IDE to SATA Converter
IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA
HDD/SSD/ODD Converter
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE
motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA
I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost
effective solution that allows you to add newer SATA drives, and keep your
existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap
between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The
IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add
Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free
lifetime technical support.
The StarTech.com Advantage
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive)
support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical
support
Specifications
| Hardware |
|
Chipset ID |
Marvell - 88SA8052 |
|
Compatible Drive Types |
SATA |
|
Drive Size |
2.5in & 3.5in |
|
Interface |
IDE |
|
Number of Drives |
1 |
| Performance |
|
Maximum Data Transfer Rate |
133MB/sec |
|
RAID |
No |
| Connector(s) |
|
Connector Type(s) |
1 - IDE (40 Pin, EIDE/PATA) |
|
|
1 - SATA Data & Power Combo (7+15 pin) |
|
|
1 - SP4 (4 pin, Small Drive Power) |
| Software |
|
OS Compatibility |
OS independent; No software or drivers required |
| Special Notes / Requirements |
|
System and Cable Requirements |
An IDE controller and ATA cable (not included). |
| Environmental |
|
Humidity |
15~90% RH |
|
Operating Temperature |
5C to 50C (40F to 122F) |
|
Storage Temperature |
-25C to 80C (-13F to 176F) |
| Physical Characteristics |
|
Enclosure Type |
Steel and Plastic |
|
Product Height |
0.9 in [23 mm] |
|
Product Length |
3 in [75.5 mm] |
|
Product Weight |
0.5 oz [15 g] |
|
Product Width |
0.8 in [20 mm] |
| Packaging Information |
|
Shipping (Package) Weight |
2.8 oz [80 g] |
| What's in the Box |
|
Included in Package |
1 - IDE to SATA adapter |
|
|
1 - LP4 Molex to SP4 Power Cable |
|
|
1 - Instruction Manual
|
