All stock codes associated to this product
C6ASFTSL305BU, C6ASFTSL305-BU, 9352399000026

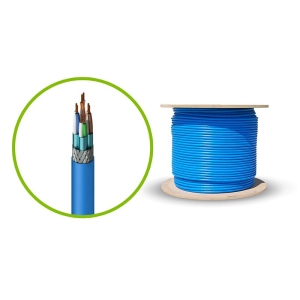

Serveredge C6ASFTSL305-BU 305m Network Cable - SFTP,
Solid, LSZH 23AWG - Blue
Features
- ISO/IEC 11801 Ed. 2.2 (Class EA)
- IEC 61156-5:2009 (Category 6A)
- ANSI/TIA-568-C.2 (Category 6A)
- Supports all applications designed to operate over Category 6A or lower
rated systems
- Sequential measurement markings on jacket
- Come in a variety of colours
- Easy & Effective to use pull box packaging
- Supports up to 10GBASE-T applications
- 25 Year Warranty
Overview
Serveredge CAT6A 305m Network Cable - SFTP, Solid, LSZH 23AWG -
BLUE
Serveredge CAT6A 305m Network Cable - SFTP, Solid, LSZH 23AWG can be used to
connect a variety of devices in a high-speed network. The cable has braided
shield going around the 4 pairs with each pair being shielded by an aluminium
magnesium alloy foil reducing NearEnd Crosstalk (NEXT) and increasing
performance. Protecting the cable is an outer jacket made of LSZH (low smoke
zero halogen). It’s packaged on a wooden reel with sequential measurement
markings on the jacket. The cable is made from the highest quality copper to
maximize performance.
Guarantee/Warranty
Serveredge products are manufactured at the highest standards using highest
quality materials at an affordable price. Serveredge CAT6A UTP cable comes with
a 25-year Warranty for that extra piece of mind.
Electrical Performance at 20c
|
Low frequency and D.C |
|
Item |
Parameter |
Note |
|
Conductor resistance |
≤9.38Ω/100m |
|
|
Insulation resistance |
≥5000MΩKm(DC500V Charged 1Min) |
|
Voltage endurance |
DC 1000V/min without breakdown |
|
Mutual capacitance |
≤5.6nF/100m |
|
Core-core resistance unbalanced |
≤5.0% |
|
High frequency performance |
|
Freq |
Attenuation
≤ dB/100m |
RL
≥ dB/100m |
Next
≥DB/100m |
PS
- Next ≥dB/100m |
ACRF
≥dB/100m |
PSACRF
≥dB>100m |
Remark |
|
1
MHz |
2.1 |
20 |
74.3 |
72.3 |
67.8 |
64.8 |
100m cable tested unwind in the air |
|
4
MHz |
3.8 |
23 |
65.3 |
63.3 |
55.8 |
52.8 |
|
8
MHz |
5.3 |
24.5 |
60.8 |
58.8 |
49.7 |
46.7 |
|
10
MHz |
5.9 |
25 |
59.3 |
57.3 |
47.8 |
44.8 |
|
16
MHz |
7.5 |
25 |
56.2 |
54.2 |
43.7 |
40.7 |
|
20
MHz |
8.4 |
25 |
54.8 |
52.8 |
41.8 |
38.8 |
|
25
MHz |
9.4 |
24.3 |
53.3 |
51.3 |
39.8 |
36.8 |
|
31.25
MHz |
10.5 |
23.6 |
51.9 |
49.9 |
37.9 |
34.9 |
|
62.5
MHz |
15 |
21.5 |
47.4 |
45.4 |
31.9 |
28.9 |
|
100
MHz |
19.1 |
20.1 |
44.3 |
42.3 |
27.8 |
24.8 |
|
200
MHz |
27.6 |
18 |
39.8 |
37.8 |
21.8 |
18.8 |
|
250
MHz |
31.1 |
17.3 |
38.3 |
36.3 |
19.8 |
16.8 |
|
300
MHz |
34.3 |
16.8 |
37.1 |
35.1 |
18.3 |
15.3 |
|
400
MHz |
40.1 |
15.9 |
35.3 |
33.3 |
15.8 |
12.8 |
|
500
MHz |
45.3 |
15.2 |
33.8 |
31.8 |
13.8 |
10.8 |
Specifications
|
Sheath
material |
Low
smoke zero halogen (LSZH) |
|
Wall
thickness of sheath |
0.50mm
|
|
Rip
cord under sheath |
Yes
|
|
Insulation
material |
PE-Foam/Skin-PE
|
|
Insulation
thickness |
0.385mm
|
|
Conductor
material |
Soft
annealed bare copper wire |
|
Cable
construction |
Each
twisted pair is individually shielded with a metal foil
|
|
Braided
Material |
Aluminum
magnesium alloy wire |
|
Braided
shielding wave density |
>30%
|
|
Cable
colours |
Blue |
|
Twisted
pair lay length |
≤40mm
|
