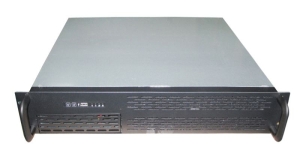

TGC TGC-23400-4 400mm Depth Rackmoung Server Chassis - NO PSU, 2U
Rackmount
TGC is an up and coming brand that has focused on the production of server
and desktop hardware and accessories. Its server chassis and rack range focus on
designs that ensure proper ventilation and durability. The TGC Depth Cheap 2U
Rackmount Server Chassis is designed to be fully functional and durable at a low
cost.
Sporting one 5.25 bay, four 3.5 bays and two fans while supporting both
micro-ATX and ITX motherboards, this chassis is ready to house some powerful
server hardware.
- Has one 5.25" drive bay and four 3.5 " drive bays for a maximum of 5 drive
bays.
- Support both Micro-ATX (9.6" X 9.6") and ITX (6.7" X 6.7") motherboards.
- Design meets the high dimension, spacing and mounting specifications of
EIARS-310C.
- Two 80mm front ball bearing fans for improved ventilation.
- Front accessible USB port for easy access.
Specifications
- Drive Bay: Supports up to four 3.5" drives and one 5.25" drive
- Cooling Fan: 2 x 80mm front ball bearing fans
- Switch:Power ON/OFF x 1, System reset x 1
- Indicator: Power ON/OFF x 1, HDD x 1, NETWORK X 2
- Connector: One front accessible USB port
- Motherboard Compatibility: Support Micro-ATX (9.6" X 9.6"), ITX (6.7" X
6.7")
- Power Supply Options: Standard ATX power supply
- Dimensions (W x D x H): 16.9" x 15.25" x 3.5" (430mm x 387.3mm x 88mm)
- Packing: Single box
- Weight: 6.0 kg (NET)/ 6.5 kg (GROSS)
- Environment Temperature: 0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F
(Non-Operating)
- Relative Humidity: 5% to 95%,non-condensing
- Vibration (5-500 Hz): 1 Grms (Operating), 2 G (Non-Operating)
- Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G
(Non-Operating)
