ATEN VE901 DisplayPort HDBaseT-Lite Extender
  • Supports up to 4K@40m; 1080p@70m

IMG 1 of 1
Our Price:
$564.85
or quickly purchase this product
Backorder
Part Number:
431426
(?) Brand:
ATEN
Manuf No:
VE901-AT-U
VE901ATU
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
24/8/2018
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VE901ATU, VE901-AT-U, KVAVE901, KVA-VE-901, 4719264645204

Aten VE901 DisplayPort HDBaseT-Lite Extender

Features

  • HDBaseT Connectivity - extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable5
  • DisplayPort v1.1*; HDCP 1.4 compliant
  • Superior video quality - 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
  • Featuring 3.3V / 500mA power output for powering auxiliary devices
  • Plug-and-play
  • Rack-Mountable
  • Note:DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.

Package Contents

  • 1x VE901T DisplayPort HDBaseT-Lite Transmitter
  • 1x VE901R DisplayPort HDBaseT-Lite Receiver
  • 2x 0AD6-1F05-26EG Power Adapters
  • 1x User Instructions

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.

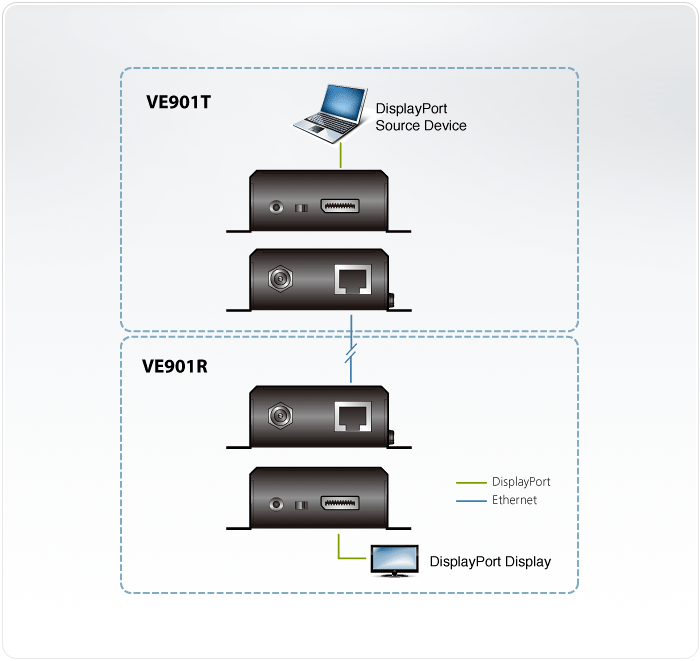

Diagram

Specifications

Video Input

VE901R

VE901T

Interfaces

N/A

1 x DisplayPort Female (Black)

Impedance

N/A

100 

Max. Distance

N/A

1.5 m

Video Output

Interfaces

1 x DisplayPort Female (Black)

N/A

Impedance

100 

N/A

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

297 MHz

297 MHz

Compliance

DisplayPort (Deep Color, 4K)

DisplayPort (Deep Color, 4K)

HDCP Compatible

HDCP Compatible

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);

1080p@60m (Cat 5e/6) / 70m (Cat 6a)

1080p@60m (Cat 5e/6) / 70m (Cat 6a)

*4K supported:

*4K supported:

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x DisplayPort Female (Black)

Output

1 x DisplayPort Female (Black)

N/A

Connectors

Power

1 x DC Jack (Black) with locking

1 x DC Jack (Black) with locking

Power Consumption

DC5V:5.72W

DC5V:2.84W

Environmental

Operating Temperature

0-40°C

0-40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.27 kg ( 0.59 lb )

0.24 kg ( 0.53 lb )

Dimensions (L x W x H) with bracket

9.77 x 8.70 x 3.00 cm

9.77 x 8.70 x 3.00 cm

(3.85 x 3.43 x 1.18 in.)

(3.85 x 3.43 x 1.18 in.)

Dimensions (L x W x H) without bracket

9.42 x 6.60 x 2.90 cm

9.42 x 6.60 x 2.90 cm

(3.71 x 2.6 x 1.14 in.)

(3.71 x 2.6 x 1.14 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
