All stock codes associated to this product
CA1I900F1WN00, CA-1I9-00F1WN-00, II34475

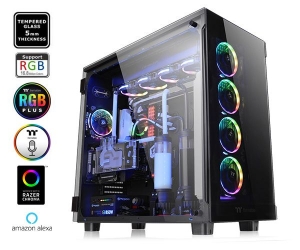

Thermaltake CA-1I9-00F1WN-00 View 91 Tempered Glass RGB
Edition Super Tower Chassis
Overview
Thermaltake adds the new Thermaltake View 91 Tempered Glass RGB Edition Super
Tower Chassis to its TT Premium lineup. It’s a 16.8 million-color RGB-imbued
XL-ATX tower featuring three 5mm thick tempered glass panels (front and both
sides) and 4 preinstalled Riing Plus 14 RGB fans (three at the front and one at
the rear). Comes with a USB type-C receptacle on the top panel plus dual liquid
cooling capabilities to offer extraordinary LCS flexibility.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that
combines the most advanced addressable LED lighting with Thermaltake’s patented
TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited
possibilities for playing with colors, synchronizing lights to games, music, CPU
temperatures or other TT RGB PLUS products, including case fans, CPU/VGA
waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals. The patented
software allows users to change the light modes, colors, speeds, brightness, fan
speeds, and even supports AI voice control in iOS and Android devices.
Patented TT RGB PLUS Software & App
Monitor the fan performance, adjust the fan speeds, and customize the
lighting effects for Thermaltake RGB PLUS series products with the patented TT
RGB PLUS Software and an exclusively designed mobile app. Choose a function from
below and scroll down to read the details.
SyncALL, Say "Hello TT"
Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier, faster way to set lights for your
systems. You can ask it to turn the lights on or off, switch lights modes, dim
the lights, change light colors, or adjust lights speeds or fan speeds. Choose a
video from below to see how it works.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer
Chroma ecosystem. Users who have installed both the TT RGB PLUS Software and
Razer Synapse 3 can experience synchronized gaming and RGB lighting effects on
their TT RGB PLUS liquid cooling system and gaming gear! From cooldown timers,
health bars, and flashy ultimate indicators, to subtle ambient lighting that
sets the perfect mood for each game, Razer Chroma provides an experience that
transcends the screen and into your full setup, for a truly immersive
experience.
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service,
allowing you to control the lights or fan speeds by talking to the Alexa-enabled
device. With the support of Amazon Alexa, TT RGB PLUS products also offer an
additional visual cue for checking current weather condition in your locaiton or
anywhere in the world. All you have to do is simply starting the sentence with
“Alexa, tell Thermaltake”, then the lighting color will correspond to the
weather condition in the location.
4 Built-in 140mm Riing PLUS LED RGB Fans
Preinstalled with 4 Riing PLUS 14 LED RGB fans (three front fans and one rear
fan) to deliver a better RGB experience and improve thermal efficiency. Offering
high-static pressure, patented 16.8 million colors LED ring, 12 single
controllable LEDs, compression blades and hydraulic bearing, each fan is
digitally PWM controlled through the patented TT RGB PLUS Software (Taiwan
Patent: 105216989). The software also allows for fan performance monitoring, fan
speed adjustment and lighting effects control.
Three 5mm Thick Tempered Glass Panels with Swing Door Design
Three-panel 5mm thick tempered glass (front and both sides) gives the case a
sleek look and guarantees the durability of the window while ensuring the
ultimate internal component visibility. Both sides are hinged and swing-open for
easy and full access to your build.
USB type-C Port
The front mounted USB 3.1 Type-C port allows for extra data transfer speed up
to 10Gbps and power delivery potential, from video/audio to fast disks
/quick-charging batteries. With USB 3.1 Type-C the USB cable is reversible, so
there is no more “up” or “down” fumbling around, and users can plug it in either
way.
Make the Move to Modular Design
Freely build your system from the ground up with modular panels, racks,
brackets, and pre-design mounting arrays. No more unreachable screw corners or
gaps to enjoy even more space for your precious parts during installation or
maintenance.
Quick-Release Fan Mount Bracket
The fan mount brackets feature a quick-release bar on each side for instant
removal and reattachment of the fan with minimal movement, supporting up to
three 200mm fans.
Magnetic Dust Filter
To smooth out your gaming experience and extend the life of your component,
there are removable magnetic dust filters on the top, front and bottom sides to
ensure clean air intake and efficient heat dissipation.
Riser GPU Support Bracket
Specially designed for dual GPU placement options, the View 91 TG RGB Edition
has the support for vertical graphic card layout with dual PCI-E slots design.
Integrated riser GPU support bracket not only prevents the graphic card from
sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range
of GPU solutions with ultra-excellent quality. Features like, extreme high-speed
cable with highly-routable design, EMI shielding with conducting polymer are
crafted for meeting the most demanding system. Available in 300mm, 600mm and
1000mm length.
Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious
view of custom loop or all-in-one radiator applications with vertical radiator
viewing. Supporting proper placement for 120mm and 140mm radiator applications
up to 480mm in length, gain more compatibility when pairing up both CPU and GPU
cooling solutions. Take on even more with custom loop options for enthusiast
grade cooling, fitment and flow.
Superior Hardware Support
Enables users to build a complete high-end system that supports up to
standard XL-ATX motherboards, CPU coolers up to 200mm in height, VGA lengths up
to 600mm without HDD rack, and PSU sizes up to 220mm in length even with two
140mm bottom fans. With the included combo 3.5”/2.5” tool-free drive bays, the
hassles of installation/removal are minimized, further, the 3.5” and 2.5”
storage drives are freely interchanged, secured and stored with ease.
Outstanding Ventilation
Excellent airflow capabilities are permitted thanks to the four built-in
140mm Riing PLUS LED RGB fans (three at the front and one on the rear). To
maximize cooling performance, users are able to mount the fan anywhere inside:
up to (2) large 200mm fans on the top panel plus (3) 140mm fans at the bottom,
while there is still room for up to (6) 200mm fans inside the right panel.
Workstation Concept
Features roomy installation space for advanced AIO/DIY liquid cooling
components. Natively supports all types of AIO liquid cooling solutions and the
capability to house up to triple 480mm DIY liquid cooling radiator fitment and
up to 360mm AIO liquid coolers. Compatible with the latest Intel processors and
AMD/Nvidia graphics cards, it is able to hold data or host a number of different
features between computers so as to become another workstation for technical or
scientific purposes.
Specifications
P/N |
CA-1I9-00F1WN-00 |
Case
Type |
Super
Tower |
Dimension
(H x W x D) |
691
x 344 x 645 mm |
|
(27.2
x 13.5 x 25.4 inch) |
Net
Weight |
26.8
kg / 59.08 lb |
Side
Panel |
5mm
Tempered Glass x 3 (Left & Right & Front) |
Color |
Exterior
& Interior : Black |
Material |
SPCC |
Cooling
System |
|
Rear
(exhaust) : |
140
x 140 x 25 mm Riing Plus RGB fan |
|
(500-1400rpm,
27.2dBA) |
Front
(intake) : |
140
x 140 x 25 mm Riing Plus RGB fan |
|
(500-1400rpm,
27.2dBA) x3 |
Drive
Bays |
|
Accessible |
12
x 3.5’’ or 2.5’’ (HDD Cage) |
Hidden |
Expansion
Slots |
10
+ 2 |
Motherboards |
6.7”
x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,
|
|
12”
x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) |
I/O
Port |
USB
3.0 x 4, Type-C x 1,HD Audio x 1 |
PSU |
Standard
PS2 PSU (optional) |
LCS
Upgradable |
Supports
1/2”3/8”1/4” water tube |
Fan
Support |
|
Front:
|
4
x 120mm , 3 x 140mm |
Top:
|
4
x 120mm , 3 x 140mm , 2 x 200mm |
Rear:
|
1
x 120mm , 1 x 140mm |
Bottom:
|
3
x 120mm , 3 x 140mm |
Right
Side(Behind M/B Tray): |
8
x 120mm , 8 x 140mm , 6 x 200mm |
Radiator
Support |
|
Front:
|
1
x 480mm , 1 x 420mm |
Top:
|
1
x 480mm , 1 x 420mm , 1 x 400mm |
Rear:
|
1
x 120mm , 1 x 140mm |
Bottom:
|
1
x 280mm |
Right
Side(In front of M/B Tray): |
1
x 480mm, 1 x 420mm |
Clearance |
|
CPU
cooler height limitation: |
200mm |
VGA
length limitation: |
470mm(with
HDD rack) |
|
600mm(without
HDD rack) |
PSU
length limitation: |
180mm
(With Three Bottom Fans) |
|
220mm
(With Two Bottom
Fans) |
