Aten UE3310 10m USB3.1 Gen1 Extender
Cable
Overview
The ATEN UE3310 USB3.1 Gen1 Extender Cable allows users to extend the
distance between the computer and USB devices up to 10 m. The UE3310 provides a
reliable, high performance data transmission that utilizes USB 3.1 Gen1 data
bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard.
Its plug and play and no additional software installation required, easy to
deploy and operate on the fields.
The UE3310 provides a quick and high quality cost effective solution for all
kinds of professional environments like: hospitals, factories, or business
facilities.
Package Contents
- 1x UE3310 USB3.1 Gen1 Extender Cable
- 1x AC Power Adapter
- 1x USB Extension Cable
Featuires
- Supports USB 3.1 Gen1 Specification (5 Gbps)
- Ultra slim design and unique locker head design
- Daisy-chainable, maximum distance of up to 50 m
- Multiplatform support – Windows and Mac
- Additional power adapter included

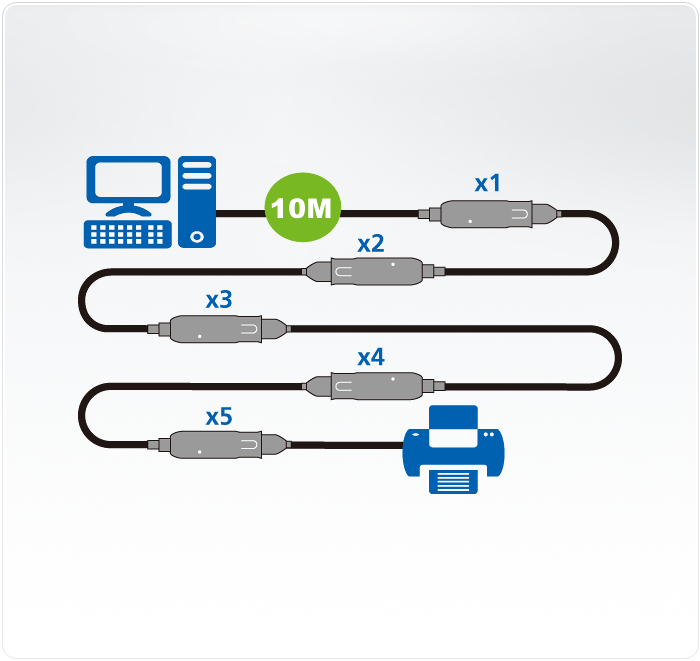

Diagram
Specifications
| Connectors |
| USB Port |
1 x USB3.1 Gen1 Type A
Male |
| Downstream |
1 x USB3.1 Gen1 Type A
Female |
| USB Specification |
USB3.1 Gen1/ 2.0 / 1.1 for
Super / High / Full or Low speed |
| Cable Length |
10 m |
| Data Rate |
Up to 5 Gbps |
| Power |
| Consumption |
5V, 4.5W |
| Environmental |
| Operating
Temperature |
040 DegreeC |
| Storage Temperature |
-2060 DegreeC |
| Humidity |
0-80% RH,
Non-condensing |
| Physical
Properties |
| Housing |
Plastic |
| Weight |
TBD |
| Dimensions (L x W x
H) |
TBD |
| Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
