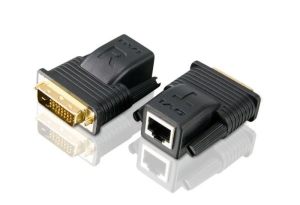

Aten VE066-AT Mini Cat 5 DVI Extender (1080p @
15m/1080i @ 20m)
Features
- Extends the distance between DVI source and DVI display
- Uses Cat 5e cable to connect the Transmitter and Receiver units
- Long distance transmission - up to 20 m*
- HDCP 1.1 Compliant
- Supports hot-plugging
- Superior video quality - up to 1920 x 1200
- Compact housing
- Compatible with all ATEN DVI switches and DVI splitters
- Supports LCD Screen, Plasma TV, and projectors
- Perfect for Home entertainment system, Bank, Surveillance system, Outdoors
multimedia display, Airport, Finance institution
- Smart Video Display - Image quality is optimized based on the available
resolution of the output device
- Non-Powered
Overview
The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between
your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6
cable, providing a convenient way to replace heavy and expensive DVI cables.
With hot-plugging support, easily add or remove the VE066 Transmitter connected
to the source or the VE066 Receiver connected to the display without having to
power down the devices. Compatible with all ATEN DVI switches and DVI splitters,
the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to
extend your DVI display.
Package Contents
1x VE066T Mini Cat 5 DVI Extender (Transmitter)
1x VE066R Mini Cat 5 DVI Extender (Receiver)
1x User Instructions

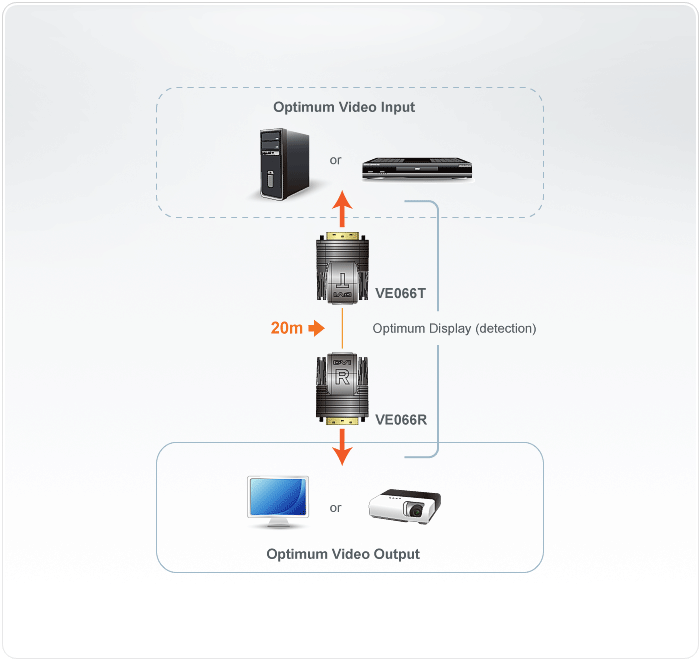

Diagram
Specifications
|
Function |
VE066R |
VE066T |
|
Physical
Properties |
|
Weight |
0.05
kg ( 0.11 lb ) |
0.05
kg ( 0.11 lb ) |
|
Dimensions
(L x W x H) |
5.66
x 4.07 x 2.15 cm |
5.66
x 4.07 x 2.15 cm |
|
(2.23
x 1.6 x 0.85 in.) |
(2.23
x 1.6 x 0.85 in.) |
|
Housing |
Plastic |
Plastic |
|
Carton
Lot |
20
pcs |
20
pcs |
|
Video
Input |
|
Interfaces |
N/A |
1
x DVI-D Male (Gold) |
|
Impedance |
N/A |
100
Ώ |
|
Video
Output |
|
Interfaces |
1
x DVI-D Male (Gold) |
N/A |
|
Impedance |
100
Ώ |
N/A |
|
Video |
|
Max.
Data Rate |
4.95
Gbps (1.65 Gbps Per Lane) |
4.95
Gbps (1.65 Gbps Per Lane) |
|
Max.
Pixel Clock |
165
MHz |
165
MHz |
|
Compliance |
HDCP
Compatible |
HDCP
Compatible |
|
Max.
Resolutions / Distance |
Up
to 1080P@15m; 1080i@20m |
Up
to 1080P@15m; 1080i@20m |
|
Environmental |
|
Operating
Temperature |
0
- 50°C |
0
- 50°C |
|
Storage
Temperature |
-20
- 60°C |
-20
- 60°C |
|
Humidity |
0
- 80% RH, Non-Condensing |
0
- 80% RH, Non-Condensing |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
