Aten UC485-AT USB To RS-422/485 Adapter
Overview
The ATEN UC485 is a high quality industrial adapter cable designed to
instantly add an RS-422/485 port to your PC or laptop via a USB port. The
adapter is powered via the USB connection without needing an external power
supply.
The UC485 adapter lets you use a single USB connection to create
plug-and-play serial transfers without additional cables or complicated device
installations. It lets you connect any RS-485 or RS-422 device to your
computer's USB port, without experiencing computer lock-ups, I/O or driver
problems. It is the ideal solution for connecting industrial devices such as
laboratory machines, measuring equipment, automated systems, monitoring devices,
and many more – where mission-critical applications are required.
Package Contents
- 1x UC485 USB to RS-422/485 Adapter
- 1x Terminal Adapter
- 1x User Instructions
Features
- Converts a USB port to a Legacy RS-422 or RS-485 COM port
- Fast COM Port Transmission – up to 921.6 Kbps
- Package included DB-9 female to terminal block adapter for easy wiring
- Supports Terminal / ECHO mode by mode selector
- Supports Windows Vista / 7 and above, Mac and Linux
- Plug-and-Play – no power supply needed

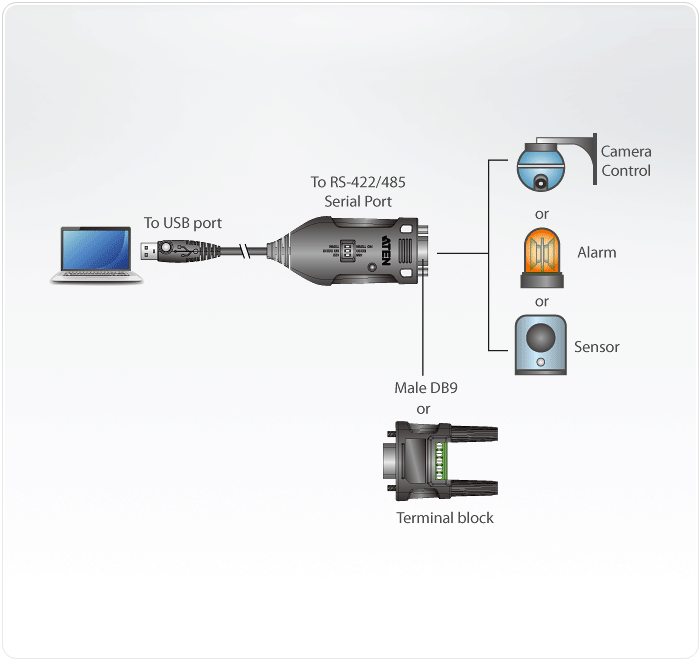

Diagram
Specifications
|
Connectors |
|
|
USB
Port |
1
x USB Type A Male (White) |
|
Serial |
1
x DB-9 Male (Silver) |
|
|
|
|
Data
Rate |
Up
to 921.6Kbps |
|
|
|
|
Cable
Length |
1.2m |
|
|
|
|
LEDs |
Power
Status / RS-422 (Orange), RS-485(Green) |
|
|
|
|
Power
Mode |
Bus
Powered |
|
|
|
|
USB
Specification |
USB
compliant |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0–40˚C |
|
Storage
Temperature |
-20–60˚C |
|
Humidity |
0–80%
RH, Non-condensing |
|
|
|
|
Physical
Properties |
|
|
Housing |
Plastic |
|
Weight |
0.09
kg ( 0.2 lb ) |
|
Dimensions
(L x W x H) |
9.53
x 4.10 x 2.20 cm |
|
|
(3.75
x 1.61 x 0.87 in.) |
|
|
|
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
