All stock codes associated to this product
CL5716MATAAU, CL5716M-ATA-AU, KVACL5716M, KVA-CL5716M
Aten CL5716M-ATA-AU 16-Port PS/2-USB VGA LCD KVM Switch
With Daisy-Chain Port and USB Peripheral Support
Features
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a
Slideawayâ„¢ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 16
computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a
single console (With compatible KVM Swithces: ACS1208A, ACS1216A,
CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards
and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and
simultaneous booting of multiple computers even when the console focus is
elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel
pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for
manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control
computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all
available computers on the installation
- Hot pluggable - add or remove computers without having to power down the
switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the
daisy-chain cable
- Keyboard Language support: English (US), English (UK), French, German,
German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish,
Swedish and Traditional Chinese
* The USB peripheral function only works with USB cable set connections. It
will not work with PS/2 cable set connections.
Package Contents
- 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord (AC Power Models)
- 1x User Instructions
Overview
The CL5716 Slideawayâ„¢ LCD KVM Switch is a control unit that allows access to
multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse)
console. A single CL5716 can control up to 16 computers. As many as 31
additional KVM switches can be daisy-chained to the CL5716, so that up to 512
computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch
technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and
touchpad in a 1U rack-mountable sliding housing.

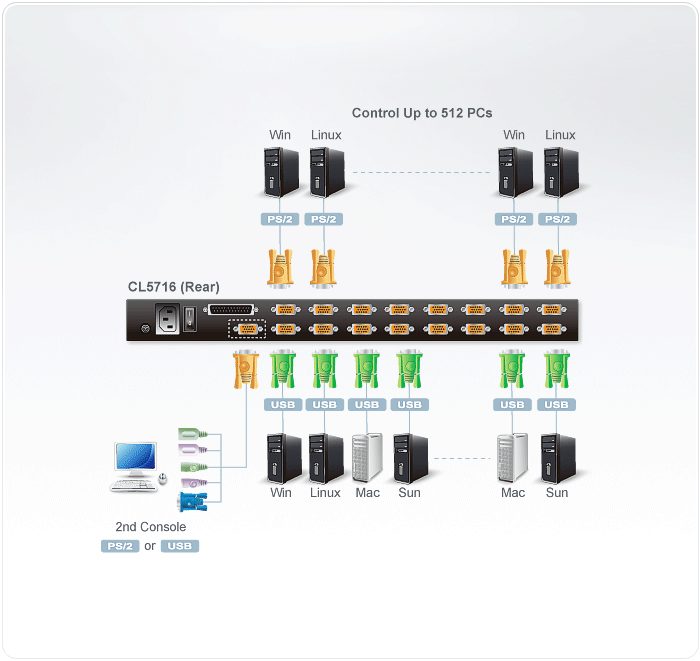

Diagram
Specifications
Function |
CL5716M |
CL5716N |
Computer
Connections |
|
|
Direct |
16 |
16 |
Maximum |
512
(via Daisy-chain) |
512
(via Daisy-chain) |
Port
Selection |
OSD,
Hotkey, Pushbuttons |
OSD,
Hotkey, Pushbuttons |
Connectors |
|
|
External
Console Ports |
1
x SPHD-18 Male (Yellow) |
1
x SPHD-18 Male (Yellow) |
KVM
Ports |
16
x SPHD-15/17 Female (Yellow) |
16
x SPHD-15/17 Female (Yellow) |
Daisy
Chain Ports |
1
x DB-25 Male |
1
x DB-25 Male |
Firmware
Upgrade |
1
x RJ-11 Female |
1
x RJ-11 Female |
Power |
1
x 3-prong AC Socket |
1
x 3-prong AC Socket |
External
Mouse Port |
1
x USB Type A Female |
1
x USB Type A Female |
Switches |
|
|
Port
Selection |
2
x Pushbutton |
2
x Pushbutton |
Station
Selection |
2
x Pushbutton |
2
x Pushbutton |
Reset |
1
x Semi-recessed Pushbutton |
1
x Semi-recessed Pushbutton |
Firmware
Upgrade |
1
x Switch |
1
x Switch |
Power |
1
x Rocker Switch |
1
x Rocker Switch |
LCD
Adjustment |
4
x Pushbutton |
4
x Pushbutton |
LCD
On/Off |
1
x LED Pushbutton |
1
x LED Pushbutton |
LEDs |
|
|
Online |
16
(Orange) |
16
(Orange) |
Port
ID |
2
(Yellow) |
2
(Yellow) |
Station
ID |
2
(Yellow) |
2
(Yellow) |
Power |
1
(Dark Green) |
1
(Dark Green) |
Lock |
1
x Num Lock (Green) |
1
x Num Lock (Green) |
|
1
x Caps Lock (Green) |
1
x Caps Lock (Green) |
|
1
x Scroll Lock (Green) |
1
x Scroll Lock (Green) |
Panel
Spec |
|
|
LCD
Module |
17"
TFT-LCD |
19"
TFT-LCD |
Resolution |
1280
x 1024 @ 75 Hz |
1280
x 1024 @ 75 Hz |
Response
time |
5
ms |
5
ms |
Viewing
Angle |
170°
(H), 160° (V) |
170°
(H), 160° (V) |
Pixel
Pitch |
0.264
mm x 0.264 mm |
0.294
mm x 0.294 mm |
Support
Color |
16.77M
colors |
16.77M
colors |
Contrast
Ratio |
1000:01:00 |
1000:01:00 |
Luminance |
250
cd/m² |
250
cd/m² |
Emulation |
|
|
Keyboard
/ Mouse |
PS/2,
USB |
PS/2,
USB |
Video |
|
|
Input
Video Resolution |
1920
x 1200 @ 60 Hz |
1920
x 1200 @ 60 Hz |
Second
console |
1920
x 1200 @ 60 Hz |
1920
x 1200 @ 60 Hz |
Scan
Interval |
1-255
seconds |
1-255
seconds |
Maximum
Input Power Rating |
100-240V
AC, 50-60Hz, 1A |
100-240
VAC, 50-60Hz, 1A |
Power
Consumption |
AC110V:19.5W:102BTU |
AC110V:19.5W:102BTU |
|
AC220V:20.8W:108BTU |
AC220V:20.8W:108BTU |
Environmental |
|
|
Operating
Temperature |
0-50°C |
0-50°C |
Storage
Temperature |
-20-60°C |
-20-60°C |
Humidity |
0-80%
RH, Noncondensing |
0-80%
RH, Noncondensing |
Physical
Properties |
|
|
Housing |
Metal
+ Plastic |
Metal
+ Plastic |
Weight |
13.59
kg ( 29.93 lb ) |
13.65
kg ( 30.07 lb ) |
Dimensions
(L x W x H) |
48.00
x 64.27 x 4.40 cm |
48.00
x 68.92 x 4.40 cm |
|
(18.9
x 25.3 x 1.73 in.) |
(18.9
x 27.13 x 1.73 in.) |
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH format. |
|
