Aten CL1000N-ATA-AU PS/2 VGA LCD Console



Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
  • LCD module rotates up to 115 degrees for a more comfortable viewing angle
  • Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
  • Compatible with most PS/2 KVM Switches
  • Internal power supply
  • Adjustable depth to fit within a rack

High video resolution:

• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen

• Supports DDC, DDC2, DDC2B

• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor

Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese

Improved design – optional single person installation kit

Note: Custom KVM cables or converters are available for USB support

* Compatible rack mounting kit:

  • CL1000M: 2X-010G, 2X-011G, 2X-012G
  • CL1000N: 2X-023G, 2X-024G, 2X-025G

Package Contents

  • 1x CL1000M or CL1000N with Standard Rack Mount Kit
  • 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
  • 1x Power Cord
  • 1x User Instructions

Overview

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

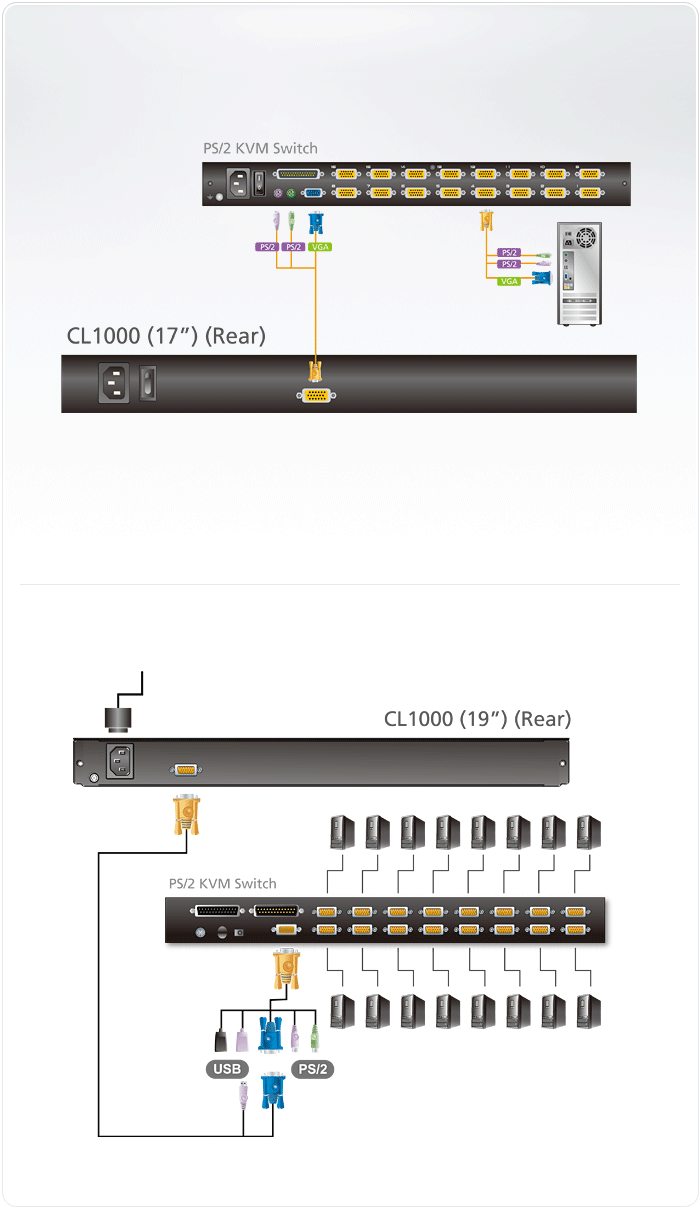

Diagram

Specifications

Function

CL1000M

CL1000N

Computer Connections

Direct

1

1

Connectors

KVM Ports

1 x SPHD Female (Yellow)

1 x SPHD Female (Yellow)

Power

1 x 3-prong AC Socket

1 x 3-prong AC Socket

Switches

Reset

1 x Semi-recessed Pushbutton

1 x Semi-recessed Pushbutton

Power

1 x Rocker

N/A

LCD Power

1 x Pushbutton

1 x Pushbutton

LCD Adjustment

4 x Pushbutton

4 x Pushbutton

LEDs

Power

1 x KVM Console (Dark Green)

1 x KVM Console (Dark Green)

1 x LCD (Orange)

1 x LCD (Orange)

Lock

1 x NumLock (Green)

1 x NumLock (Green)

1 x CapsLock (Green)

1 x CapsLock (Green)

1 x ScrollLock (Green)

1 x ScrollLock (Green)

Video

Input Video Resolution

1920 x 1200 @ 60Hz; DDC2B

1920 x 1200 @ 60Hz; DDC2B

Panel Spec

LCD Module

17" TFT-LCD

19" TFT-LCD

Resolution

1280 x 1024 @ 75 Hz

1280 x 1024 @ 75 Hz

Pixel Pitch

0.264 mm x 0.264 mm

0.294 mm x 0.294 mm

Response time

5 ms

5 ms

Viewing Angle

170° (H), 160° (V)

170° (H), 160° (V)

Contrast Ratio

1000:01:00

1000:01:00

Support Color

16.7M colors

16.7M colors

Luminance

250 cd/m²

250 cd/m²

Emulation

Keyboard / Mouse

PS/2

PS/2

Maximum Input Power Rating

100-240 VAC; 50-60 Hz; 1A

100-240 VAC; 50-60 Hz; 1A

Power Consumption

AC110V:14.2W:69BTU

AC110V:14.2W:69BTU

AC220V:15.5W:75BTU

AC220V:15.5W:75BTU

Environmental

Operating Temperature

0-50˚C

0-50˚C

Storage Temperature

-20-60˚C

-20-60˚C

Humidity

0-80% RH, Non-condensing

0-80% RH, Non-condensing

Physical Properties

Housing

Metal+Plastic

Metal+Plastic

Weight

12.02 kg ( 26.48 lb )

11.06 kg ( 24.36 lb )

Dimensions (L x W x H)

48.00 x 53.83 x 4.40 cm

48.3 x 58.52 x 4.4 cm

(18.9 x 21.19 x 1.73 in.)

(19.02 x 23.04 x 1.73 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
