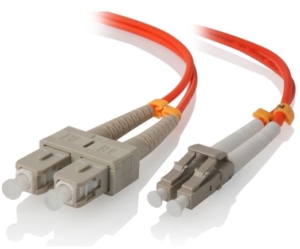

Alogic LCSC-10-OM1 10m LC-SC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1



Features

  • Multi Mode OM1 fibre optic cable.
  • Available in various lengths starting from 1m to 20m length.
  • Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
  • 100% optically tested and provided with test reports.
  • Life Time warranty.

Overview

The Multi Mode OM1 cables are designed to support Gigabit Fibre & ethernet channel, the cables are capable of supporting 1Gigabit applications upto over 25 m length.The ALOGIC Fibre Cables are constructed with the high quality components such as genuine Corning Inficore 3 glass and high grade connectors with ceramic ferrules to ensure the maximum performance accuracy and durability. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM1 Patch Cables are available in various lengths starting from 1m to 2 m length.

Specifications

Connector type

LC,SC

Wavelengths

62.5m (OM1)/125 m

Attenuation

At 850 nm: <3.5dB per km

At 1300 nm: <1.0dB per km

Insertion loss

<0.2dB per 300 m @ 850 nm or 1300 nm

Fiber

Glass

Number of fibers

2

Jacket

LSZH (Low Smoke Zero Halogen)

Cable outer diameter

2mm +/-0.2mm

Safety

ETL/c-ETL

Warranty

Lifetime
