All stock codes associated to this product
SW4I03457100, SW4I-03457-100, 9350784001894

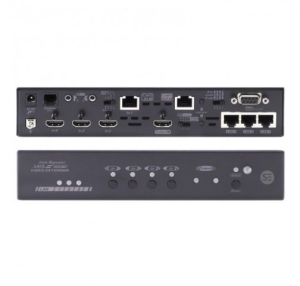

Serveredge SW4I-03457-100 HDBaseT 4K2K 4Input
Switcher
Descriptions
4K2K 4Input Switcher with (1) HDBaseT (3) HDMI Inputs (1) HDBase (1) HDMI
Mirrored Outputs IR Ethernet & Control 100m
The Serveredge SW4I-03457-100 is a 4 x 1 switcher with one HDBaseT input,
three HDMI inputs, mirrored HDMI and HDBaseT outputs enabled with automatic
input selection and automatic display control capability. It transmits AV
signals along with Ethernet, power, Bi-Directional IR and control over a single
cable to displays up to 100 meters from the switcher. Control options include
automatic input selection, front-panel buttons, and compatibility with IR and
RS-232.
Overview
Auto-Switching
Selects active input when sources are connected or if there is a change in
source power status. Eliminates need for complex control system in small AV
systems.
Flexible control options for compatibility with 3rd-party control systems.
RS-232 controlled from HDBaseT connection reduces integration time and costs.
Front panel Input Select button and Remote for easy switching between sources.
Input source sequence is also selectable.
4×1 HDBaseT™ Switcher
Features three HDMI inputs plus a HDBaseT input and one HDMI and one HDBaseT
outputs.
4K2K
Support resolutions up to UHD (3840 x 2160), Full HD 1080p, 2048 x 1152, Deep
Color and HD Audio formats.
Exclusive EDID Functions
Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting,
ensuring accurate output display. Can learn Audio and Video EDID separately for
multimedia / Home Theater system integration. Read and store the EDID from the
connecting display to the video extension
Warranty : 1 Year
Specifications
|
Video
Input |
(Remote)
RJ-45 x 1, (Local) HDMI x 3 |
|
Video
Output |
(Remote)
RJ-45 x 1, (Local) HDMI x 1 |
|
IR
Extension |
(Transceiver
x 1 + Receiver x 1) x 2 |
|
Serial
Extension |
DB9-F
x 1 |
|
LED
Indicator |
Status
LED : 1 |
|
|
Input
/ Ouptut LED : 4 + 2 |
|
Slide
Switch |
Audio/Video
EDID Setting : Audio / Video / Inventory |
|
|
EGO
(Advanced Autosensing) Setting : Priority / Auto-sensing /
Switch |
|
|
Serial
Linking Setting : Link Mode x 4 |
|
Push
Button |
Function
: x 1 |
|
|
Source
Selection : x 1 |
|
|
EDID
Copy : (Local x 1 + Remote x 1) x 2 |
|
Video
Resolution (max.) |
UHD
(3840 x 2160) |
|
Extension
Distance |
100M |
|
Power
Supply |
DC
12V |
|
Enclosure |
Metal |
|
H
x W x D (mm) |
34
x 190 x 125 |
|
Weight
(g) |
1020~1070 |
|
|
|
|
PACKAGING
INCLUDES |
|
|
SW4I-03457-100 |
1 |
|
Power
Adapter Set |
1 |
|
IR
Remote Controller |
1 |
|
CD
(User’s Manual + Software Utility) |
1 |
|
Quick
Start Guide |
1 |
|
CATx
Cable (1.5M) |
1 |
|
Grounding
Wire |
1 |
|
Foot
Pad Set |
1 |
