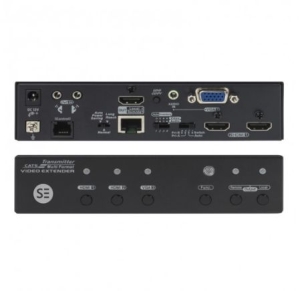

Serveredge HD2V-EX-100-HDBT 4K2K HDBaset Extender Over
Single CAT5E/CAT6 With 4K, GUI, 3D & IR
Descriptions
This Serveredge Multi input (HDMI X 2 / VGA X 1) HDBaseT extender is a
compact transmitter for sending HDMI or 15 Pin HD analog video,audio &
control upto 70 or 100 meters over a shielded cat6 cable.
The Serveredge HD2V-EX-100-HDBT is a Multi Input Switcher Transmitter (Tx)
with (2) HDMI, (1) VGA, Audio, IR, Control Inputs with (1) HDBaseT, Local HDMI
Output and Audio Out. It features two HDMI inputs and a VGA input with 3.5mm
audio connector. The unit combines the benefits of a switcher with built-in
auto-switching and the advantages of extended-distance HDBaseT signal
transmission over a single cable. The switcher enables automatic display on/off,
auto-switching, third-party control, plus other control features.
The optional Graphical User Interface (GUI) function makes control easy and
more effective. The well-designed GUI can free users from giving complex
commands. It allows you to name and portray your source and display icons for a
user-friendly operation.
Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting,
ensuring accurate output display. Enable the unit to separately learn Audio and
Video EDID for multimedia/ Home theatre system integration it can also read and
store the EDID from the connecting display to the video extension.
It supports resolutions up to UHD (3840 x 2160)and Full HD (1920 x 1080) and
is compatible with most of the popular screen resolution. This Serveredge
HD2V-EX-100-HDBT extender kit is HDCP compliant and only requires single power
supply at either transmitter or receiver end. It features compact size for easy
set up and install.
Features
3×1 HDBaseT™ switcher
Features two HDMI inputs plus a VGA input with 3.5mm audio connector, which
allows advanced HDMI display devices to be used with legacy VGA sources
Transmits HDMI signals up to 100m @ 1080p and 70m @ 4K/UHD using CAT6a/7
cable. Uses easy-to-integrate category cable for low-cost, reliable system
installation
Auto-switching
Selects active input when sources are connected or if there is a change in
source power status. Eliminates need for complex control system in small AV
systems
Flexible control options for compatibility with 3rd-party control systems.
RS-232 controlled from HDBaseT connection reduces integration time and costs.
Front panel Input Select button and Remote for easy switching between sources.
Input source sequence selectable
Graphical User Interface (GUI)
Allows you to name and portray your source and display icons for a
user-friendly operation. Makes control easy and more effective
Warranty : 2 Years
Specifications
|
Input |
HDMI
x 2, VGA + Analog Stereo x 1 |
|
Output |
HDMI
x 1 + Analog Stereo x 1 |
|
Connection |
RJ-45
x 1 |
|
LED
Indicator (Power/Status) |
Source
x 3, Remote x 1, Local x 1 |
|
Push
Button |
Port
Select x 3, Function x 1, Remote x 1, |
|
|
Local
x 1, EDID copy x 1 |
|
IR
Extension |
IR
Transceiver x 1, IR Receiver x 1 |
|
Signal
Configuration (Video/Audio) |
Auto/Inventory |
|
Mode
Configuration |
Switch/Auto/Pri-A/Pri-B |
|
Link
Port Configuration |
Auto
Power Saving/Normal/Long Reach |
|
Video
Resolution (Max.)* |
UHD
(3840 x 2160) for HDMI |
|
|
Full
HD (1920 x 1080) for VGA |
|
Extension
Distance* |
HDMI
Full HD (1920 x 1080) @ 100M |
|
|
UHD
(3840 x 2160) @ 70M |
|
|
VGA
Full HD (1920 x 1080) @ 100M |
|
Enclosure |
Metal |
|
HDMI
Extender Transmitter Unit |
1 |
|
Power
Adapter Set (option: Power Adapterwith necessary AC
Cord/Plug-in Power Adapter |
1 |
|
CAT5
Cable |
1 |
|
User's
Manual |
1 |
|
Foot
Pad Set |
1 |
