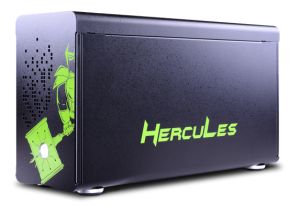

Netstor HL23T Thunderbolt 3 to Single PCIe Expansion
Enclosure
Overview
Herculesâ„¢ HL23T Makes You as a Superhero !!
HL23T being the first Herculesâ„¢ series, the Netstor Herculesâ„¢ box is able to
be installed with single-slot and double-width card to your Thunderbolt 3 host
computers to bring the almighty power to your digital workflows, also creating
your potential skills in both the Entertainment and Production fields. Suitable
applications include Gaming, AR/VR content creation, video-editing and so forth.
Thunderbolt 3 (USB-C) 40Gbps Interface
Designed to feature Thunderboltâ„¢ 3 interface (40Gb/s) capable of providing
PCIe bandwidth up to 2750 MB/s, 2x times Thunderbolt 2, for diverse professional
PCIe cards such as video transcoding and video capture that primarily require
higher throughput of data transfer rate to the host computer.

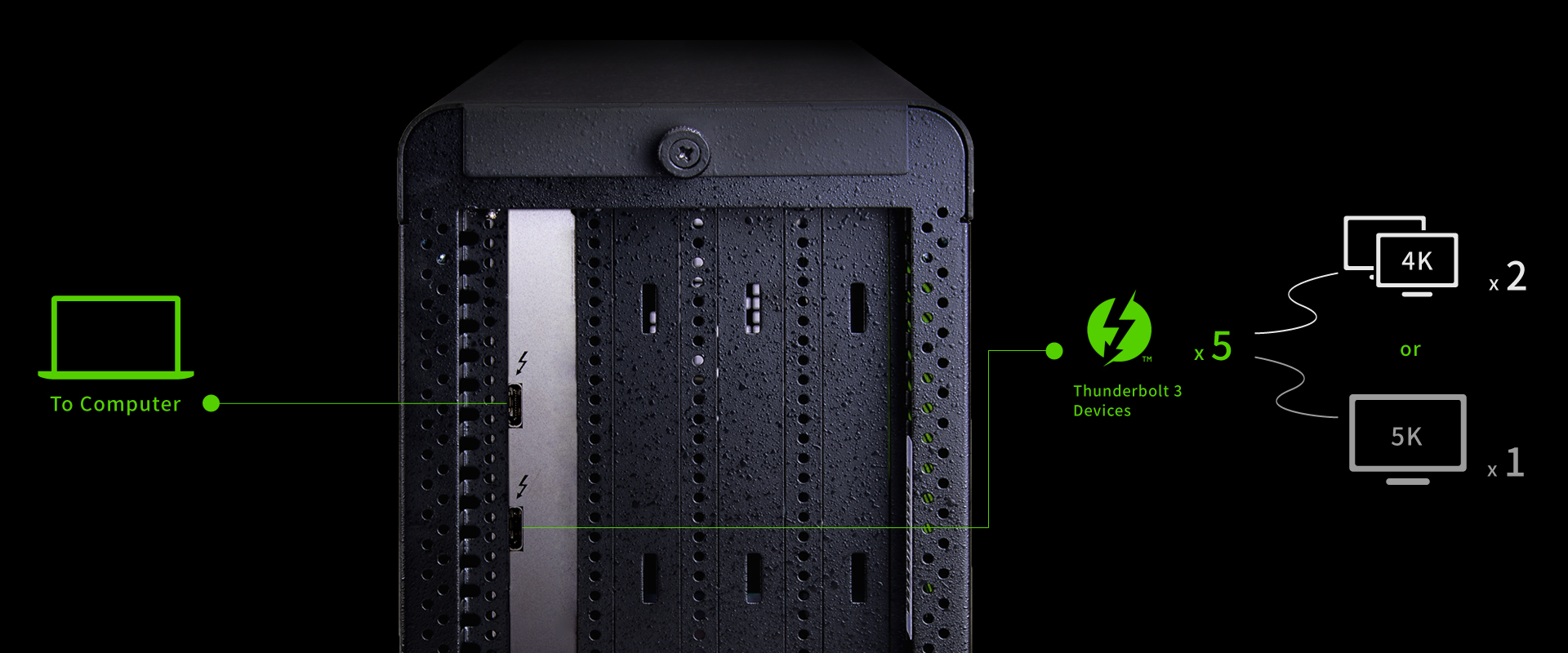

Dual Thunderbolt 3 Ports - The USB C That Does It All
Through the dual Thunderboltâ„¢ 3 (USB-C) ports, users can have the first port
to computer while the second port to daisy-chain of up to five additional
Thunderbolt peripheral devices with two 4K displays or one 5K display being
positioned at the very end of the chain. USB 3.1 Gen 2 (10Gbps) is supported as
well: connecting one USB device to the second port for application is
applicable.
Just Cooling Where your Card Needs
Built with one position movable 8x8 cm speed-adjustable fan cooler at
enclosure's side, users can at any time by shifting cooler's position to have
the best airflow ventilation to the video card based on each card's length
design and card's fan/blower location.
Containing 1-Meter Thunderbolt 3 (40Gb/s) Active Cable
The included one-meter Thunderboltâ„¢ 3, 40Gbps, active cable allows users to
much freely arrange the expansion box with their Thunderbolt 3 host computer for
all kinds of the professional digital workflows.

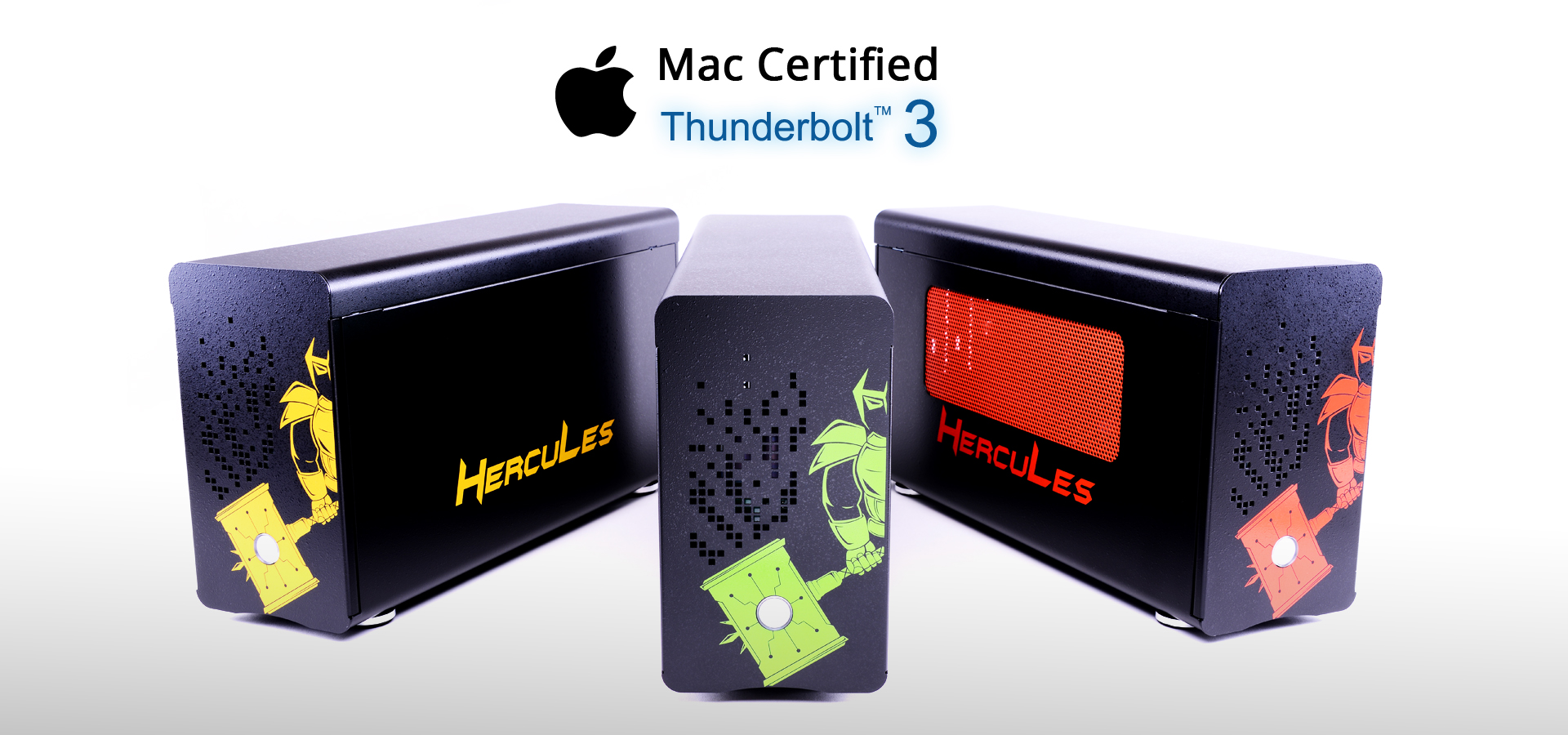

Mac certified. Works with All Series of Thunderbolt Mac
The Thunderboltâ„¢ 3 HL23T single-slot PCIe expansion chassis has passed
Apple's strict certification test process and is Mac certified, which supports
and works with all series of Thunderbolt Mac.
The 300W Industrial-Grade Power Supply
The built-in 300W industrial grade PSU definitely suits every end-users'
needs in the digital content workflow applications. The expansion enclosure
includes two 6+2 pin auxiliary PCI-E power connectors that support professional
cards requiring electric power up to 300 watts.
Specifications
|
Host
Interface |
Thunderboltâ„¢3
(Dual Port USB-C for Daisy Chain) |
|
Data
Transfer Rate |
40Gbps |
|
No.
of PCIe Slots |
One
PCIe 3.0 x16 (PCIe 3.0 x4 Electrical / Thunderbolt
Spec) |
|
Thunderbolt
Expansion |
Up
to Six Thunderbolt devices |
|
LED
Display for Enclosure |
Power
On |
|
Material |
Aluminum
housing with solid metal structure |
|
Power
Supply |
Single
300W PSU (High-Efficiency & Low Noise) |
|
|
Input:
90-230 VAC/50-60 HZ |
|
|
Output:
+5V and +12V |
|
|
(With
two PCIe 6+2 pin & one 4 Pin auxiliary power
cable) |
|
Dimension |
371(D)
x 110(W) x 200(H) mm |
|
|
14.6
(D) x 4.3 (W) x 7.87 (H) inch |
|
Cooling |
One
Hot-Swappable 80 x80 x20 mm Cooling Fan |
|
System
Support |
MacBook
Pro(2016) with a Thunderbolt 3 port |
|
|
Note:
Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2
adapter from Apple. |
|
O.S.
Support |
Mac
OS X 10.12.3 above |
|
|
Windows
10 |
|
PCIe
card Driver Request |
Third-party
PCIe card should support Mac OS with Thunderbolt aware's
driver |
|
PCIe
card Size Available |
Full
length (320mm), full height (120mm) , double-width PCIe
card |
|
Operating
Temperature |
0
to 40°C (32 to 104°F) |
|
Storage
Temperature |
-10
to 50°C (14 to 122°F) |
|
Relative
Humidity |
20
to 80% (non-condensing) |
|
Package
Content |
Enclosure
x 1 |
|
|
Thunderbolt3-40Gbps
cable x 1 (1 meter) |
|
|
Power
Cord x 1 |
