Product
SKUs |
|
|

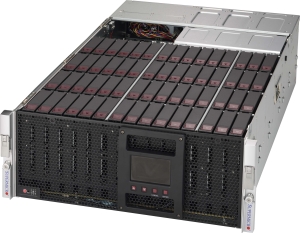

CSE-946SE2C-R1K66JBOD |
SuperChassis
946SE2C-R1K66JBOD |
|
|
|
Form
Factor |
4U JBOD storage
chassis |
|
|
|
Dimensions |
|
|
Height |
7" (178
mm) |
|
Width |
17.2" (437
mm) |
|
Depth |
30.2" (767.08
mm) |
|
35.1" (891 mm) with
cable management arm installed |
|
Net
Weight |
100 lbs (45.36
kg) |
|
Gross
Weight |
155 lbs (70.31
kg) |
|
Packaging (W x H x
L) |
28" (711 mm) x 33.25"
(845 mm) x 42.5" (1080 mm) |
|
Available
Color |
Black |
|
|
|
Drive
Bays |
60 x 3.5" hot-swap SAS
drive bay with SES3 |
|
|
|
Backplane |
30-port 4U 946S
Top-load SAS3 12Gbps dual-expander midplane, support up to 30x 3.5-inch
SAS3/SATA3 HDD/SSD |
|
|
|
Front
Panel |
|
|
Buttons |
Power On/Off
button |
|
Unit Identification
(UID) button |
|
LEDs |
1 Network Activity
LEDs |
|
Power Status
LED |
|
Power Fail
LED |
|
|
System Information
LED |
|
|
|
Systems
Cooling |
|
|
Fans |
5 x 80mm rear hot-swap
exhaust PWM fan(s) |
|
|
|
System
Monitoring |
IPMI |
|
|
|
Operating
Environment (System) |
|
|
Operating Temperature
Range |
5C - 35C (41F -
95F) |
|
Non-Operating
Temperature Range |
-40C - 60C (-40F -
140F) |
|
Operating Relative
Humidity Range |
8% - 90%
(non-condensing) |
|
Non-Operating Relative
Humidity Range |
5% - 95%
(non-condensing) |
|
|
|
Power
Supply |
|
|
1600W redundant power
supply, Platinum level with PMBus & I2C |
|
Power
Efficiency |
94% |
|
Total Output Power and
Input |
1000W with Input 100 -
127Vac |
|
1600W with Input 200 -
240Vac |
|
AC Input
Frequency |
50-60Hz |
|
Dimensions (L x W x
H) |
265 x 73.5 x 40
mm |
|
Output
Type |
Backplanes (gold
finger) |
|
+12V |
Max: 132A / Min: 0.1A
(200Vac - 240Vac) |
|
Max: 82A / Min: 0.1A
(100Vac - 120Vac) |
|
+12Vsb |
Max: 2A / Min:
0.2A |
|
Power
Distributor |
PDB-PT946S-824 |
|
O/P:
12V/168A |
|
+5V Max:
25A |
|
+3.3V Max:
25A |
|
-12V Max:
0.6A |
|
Certification |
Platinum
Certified |
|
|
|
Regulatory (Power
Supply) |
|
|
Power Supply Safety /
EMC |
BSMI |
|
CCC |
|
CE/EMC |
|
FCC class
A |
|
TUV/CB |
|
UL/CUL |
