Product
SKUs |
|
|

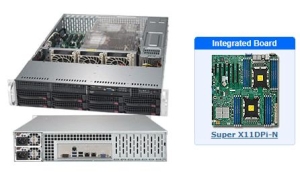

SYS-6029P-TR |
SuperServer
6029P-TR (Black) |
|
Motherboard |
Super
X11DPi-N |
|
Processor/Cache |
|
|
CPU |
Dual
Socket P (LGA 3647) |
|
|
Intel®
Xeon® Scalable Processors , |
|
|
Dual
UPI up to 10.4GT/s |
|
|
Support
CPU TDP 70-205W |
|
Cores |
Up
to 28 Cores with Intel® HT Technology |
|
System
Memory |
|
|
Memory
Capacity |
16
DIMM slots |
|
|
Up
to 2TB 3DS ECC L/RDIMM, up to DDR4-2666MHz |
|
Memory
Type |
2666/2400/2133MHz
ECC DDR4 RDIMM/LRDIMM |
|
On-Board
Devices |
|
|
Chipset |
Intel®
C621 chipset |
|
SATA |
SATA3
(6Gbps); RAID 0, 1, 5, 10 |
|
Network
Controllers |
Dual
1GbE LAN with Intel® X722 |
|
IPMI |
Support
for Intelligent Platform Management Interface v.2.0 |
|
|
IPMI
2.0 with virtual media over LAN and KVM-over-LAN
support |
|
Graphics |
ASPEED
AST2500 BMC |
|
Input
/ Output |
|
|
SATA |
8
SATA3 (6Gbps) ports |
|
LAN |
2
RJ45 Gigabit Ethernet LAN ports |
|
|
1
RJ45 Dedicated IPMI LAN port |
|
USB |
Rear
USB: 2 USB 3.0 + 2 USB 2.0 |
|
|
Front
USB: 2 USB 2.0 |
|
|
USB
Header: 1 Type A |
|
VGA |
1
VGA port |
|
Serial
Port / Header |
2
Fast UART 16550 serial |
|
|
2
COM Ports (1 rear, 1 header) |
|
DOM |
2
SuperDOM (Disk on Module) ports |
|
System
BIOS |
|
|
BIOS
Type |
AMI
UEFI |
|
Management |
|
|
Software |
Intel®
Node Manager |
|
|
IPMI
2.0 |
|
|
KVM
with dedicated LAN |
|
|
SSM,
SPM, SUM |
|
|
SuperDoctor®
5 |
|
|
Watch
Dog |
|
Power
Configurations |
ACPI
/ APM Power Management |
|
PC
Health Monitoring |
|
|
CPU |
Monitors
for CPU Cores, Chipset Voltages, Memory. |
|
|
4+1
Phase-switching voltage regulator |
|
FAN |
Fans
with tachometer monitoring |
|
|
Status
monitor for speed control |
|
|
Pulse
Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring
for CPU and chassis environment |
|
|
Thermal
Control for fan connectors |
|
Chassis |
|
|
Form
Factor |
2U
Rackmount |
|
Model |
CSE-825TQC-R1K03LPB |
|
Dimensions
and Weight |
|
|
Width |
17.2"
(437mm) |
|
Height |
3.5"
(89mm) |
|
Depth |
25.5"
(647mm) |
|
Package |
26.7"
(H) x 11.4" (W) x 34.5" (D) |
|
Weight |
Net
Weight: 35.5 lbs (16.1 kg) |
|
|
Gross
Weight: 69 lbs (31.2 kg) |
|
Available
Colors |
Black |
|
Front
Panel |
|
|
Buttons |
Power
On/Off button |
|
|
System
Reset button |
|
|
UID
button |
|
LEDs |
Power
status LED |
|
|
HDD
activity LED |
|
|
Network
activity LEDs |
|
|
System
information (overheat/UID) LED |
|
Expansion
Slots |
|
|
PCI-Express |
4
PCI-E 3.0 x16 (Low-profile) |
|
|
2
PCI-E 3.0 x8 (Low-profile) |
|
Drive
Bays |
|
|
Hot-swap |
8
Hot-swap 3.5" SATA drive bays |
|
Backplane |
|
|
2U
SAS/SATA backplane |
|
|
System
Cooling |
|
|
Fans |
3
Heavy duty 80mm fans with PWM fan speed control |
|
Power
Supply (76mm Width) |
|
|
1000W
Redundant Power Supplies with PMBus |
|
|
Total
Output Power |
800W/1000W |
|
Dimension |
76
x 40 x 336 mm |
|
(W
x H x L) |
|
|
Input |
100-127Vac
/ 12-9A / 50-60Hz |
|
|
200-240Vac
/ 7.2-6A / 50-60Hz |
|
|
200-240Vdc
/ 7.2-6A (for CCC only) |
|
+12V |
Max:
66.7A / Min. 0A (100-127Vac) |
|
|
Max:
83A / Min. 0A (200-240Vac) |
|
|
Max:
83A / Min. 0A (200-240Vdc) |
|
5Vsb |
Max:
4A / Min: 0A |
|
Output
Type |
19
Pairs Gold Finger Connector |
|
Certification |
UL/cUL/CB/BSMI/CE/CCC |
|
|
Titanium
Level |
|
|
[
Test Report ] |
|
Operating
Environment |
|
|
RoHS |
RoHS
Compliant |
|
Environmental
Spec. |
|
|
Operating
Temperature: |
10°C
~ 35°C (50°F ~ 95°F) |
|
Non-operating
Temperature: |
-40°C
to 60°C (-40°F to 140°F) |
|
Operating
Relative Humidity: |
8%
to 90% (non-condensing) |
|
Non-operating
Relative Humidity: |
5%
to 95%
(non-condensing) |
