Product
SKUs |
|
|
|
|
|

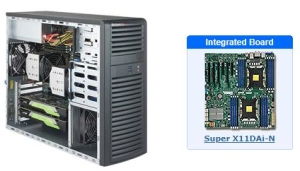

SuperWorkstation |
SYS-7039A-i
(Black) |
|
|
|
|
Motherboard |
|
|
|
|
|
Super
X11DAi-N |
|
|
|
|
|
Processor/Cache |
|
|
|
|
|
CPU |
Dual
Socket P (LGA 3647) |
|
|
Intel®
Xeon® Scalable Processors , |
|
|
Dual
UPI up to 10.4GT/s |
|
|
Support
CPU TDP 70-205W |
|
Cores |
Up
to 28 Cores with Intel® HT Technology |
|
GPU
Support |
Please
refer to: Compatible GPU list |
|
|
|
|
System
Memory |
|
|
|
|
|
Memory
Capacity |
16
DIMM slots |
|
|
Up
to 2TB 3DS ECC L/RDIMM, up to DDR4-2666MHz |
|
Memory
Type |
2666/2400/2133MHz
ECC DDR4 RDIMM/LRDIMM |
|
DIMM
Sizes |
RDIMM:
64GB |
|
|
LRDIMM:
64GB |
|
|
3DS
LRDIMM: 128GB |
|
Memory
Voltage |
1.2V |
|
Error
Detection |
Corrects
single-bit errors |
|
|
Detects
double-bit errors (using ECC memory) |
|
|
|
|
On-Board
Devices |
|
|
|
|
|
Chipset |
Intel®
C621 chipset |
|
SATA |
SATA3
(6Gbps); RAID 0, 1, 5, 10 |
|
Network
Controllers |
Dual
LAN with GbE from C621 |
|
IPMI |
ASPEED
AST2500 |
|
Audio |
RealTek
ALC888 7.1 High Definition Audio with S/PDIF header |
|
|
|
|
Input
/ Output |
|
|
|
|
|
SATA |
10
SATA3 (6Gbps) ports |
|
NVMe |
2
NVMe support with optional cables |
|
LAN |
2
RJ45 Gigabit Ethernet LAN ports |
|
USB |
6
USB 3.0 ports (4 rear, 2 front) |
|
|
2
USB 3.1 ports (rear) |
|
Audio |
7.1
HD Audio with optical S/PDIF |
|
Video |
1
VGA port |
|
Serial
Port / Header |
1
COM port (header) |
|
DOM |
2
SuperDOM (Disk on Module) ports |
|
TPM |
1
TPM 2.0 Header |
|
|
|
|
System
BIOS |
|
|
|
|
|
BIOS
Type |
UEFI
128M |
|
|
|
|
Management |
|
|
|
|
|
Software |
Intel®
Node Manager |
|
|
IPMI
2.0 |
|
|
SSM,
SPM, SUM |
|
|
SuperDoctor®
5 |
|
|
Watchdog |
|
|
|
|
PC
Health Monitoring |
|
|
|
|
|
CPU |
Monitors
for CPU Cores, Chipset Voltages, Memory. |
|
|
4+1
Phase-switching voltage regulator |
|
FAN |
Fans
with tachometer monitoring |
|
|
Status
monitor for speed control |
|
|
Pulse
Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring
for CPU and chassis environment |
|
|
Thermal
Control for fan connectors |
|
Chassis |
|
|
|
|
|
Form
Factor |
Mid-Tower |
|
Model |
CSE-732D3-1200B |
|
|
|
|
Dimensions
and Weight |
|
|
|
|
|
Height |
16.7"
(424mm) |
|
Width |
7.6"
(193mm) |
|
Depth |
20.68"
(525.3mm) |
|
Gross
Weight |
40
lbs (18.1 kg) |
|
Available
Colors |
Black |
|
|
|
|
Front
Panel |
|
|
|
|
|
Buttons |
Power
On/Off button |
|
LEDs |
Power
LED |
|
|
Hard
drive activity LED |
|
|
Network
activity LED |
|
|
System
Information LED |
|
Ports |
2
front USB 3.0 Ports |
|
|
2
front HD/AC97 Audio Ports |
|
|
|
|
Expansion
Slots |
|
|
|
|
|
PCI-Express |
4
PCI-E 3.0 x16 slots |
|
|
2
PCI-E 3.0 x8 slots |
|
M.2 |
M.2
Interface: PCI-E 3.0 x4 |
|
|
Form
Factor: 2260, 2280, 22110 |
|
|
Key:
M-Key |
|
|
|
|
Drive
Bays |
|
|
|
|
|
Internal |
4
Fixed 3.5" drive bays |
|
|
(90°
rotatable drive cage) |
|
|
|
|
|
Enterprise
SATA HDD only recommended |
|
Peripheral
Bay |
2x
5.25" standard drive bays |
|
|
4x
2.5" fixed drive bays (optional) |
|
|
|
|
System
Cooling |
|
|
|
|
|
Fans |
1x
12cm rear exhaust fan |
|
|
1x
12cm front cooling fan |
|
|
Optimized
cooling technology for Whisper-Quiet Operation |
|
|
|
|
Power
Supply |
|
|
|
|
|
1200W
high-efficiency power supply w/ PMBus |
|
|
AC
Input |
1000W:
100-114.9 V, 50-60 Hz, 12 Amp |
|
|
1200W:
114.9-240 V, 50-60 Hz, 12-8 Amp |
|
DC
Output |
+3.3V
/ +5V / +12V / -12V / +5VSB |
|
1000W
max |
20A
/ 20A / 83A / 0.3A / 3A |
|
1200W
max |
20A
/ 20A / 99A / 0.3A / 3A |
|
Note: |
Max.
continuous combined load on +3.3V and +5V output shall not exceed
120W. |
|
Certification |
Platinum
Certified |
|
|
|
|
|
|
|
|
|
|
Operating
Environment / Compliance |
|
|
|
|
|
RoHS |
RoHS
Compliant |
|
Environmental
Spec. |
Operating
Temperature: |
|
|
10°C
to 35°C (50°F to 95°F) |
|
|
|
|
|
Non-operating
Temperature: |
|
|
-40°C
to 70°C (-40°F to 158°F) |
|
|
|
|
|
Operating
Relative Humidity: |
|
|
8%
to 90% (non-condensing) |
|
|
|
|
|
Non-operating
Relative Humidity: |
|
|
5%
to 95%
(non-condensing) |
