CoolerMaster MPE-5501-ACABW-AU MWE 550 White 230V V2



Overview

80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY

  • 80 PLUS Standard 230V EU Certified
  • 120mm HDB Fan
  • DC-to-DC Technology
  • Single +12V Rail
  • Silent Mode
  • Flat Black Cables

Power Up

The MWE White offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS White efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great core computing experience, you cant go wrong with the MWE White.

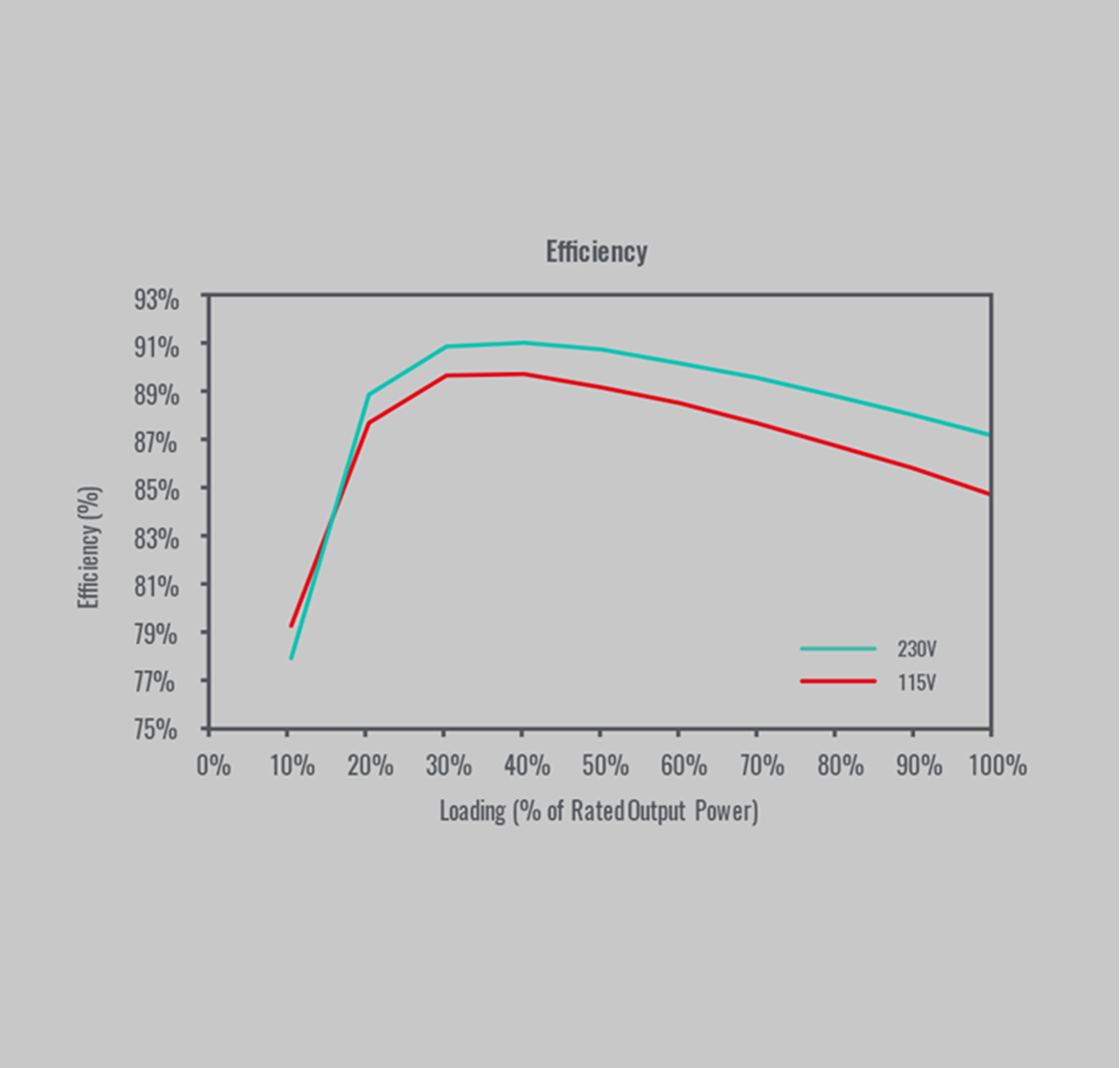

80 Plus Standard 230V EU Certified

80 PLUS STANDARD 230V EU CERTIFIED

Its important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesnt need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isnt necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.

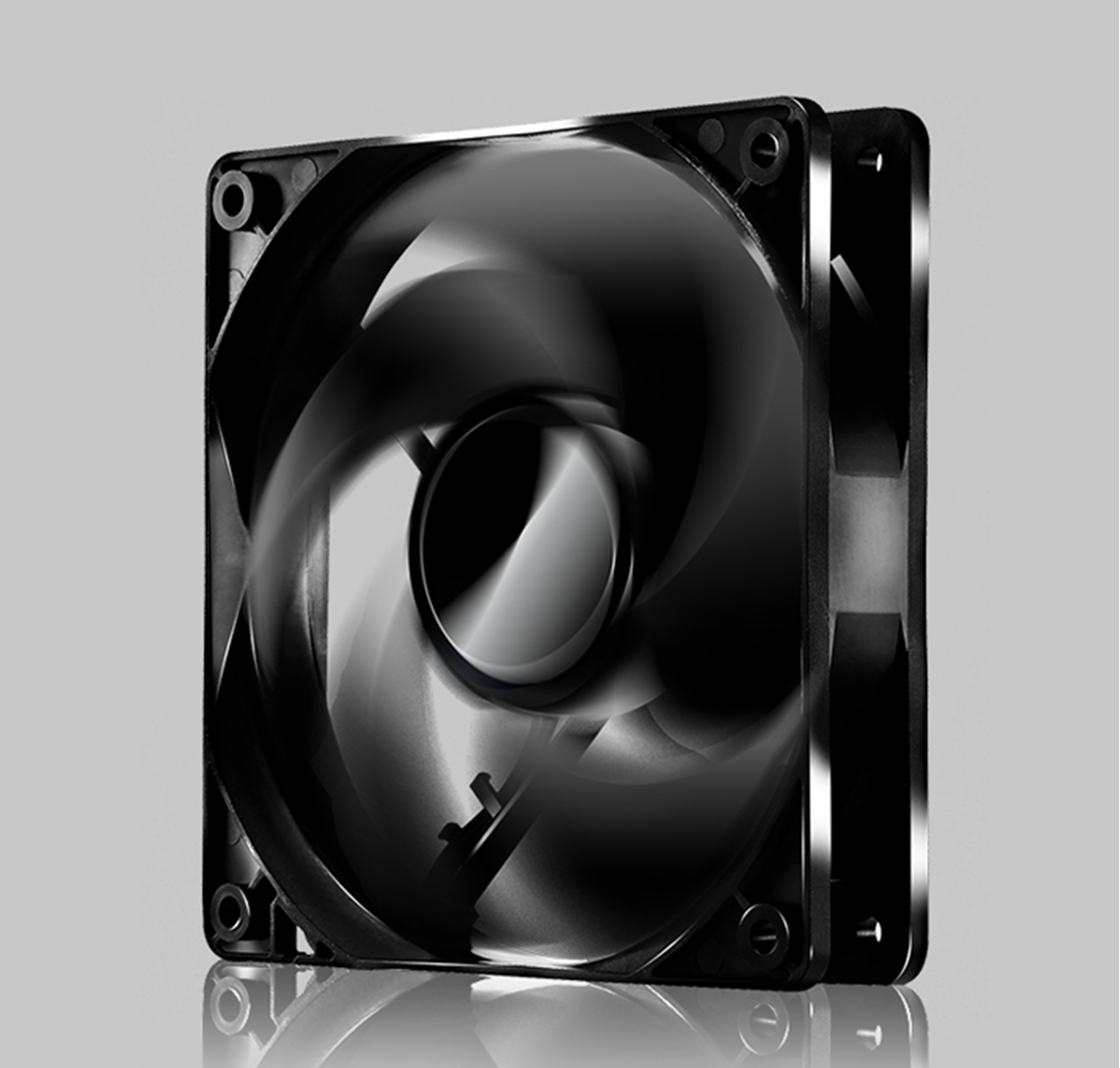

120mm HDB Fan

120MM HDB FAN

The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Whites solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the systems temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.

SINGLE +12V RAIL

Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your systems overall performance. Thats why the MWE White only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.

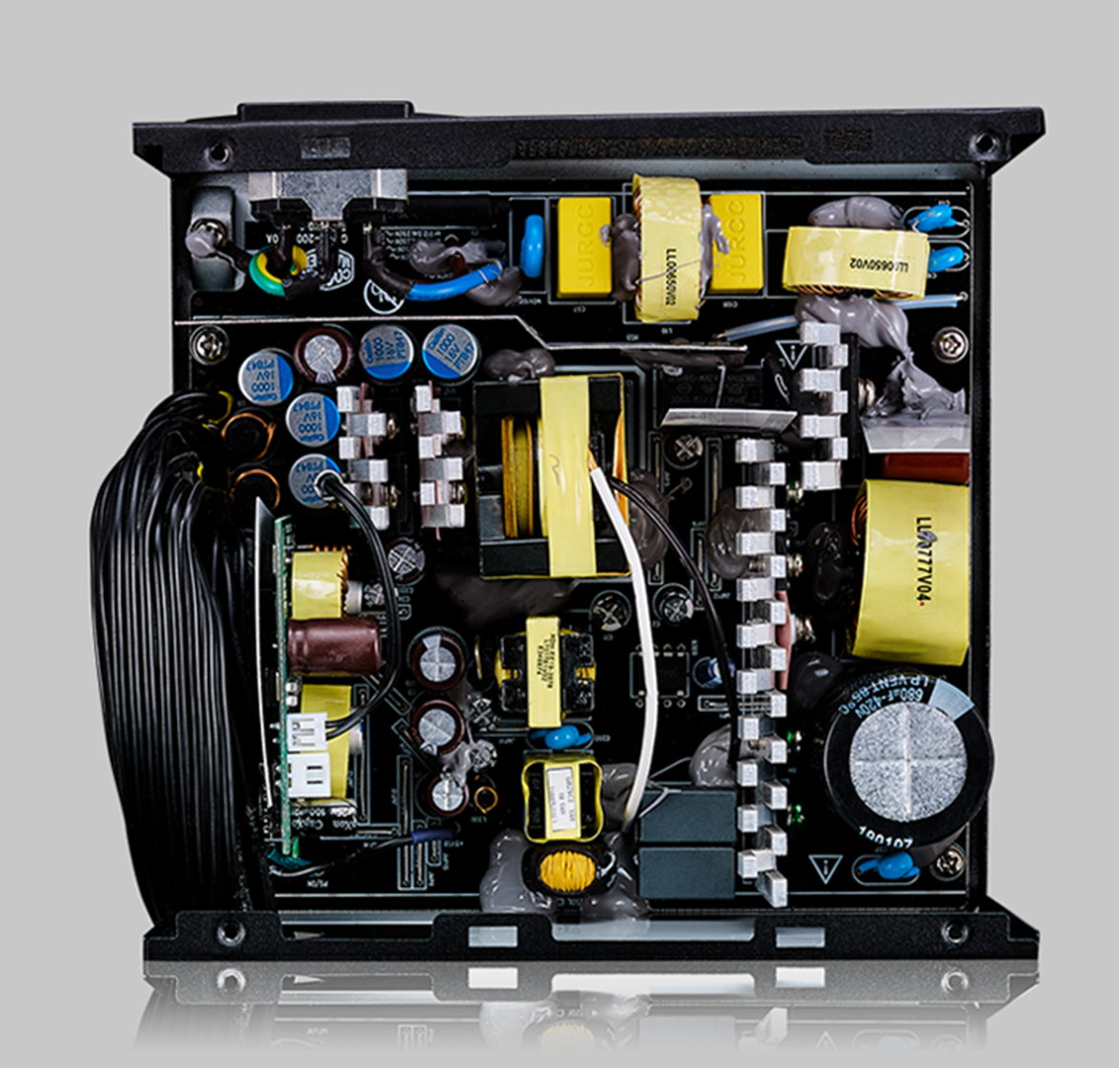

DC-to-DC Circuit Design

DC-TO-DC CIRCUIT DESIGN

Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE Whites DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.

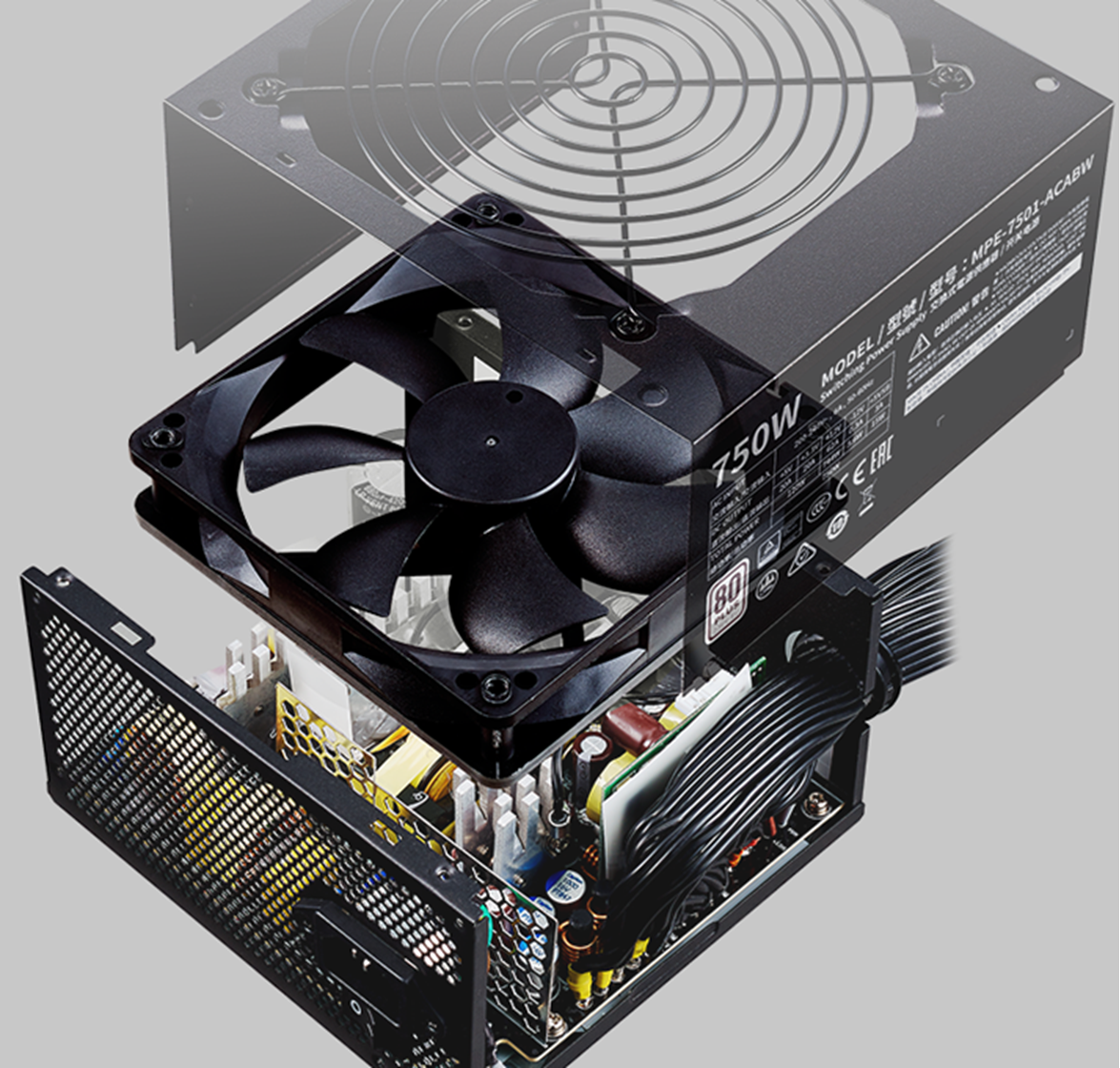

Silent Mode

SILENT MODE

The MWE White platform has a built in silent mode for low wattage operation. While your system is in standby mode or running at lower loads, the fan will not spin. This ensures complete silence during casual operation. Once your system passes the load threshold, the 120mm HDB fan will activate automatically and cool the unit appropriately based on system use and needs.

FLAT BLACK CABLES

For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE White uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.

Specifications

MODEL

MPE-5501-ACABW

ATX VERSION

ATX 12V Ver. 2.52

PFC

Active PFC

INPUT VOLTAGE

200-240Vac

INPUT CURRENT

5A

INPUT FREQUENCY

50-60Hz

DIMENSIONS

140(L) x 150(B) x 86(H) mm

FAN SIZE

120mm

FAN BEARING

HDB

FAN SPEED

1500 RPM

NOISE LEVEL @ 20%

13.8 dBA

NOISE LEVEL @ 50%

18.4 dBA

NOISE LEVEL @ 100%

31.2 dBA

EFFICIENCY

85% Typically

80 PLUS RATING

80 PLUS Standard 230V EU

ERP 2014 LOT 3

Yes

OPERATING TEMPERATURE

40C

POWER GOOD SIGNAL

100-500ms

HOLD UP TIME

>14ms at 100% full [email protected]

MTBF

>100,000 Hours

PROTECTIONS

OVP, OPP, SCP, UVP, OTP

REGULATORY

CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB

ATX 24-PIN CONNECTORS

1

SATA CONNECTORS

6

PERIPHERAL 4-PIN CONNECTORS

3

PCI-E 6+2 PIN CONNECTORS

2

SERIE

MWE Series

80 PLUS

Standard

MODULAR

Non Modular

WATTAGE

500 to 750W
