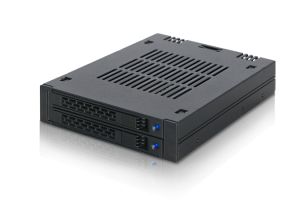

The ExpressCage MB742SP-B brings dense 2.5 SSD or HDD storage
to the floppy 3.5 bay. With the rising popularity of SFF
(Small-Form-Factor) systems due to space-savings and lower power usage, a
convenient and protective data storage enclosure is necessary to
maintain the critical data stored in the system. The ExpressTray
MB742TP-B drive caddy supports tool-less drive installation, and it has
been designed to hold your drives securely, with an enhanced tool-less
drive gripping mechanism, stabilized drive insertion design, and a
strengthened single-piece latch. The new metal chassis has all-around
air ventilation to keep your drives running cool all day, even under
heavy load.
|
|
|
Space Saver
|
|
 |
|
Utilizing the small space of
the external 3.5 drive bay (floppy bay), the MB742SP-B is perfect for
applications where space is limited. Small-Form-Factor (SFF) PCs,
embedded systems, Box PCs, in-vehicle systems, and home servers can all
benefit from this dual 2.5 SAS/SATA drive enclosure. The two drives are
also in an ideal position to be used in a RAID setup when combined with
a RAID card or software RAID solution. A RAID 1 setup can be used to
prevent drive failure, and is excellent for sensitive data, or having a
backup of your OS drive. A RAID 0 setup is ideal for applications that
require high-speeds, such as in a gaming computer or photo/video editing
system. Maximize your speed and security while minimizing your space
footprint with MB742SP-B.
|
|
Innovative New Tray Caddy Design
|
 |
The ExpressTray MB742TP-B in the MB742SP-B is designed for
applications where drive hot-swap is required, while providing security
and durability. Grips on the sides of the caddy hold your drives
securely, to keep your sensitive data safe.
|
 |
|
The unique built-in screws
allow for entirely tool-less drive installation and removal, to allow
for quick and easy swapping of drives.
|
 |
|
In addition, for applications
that require extra stability, we have provided the optional bottom screw
holes so you can hold your drives even more securely.
|
 |
|
The strong, single-piece latch
pops out with the press of a button, making it easy to remove your
drives. The integrated drive activity light shines solid blue when
powered, and flashes blue when the drive is in use, so you know when
its safe to remove your drives.
|
|
|
|
Versatile Utility &Security
|
|
 |
We understand that the first priority for any
storage enclosure must be security of your data. Thats why the
MB742SP-B uses a metal enclosure for maximum protection from bumps and
drops. The heat-dissipating properties of the enclosure, combined with
the amply placed ventilation holes, keep your drives running cool all
day, even under heavy load.
|
 |
The ExpressCage MB742SP-B supports both 7-pin
SATA data and 15-pin SATA power cables with locking latches, so youll
never need to worry about cables unintentionally disconnecting from your
enclosure. Once these cables are connected, theyll lock into place and
stay that way.
|
|
|
Drive Tray
|
|
 |
|
ExpressTray MB742TP-B for ExpressCage MB742SP-B Drive Tray
|
|
|
|
|
Key Features
|
|
|
Rugged metal housing with durable ABS caddies for maximum security and protection
Fits 2x 5mm, 7mm, &9.5mm 2.5 SATA HDD/SSDs, and installs into a single 3.5 external bay (floppy bay)
Multi-Flow Technology provides excellent passive cooling
Accommodates 2.5" drives with 5mm, 7mm &9.5mm height
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
Advanced ExpressCage drive caddy MB742TP-B with a new drive-gripping mechanism, strengthened
single-piece latch, and tool-less drive installation
Removable drive caddy system for easy maintenance
Supports SATA 6Gbps or SAS 3.0 12Gbps (single channel)
Supports SATA data and power cables with locking latches
A Single SATA power cable powers both drives, reducing cable clutter
Backed by 3-year manufacturer warranty
| |
