Gigabyte GB-BRi3H-8130 (rev. 1.0) BRIX / Ultra Compact PC Kit

Gigabyte GB-BRi3H-8130 (rev. 1.0) BRIX / Ultra Compact PC kit

Overview

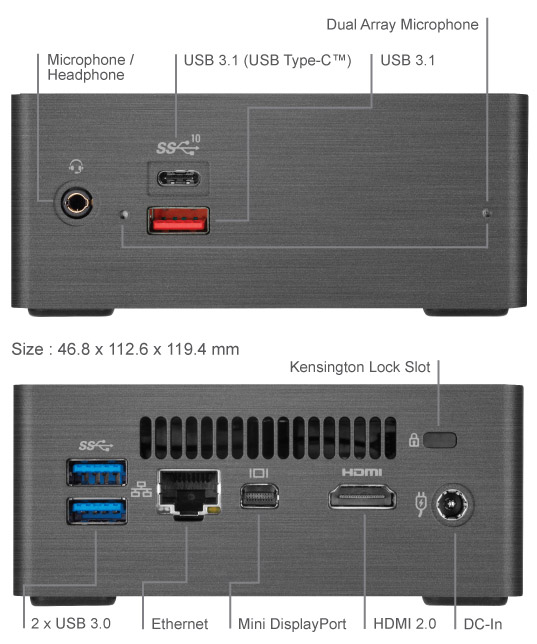

• Features IntelCore Dual Core i3-8130U
• Ultra compact PC design at only 0.63L (46.8 x 112.6 x 119.4mm)
• Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

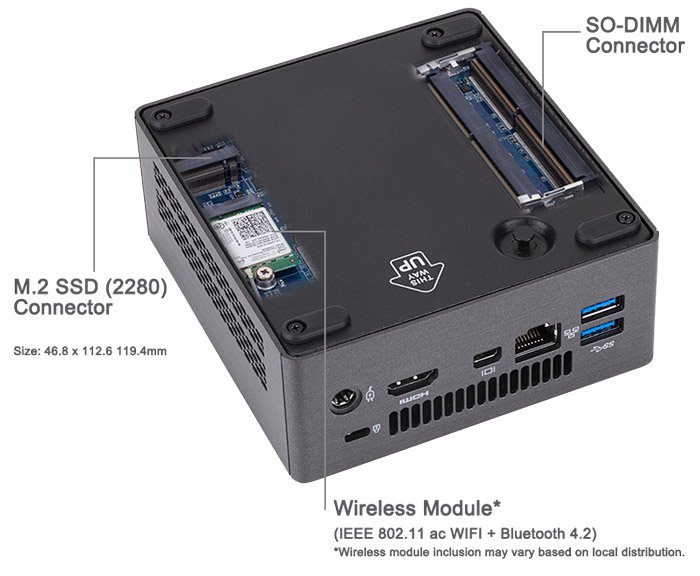

• 1 x M.2 SSD (2280) slot
• 2 x SO-DIMM DDR4 slots
• IntelIEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
• HDMI plus Mini DisplayPort Outputs (Supports dual displays)
• 2 x USB 3.1 (1 x USB Type-C)
• 2 x USB 3.0
• Intel Gigabit LAN
• Dual Array Microphone
• Headphone Jack
• VESA Mounting Bracket (75 x 75mm + 100 x 100mm)

The Perfect Fit for Any Space

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.

Intel8^thGeneration Core Processors

GIGABYTE BRIX supports 8^thGeneration IntelQuad-core processors which feature power-efficient 15W IntelCore i5 and i7 models. From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX provides a broad range of usage scenarios and the ultimate space flexibility . Energy efficient Quad-core delivers up to 40% faster performance compared to 7^thgen processors!

Intel Turbo Boost Technology

GIGABYTE BRIX offers more computing power than ever with Intel's new 14nm processors, which comes with IntelTurbo Boost Technology 2.0. Itaccelerates processor and graphics performance for peak loads, automatically allowing processor cores to run faster than the rated operating frequency if they're operating below power, current, and temperature specification limits, gives users an extra burst of performance when needed. In addition, the integrated memory controller provides a direct connection between the DDR4 2400MHz memory and the processor for fast data processing.

Connecting the Future - USB Type-C: The World's Next Universal Connector

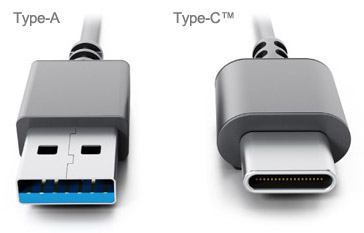

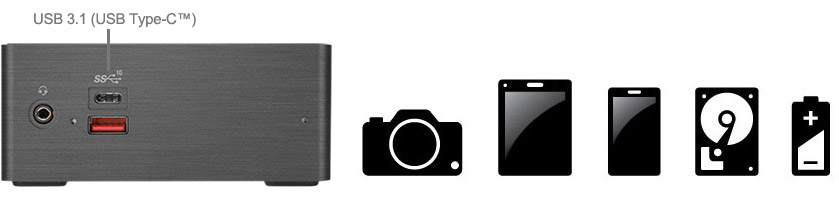

Reversible USB Type-Câ„¢ with USB 3.1

The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed.

USB 3.1 and Network Connectivity

GIGABYTE BRIX also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.

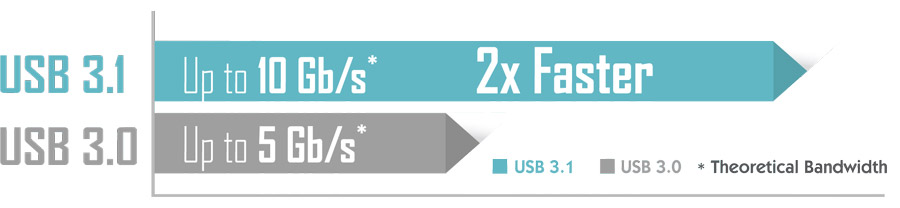

Fast USB 3.1 Solution

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

SuperSpeed 4K HD Entertainment

Supporting the Newest Standards in Multimedia

GIGABYTE ensures users wont be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2* users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.

Multi-display productivity with HDMI 2.0 & DisplayPort++

BRIXsupports up to three independent displays through HDMI 2.0 and a DisplayPort ++ without the need for an additional graphics card. Support for three display is only possible with daisy-chain connections through Display Port++.

Graphics that Captivate

IntelHD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals. This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors. The BRIX now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.

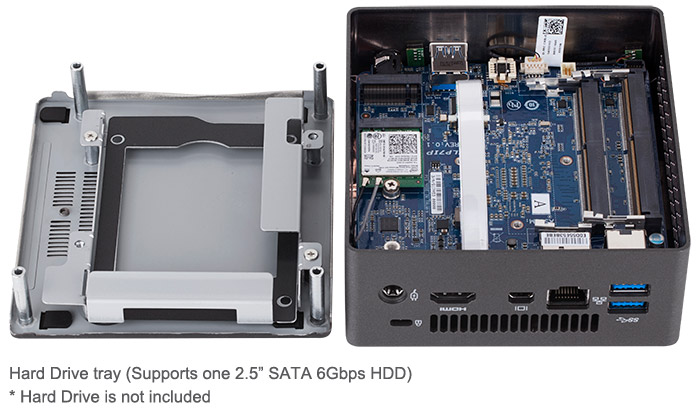

2.5" Hard Drive Support

Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5 SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module. This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5 hard drive.

Join The Optane Revolution

GIGABYTE BRIX supports Intels latest Optane technology, which provides advantages including high throughput, low latency, high quality of service, and high endurance. This solution comes in a module format and uses Intel Optane technology, based on 3D XPoint Memory Media along with the Intel RST driver. Optane memory accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This non-volatile memory transforms the everyday PC to a performance driven system.

Enjoy Always Available Responsiveness With IntelReady Mode Technology

Now theres no waiting to resume activity on your PC. With IntelReady Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep-a quiet, low power state similar to the kind used by your cell phone and tablet.

Access Your Digital Files - From Anywhere, Anytime

Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.

Get Help From Your Digital Assistant Just by Asking

An always available PC complements Microsoft Windows10 enabled experiences Cortana*. When you need Cortana*, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.

Keep Everything Up-to-Date With Automatic Syncing

Set your IntelReady Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.

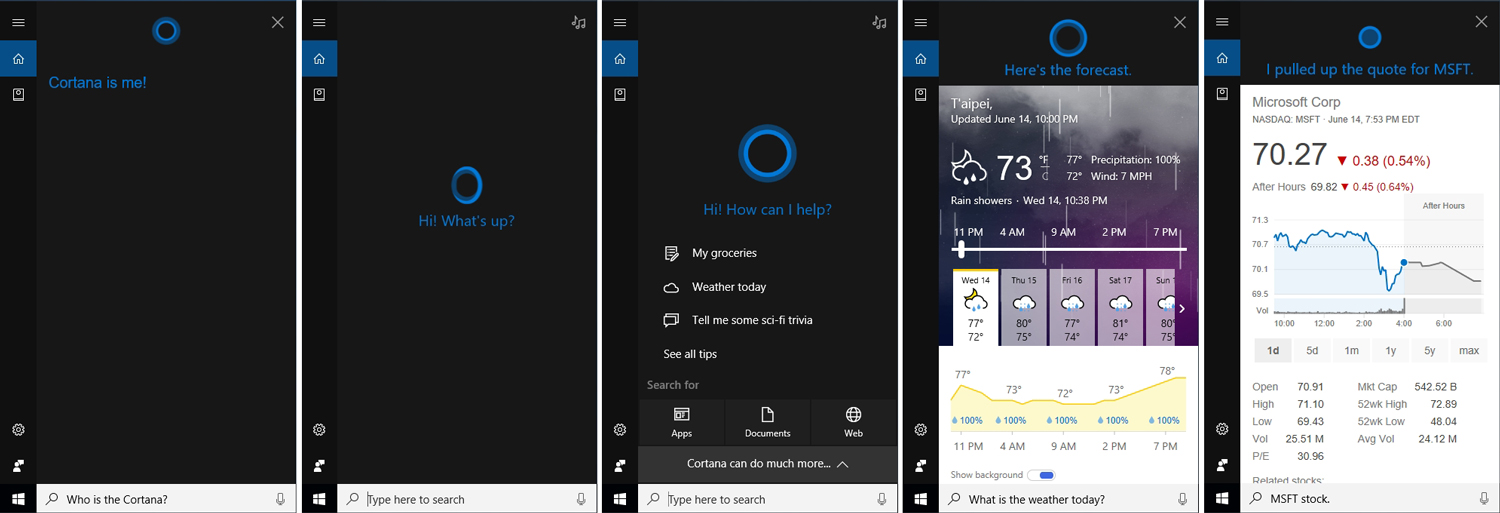

Support Cortana

GIGABYTE BRIX with built-in dual array microphone can support Windows10 Cortana. Cortana is your digital agent, she'll help you get things done. The more you use Cortana, the more personalized your experience will be. To get started, type a question in the search box, or select the microphone and talk to Cortana. If youre not sure what to say, youll see suggestions both on your lock screen and in Cortana home when you select the search box on the taskbar.

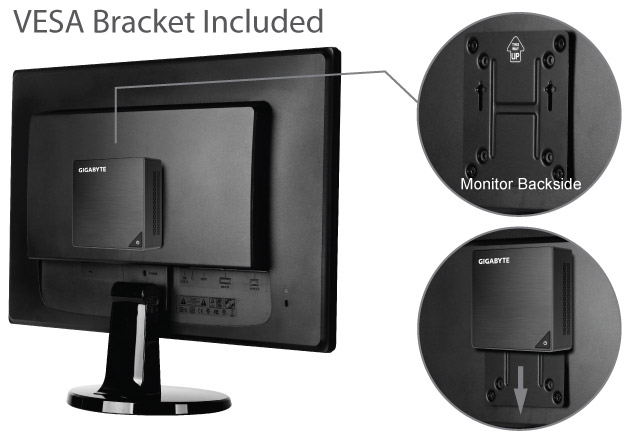

VESA Support

Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

Specifications
