Thermaltake CA-1I7-00F1WN-02 View 71 Tempered Glass RGB Plus Edition
Full Tower Chassis
Design
Designed to expand the legacy of the View Series lineup, the View 71 Tempered
Glass RGB Plus Edition full-tower chassis features three 120mm Riing Plus 12 RGB
front fans and one 120mm Riing Plus 12 RGB rear fan for outstanding ventilation,
and its seven drive trays with modular drive racks deliver advanced storage
capacity and liquid cooling expansion. This elegantly designed piece utilizes
swing-out side panels, and is enclosed in four-side 5mm tempered glass for users
to demonstrate their DIY handiwork and enjoy the ultimate internal component
visibility. With supports for the latest PC hardware, the View 71 TG RGB Plus
Edition is not only fascinating in appearance, and when it comes to performance,
the only thing that will limit its capabilities is users imaginations.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that
combines the most advanced addressable LED lighting with Thermaltakes patented
TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited
possibilities for playing with colors, synchronizing lights to games, music, CPU
temperatures or other TT RGB PLUS products, including case fans, CPU/VGA
waterblocks, AIO CPU coolers, PSUs, LED strips, gaming keyboards, headsets, mice
and mouse pad. The patented software allows users to change the light modes,
colors, speeds, brightness, fan speeds, and even supports AI voice control in
iOS and Android devices.

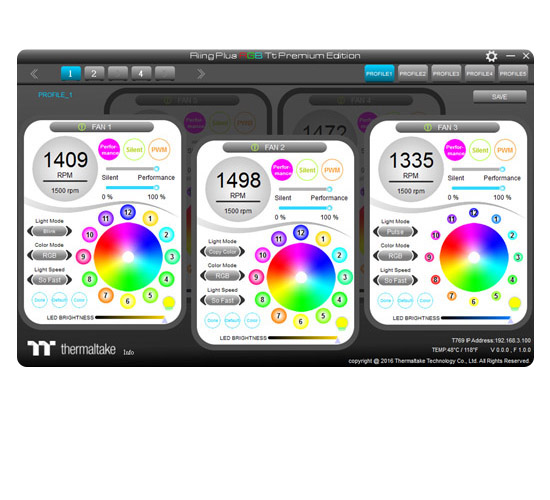

Patented TT RGB PLUS Software & App
Monitor the fan performance, adjust the fan speeds, and customize the
lighting effects for Thermaltake Plus RGB liquid cooling products with the
patented TT RGB PLUS Software and an exclusively designed mobile app. Choose a
function from below and scroll down to read the details.
Compatibility:
- For desktop: Requires TT RGB PLUS Software 1.1.5 version or later.
-
For iOS: Requires iOS 10.0 or later.
-
For Android: Requires Android 6.0.0 or later with screen resolution 1920 x
1080.
SyncALL, Say “Hello TT” Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier, faster way to set lights for your
systems. You can ask it to turn the lights on or off, switch lights modes, dim
the lights, change light colors, or adjust lights speeds or fan speeds.
Compatibility:
- For desktop: Requires TT RGB PLUS Software 1.1.5 version or later.
-
For iOS: Requires iOS 10.0 or later.
-
For Android: Requires Android 6.0.0 or later with screen resolution 1920 x
1080.
Preinstalled with 4 Riing Plus 12 RGB Fans
Thermaltake Riing Plus 12 Fan TT Premium Edition. 120mm high-static pressure
fans with a patented 16.8 million colors LED ring and 12 addressable LEDs, the
Riing Plus 12 RGB features compression blades and hydraulic bearing, and can be
controlled by the patented TT RGB PLUS Software and AI interactive voice
control.
Profiles
Conveniently control all devices and customize the lights at the same time by
setting up to five profiles for each controller. Each controller your system
connected is displayed at the top left of the interface for you to quickly
access. Within each profile, you can check which device is set to what operating
mode and lighting effect. You can even SAVE and apply the settings to other
controllers your system is running.
Works with Razer Chroma
All Thermaltake TT RGB PLUS products are able to connect into the Razer
Chroma ecosystem. Users who have installed both the TT RGB PLUS Software and
Razer Synapse 3 can experience synchronized gaming and RGB lighting effects on
their TT RGB PLUS liquid cooling system and gaming gear! From cooldown timers,
health bars, and flashy ultimate indicators, to subtle ambient lighting that
sets the perfect mood for each game, Razer Chroma provides an experience that
transcends the screen and into your full setup, for a truly immersive
experience.
*At
least one Razer Chroma product and one TT RGB PLUS product is required for
synchronization.
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service,
allowing you to control the lights or fan speeds by talking to the Alexa-enabled
device. With the support of Amazon Alexa, TT RGB PLUS products also offer an
additional visual cue for checking current weather condition in your location or
anywhere in the world. All you have to do is simply starting the sentence with
Alexa, tell Thermaltake, then the lighting color will correspond to the weather
condition in the location.
High-End Complete Solution
The View 71 TG RGB Plus Edition allows users to build a complete high-end
system that supports motherboards up to standard E-ATX with high-wattage PSU up
to 220mm length. With extended graphic card support (up to 410mm), the case
simultaneously protects the hardware and increases the CPUs overclocking
potential for users looking to get the most out of their hardware.
Riser GPU Support Bracket
Specially designed for dual GPU placement options, the View 71 TG RGB Plus
Edition has support for vertical graphic card layout with dual vertical PCI-E
slots. The integrated riser GPU support bracket not only prevents the graphic
card from sagging, but also helps to reduce the weight on the motherboard PCI-E
slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) Supports a wide range of
GPU solutions. This is an extreme high-speed cable with highly-routable design,
EMI shielding with conducting polymer are crafted for meeting the most demanding
system. Available in 300mm, 600mm and 1000mm length.
Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious
view of custom loop or all-in-one radiator applications with vertical radiator
viewing. Supporting proper placement for 120mm and 140mm radiator applications
up to 420mm in length, gain more compatibility when pairing up both CPU and GPU
cooling solutions. Take on even more with custom loop options for enthusiast
grade cooling, fitment and flow.
Four-Sided 5mm Thick Tempered Glass Panels with Swing Door
Design
Premium-quality 5mm thick tempered glass guarantees the durability of the
window and adds overall strength to the chassis. Swing Doors on either side
allow user easy access to the internal components as well as the ability to
remove the doors entirely for complete access to the internals.
Tool-Free Installation
Innovative 3.5 and 2.5 tool-free drive bay design minimizes the hassles of
installation/removal, allowing users to freely interchange the 3.5 and 2.5
storage drives to secure and store with ease.
Advanced Ventilation
With wide top-to-bottom side ventilation grills, the View 71 TG RGB Plus
Edition maximizes airflow with four built-in 120mm Riing RGB Plus fans.
Including options for up to three 120mm or two 140mm front fans, combined with
two bottom mount 120mm fan locations and top rails to mount up to three 120 or
140mm fans.
AIO/DIY Liquid Cooling Capable
The View 71 TG RGB Plus Edition has plenty of space for advanced AIO/DIY
liquid cooling components. The case natively supports all types of AIO liquid
cooling solutions. The case has the capability to house up to triple 420mm
liquid cooling radiators and up to 360mm AIO liquid coolers. Most importantly,
the case design is optimized for providing users a quick way to access the drain
valve without having to tilt the entire PC when draining coolant from the
loop.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need
them with our modular design. The View 71 TG RGB Plus features modular panels,
racks, brackets, and pre-design mounting arrays. No more unreachable screw
corners or gaps, installation can be a breeze with our Dismantlable Modular
Design.
Radiator Supporting List
Radiator Compatibility
List |
|
120 mm |
240 mm |
360 mm |
140 mm |
280 mm |
420 mm |
Front |
|
|
|
|
|
|
Top |
|
|
|
|
|
|
Rear |
|
- |
- |
|
- |
- |
Right |
|
|
|
|
|
|
Bottom |
|
|
- |
- |
- |
- | |
All-in-One
Compatibility List (Water 3.0 and Floe series) |
|
Performer |
Pro |
240 Series |
360 Series |
140
Series |
280
Series |
Front |
- |
- |
- |
- |
- |
- |
Top |
|
|
|
|
|
|
Rear |
|
|
- |
- |
|
- |
Right |
|
|
|
|
- |
- |
Bottom |
- |
- |
- |
- |
- |
- | |
Fan Supporting List
Fan Compatibility List |
|
120mm |
140mm |
200mm |
Front |
3 |
2 |
- |
Top |
3 |
3 |
- |
Rear |
1 |
1 |
- |
Bottom |
2 |
- |
- | |
Thermaltake Compatible
Fan |
|
120mm |
140mm |
200mm |
Pure Fan Series |
|
|
- |
Luna Fan Series |
|
|
- |
Riing Fan Series |
|
|
- | |
Specifications
Model |
View 71 TG RGB
Plus |
P/N |
CA-1I7-00F1WN-02 |
Case
Type |
Full
Tower |
Dimension (H x W x
D) |
592 x 274 x 577
mm |
(23.3 x 10.8 x 22.7
inch) |
Net
Weight |
19.3 kg / 42.55
lb |
Side
Panel |
5mm Tempered Glass x 4
(Left & Right & Front & Top) |
Color |
Exterior & Interior
: Black |
Material |
SPCC |
Cooling
System |
Rear (exhaust)
: |
120 x 120 x 25 mm Riing
Plus RGB fan |
(500-1500rpm,
24.7dBA) |
Front (intake)
: |
120 x 120 x 25 mm Riing
Plus RGB fan |
(500-1500rpm, 24.7dBA)
x3 |
Drive
Bays |
2.5 x 4 or 3.5x4 (HDD
Rack) |
2.5x 6 or 3.5 x
3 |
Expansion
Slots |
8+2 |
Motherboards |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX) |
I/O
Port |
USB 3.0 x 2, USB 2.0 x
2, HD Audio x 1 |
PSU |
Standard PS2 PSU
(optional) |
Fan
Support |
Front: |
3 x 120mm , 2 x
140mm |
Top: |
3 x 120mm , 3 x
140mm |
Rear: |
1 x 120mm, 1 x
140mm |
Bottom: |
2 x
120mm |
Radiator
Support |
Front: |
1 x 360mm , 1 x
420mm |
Top: |
1 x 360mm , 1 x
420mm |
Rear: |
1 x 120mm, 1 x
140mm |
Right: |
1 x 360mm, 1 x
420mm |
Bottom: |
1 x
240mm |
Clearance |
CPU cooler height
limitation: 190mm |
VGA length limitation:
310mm(With HDD Rack) |
410mm(Without HDD
Rack) |
PSU length limitation:
220mm (Without Bottom Fan) |
