All stock codes associated to this product
CA1N500M1WN00, CA-1N5-00M1WN-00

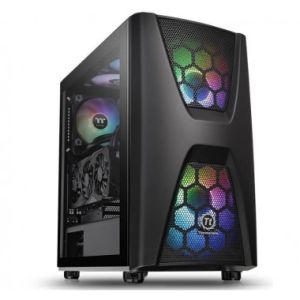

Thermaltake CA-1N5-00M1WN-00 Commander C 34 Dual 200MM ARGB Fans
Tempered Glass ATX Mid-Tower Chassis
Design
- Two Built-in 200mm 5V ARGB Front Fans
- Built-in ARGB Switch Board for Different Lighting Modes
- Built-in Power Cover
- Superior Hardware Support
- I/O Port Supports Dual USB 3.0
- Excellent Cooling Capability with 2-Way Radiator Mounting up to 360mm
- Gaming Design, Mesh Front Panel
- Riser GPU Support Bracket
- 4mm Tempered Glass Side Panel
- Supports both ARGB Color Synchronization with ASUS, MSI, GIGABYTE, and
ASRock Motherboards, and a RGB color selection button via the I/O Port
Dual Built-in 200mm 5V ARGB Case Fans
Preinstalled with two 200mm 5V ARGB front fans featuring hydraulic bearing, 9
addressable LEDs and 16.8 million-color illumination to guarantee high airflow
and custom system designs to show off your PC design skills.
One Click, Switching The Mode
The 5V ARGB fans can be controlled using a simple interface built into the
I/O panel that cycles through 7 different lighting modes and a range of
different color options.
- Wave Mode [Mode 1] RGB wave flows across the entire fan. Color mode cannot
be changed while on wave mode.
- Long press on RGB button for 3 seconds, fans will blink twice which now
are controlled by MB software, and vice versa.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic
Light Sync and ASRock Polychrome. It supports motherboards that have a 5V
addressable RGB header, allowing you to control the lights directly from the
above-mentioned software without installing any extra lighting software or
controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock
official websites.
Asus - Aura Addressable Header
Gigabyte - Digital Pin Header
MSI - JRAINBOW Header
Asrock - Addressable RGB LED Header
Angular, Mesh Front Panel
Expanded from the gaming spirit of the classic Commander MS-I chassis, the
uniquely design full mesh panel optimized airflow. With its modern design and
high performance, it is the best choice for both gamers and enthusiasts.
Riser GPU Support Bracket
Specially designed for dual GPU placement options, Commander C Series has the
support for vertical graphic card layout with dual PCI-E slots design.
Integrated riser GPU support bracket not only prevents the graphic card from
sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
Built-in PSU Cover
Equipped with a PSU cover with a ventilated design to improve airflow and
hide those unsightly cables.
Seamless Tempered Glass Panel
The tempered glass side panel of the Commander C31 is built to be more
durable and scratch resistant than older acrylic panels.
Superior Hardware Support
The Commander C31 has outstanding expandability with support for a tower CPU
cooler with maximum height 180mm, a dual expansion slot VGA of up to 310mm in
length with reservoir, and a power supply with length of up to 200mm.
Excellent Cooling Capability
Optimized for excellent cooling capability with two 200mm 5V ARGB front fans
and one 120mm standard rear fan. The case is able to house up to two 200mm, two
140mm or three 120mm front fans, up to two 140mm fans on top to allow users
build a complete high-end system.
Handy I/O Ports
Dual 3.0 USB ports on top-front panel to grant direct access when needed. As
well as an ARGB button for controlling 7 lighting modes of ARGB fans.
Specifications
|
Model |
Commander C34 TG
ARGB |
|
P/N |
CA-1N5-00M1WN-00 |
|
Case
Type |
Middle
tower |
|
Dimension (H x W x
D) |
462 x 233 x 533
mm |
|
(18.2 x 9.2 x 21
inch) |
|
Net
Weight |
7.86 kg / 17.33
lb |
|
Side
Panel |
4mm Tempered Glass
x1 |
|
Color |
Exterior & Interior
: Black |
|
Material |
SPCC |
|
Cooling
System |
Rear (exhaust)
: |
|
120 x 120 x 25 mm
fan |
|
(1000rpm, 16
dBA) |
|
Front (intake)
: |
|
200 x 200 x 30 mm ARGB
fan x2 |
|
(800rpm, 29.2
dBA) |
|
Drive
Bays |
|
|
-Accessible |
- |
|
-Hidden |
3 x 3.5 or 2.5 (HDD
Bracket); 2 x 2.5 (HDD Bracket) |
|
Expansion
Slots |
7 +
2 |
|
Motherboards |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
|
I/O
Port |
USB 3.0 x 2, HD Audio x
1, RGB Switch x 1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
Fan
Support |
Front: |
|
3 x 120mm, 2 x 140mm, 2
x 200mm |
|
Top: |
|
2 x 120mm, 2 x
140mm |
|
Rear: |
|
1 x
120mm |
|
Radiator
Support |
Front: 1 x 360mm, 1 x
280mm |
|
Top: 1 x 240mm, 1 x
280mm |
|
Rear: 1 x
120mm |
|
Clearance |
CPU cooler height
limitation: 180mm |
|
PSU length limitation:
200mm |
|
VGA length limitation:
310mm(With reservoir) 410mm(Without reservoir) |
|
VGA width
limitation(Vertically): 45mm |
|
VGA height limitation:
110mm |
|
RAM height limitation:
35mm (With 140mm radiator series) 50mm (With 120mm radiator
series) |
