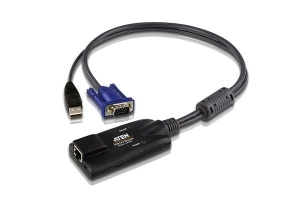

Aten KA7570 USB VGA KVM Adapter
Overview
- Keyboard and mouse emulation - keeps your server functioning smoothly when
it is disconnected from the switch's KVM port or relocated to different KVM
port
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Hot pluggable - add or remove computers without having to power down the
switch
The KA7570 USB KVM Adapter Cable connects the KVM switch to the video and USB
ports of the target computer. With its small form factor and light weight
design, it fits perfectly into most of the rack-mount or desktop servers.
Package Contents
- 1x KA7570 USB KVM Adapter Cable (CPU Module)
- 1x Rack Mount Kit
- 1x Rack Mounting Guide
Features
- Keyboard and mouse emulation - keeps your server functioning smoothly when
it is disconnected from the switch's KVM port or relocated to different KVM
port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Hot pluggable - add or remove computers without having to power down the
switch.
- Compact size
* This maximum resolution may vary depending on the transmission
distance. For more details, please refer to the product pages of the connected
KVM switches.
Diagram
Specfications
|
Connectors |
|
Link |
1 x RJ-45
Female |
|
Computer |
1 x USB
Male |
|
1 x HDB-15
Male |
|
LEDs |
|
Online |
1
(Green) |
|
Power |
1
(Orange) |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.15 kg ( 0.33 lb
) |
|
Dimensions
(L x W x H) |
9.00 x 4.30 x 2.18
cm |
|
(3.54 x 1.69 x 0.86
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
