All stock codes associated to this product
VE172RATU, VE172R-AT-U, ATVE172RATU, ATVE172R-AT-U

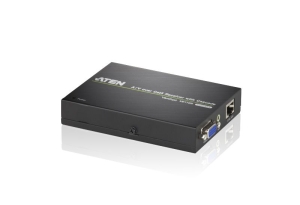

Aten VE172R VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m)
Overview
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m);
1280x1024@ 60Hz (150 m)
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus
Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10
levels make long distance transmissions up to 500 feet (150m).
Compatible Transmitter Units:
- VE170T A/V Over Cat 5 Transmitter
- VS1204T A/V Over Cat 5 Transmitter
- VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
- VE172R A/V Over Cat 5 Receiver with Cascade
- VE170R A/V Over Cat 5 Receiver
- VE170RQ A/V Over Cat 5 Receiver with Deskew
Package Contents
- 1x VE172R A/V Over Cat 5 Receiver with Cascade
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Features
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality 1920x1200 @ 60Hz 100feet(30 m);1600x1200 @ 60Hz 330
feet(100 m); 1280x1024@ 60Hz 500 feet(150 m)
- Audio enabled (mono)
- Adjustable gain/compensation control manually adjusts signal strength to
compensate for distance
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Diagram
Specifications
Video
Output |
Interfaces |
1 x HDB-15 Female
(Blue) |
Impedance |
75
|
Video |
Max.
Bandwidth |
300
MHz |
Max.
Resolutions / Distance |
Up to 1920 x 1200@30m;
1280 x 1024@150m |
Audio
Outputs |
1 x Mini Stereo Jack
Female (Green) |
Connectors |
Power |
1 x DC Jack
(Black) |
Power
Consumption |
DC5.3V:2.29W:11BTU |
Environmental |
Operating
Temperature |
0 -
50C |
Storage
Temperature |
-20 -
60C |
Humidity |
0 - 80% RH,
Non-Condensing |
Physical
Properties |
Housing |
Metal |
Weight |
0.24 kg ( 0.53 lb
) |
Dimensions
(L x W x H) |
12.77 x 9.04 x 2.26
cm |
(5.03 x 3.56 x 0.89
in.) |
Carton
Lot |
5
pcs |
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
