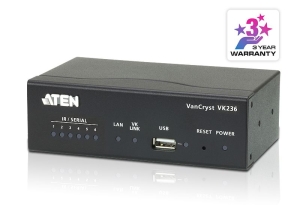

ATEN VK236 6-Port IR/Serial Expansion Box
  • Programmable IR / Uni-directional RS-232 Port(6), 2-Pole Terminal Block Connector(2), USB Type A

IMG 1 of 1
Our Price:
$855.60
RRP:
$929.01
You Save:
$73.41
or quickly purchase this product
Backorder
Part Number:
448718
(?) Brand:
ATEN
Manuf No:
VK236-AT
VK236AT
Shipping Weight:
0.45 KG (Includes product packaging)
Estimate Shipping
Date Added:
20/9/2019
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VK236AT, VK236-AT

Aten VK236 6-Port IR/Serial Expansion Box



Overview

  • Provides 6 IR/Serial ports to expand the ATEN Control System
  • ID Switch pairs the VK236 with a controller to instantly configure the network settings
  • Up to eight VK236 expansion boxes can be added to a single Control Box
  • Supports Power over Ethernet (PoE) or DC power supply

The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

Package Contents

  • 1x VK236 6-Port IR/Serial Expansion Box
  • 1x Mounting Kit
  • 6x Terminal Blocks
  • 1x User Instructions

Features

  • Provides 6 IR/Serial ports to expand the ATEN Control System
  • Up to eight VK236 expansion boxes can be added to a single Control Box
  • Flexible Deployment: Connects to a Control Box via an Ethernet connection
  • ID Switch pairs the VK236 with a controller to instantly configure the network settings
  • Supports Power over Ethernet (PoE) or DC power supply
  • Firmware upgradable through USB or Web interface

Diagram

Specifications

Interfaces

IR/Serial

6 x Programmable IR / Uni-directional RS-232 Port

6 x 2-Pole Terminal Block Connector

IR: TTL level (0 to 5 V)

Carrier Frequency: 10KHz~455KHz;

Serial: Uni-directional RS-232 ( + - 5 V)

Baud Rate: 300 to 115200 (default: 9600);

Data Bit: 8 (default) or 7;

Stop Bit: 1 (default) or 2;

Parity: None (default), Even or Odd

Ethernet

1 x RJ-45 Female, 10/100Base-T

Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:

IP: 192.168.0.60

Subnet Mask: 255.255.255.0

Switches

Controller ID

1 x 16-segment Switch

Expander ID

1 x 8-segment Switch

Reset Button

1 x Semi-recessed Pushbutton

USB

1 x USB Type A (Firmware upgrade only)

Power Consumption

DC5V:1.31W:17BTU

DC48V:1.64W:18BTU

Environmental

Operating Temperature

0 50C

Storage Temperature

20 60C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.45 kg ( 0.99 lb )

Dimensions (L x W x H)

13.00 x 7.58 x 4.20 cm

(5.12 x 2.98 x 1.65 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
