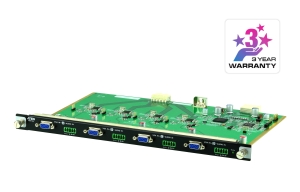

ATEN VM7104 4-Port VGA Input Board - For VM1600/VM3200

IMG 1 of 1
Our Price:
$2,001.75
RRP:
$2,009.00
You Save:
$7.25
or quickly purchase this product
Backorder
Part Number:
448725
(?) Brand:
ATEN
Manuf No:
VM7104-AT
VM7104AT
Shipping Weight:
0.56 KG (Includes product packaging)
Estimate Shipping
Date Added:
21/9/2019
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VM7104AT, VM7104-AT

Aten VM7104 4-Port VGA Input Board



Overview

  • Connects up to 4 VGA or Component inputs
  • Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility
  • Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
  • Hot-swappable design for easy integration of I/O boards

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesnt need to be powered off when the board is changed.

Package Contents

  • 1x VM7104 4-Port VGA Input Board
  • 4x Terminal Block Connectors
  • 1x User Instructions

Features

  • Connects up to 4 VGA or Component inputs
  • Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
  • Hot-swappable design for easy integration of I/O boards
  • Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility

Diagram

Specifications

Video Input

Interfaces

4 x HDB-15 Female (Blue)

Impedance

75

Max. Bandwidth

300 MHz

Max. Resolution

Up to 1920 x 1200

Max. Distance

1.8 m

Audio Inputs

Interfaces

4 x Captive Screw Connectors, 5 pole

* Audio signal type: stereo, balanced/unbalanced.

Power Consumption

7.1W:33BTU

Environmental

Operating Temperature

040C

Storage Temperature

-2060C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.56 kg ( 1.23 lb )

Dimensions (L x W x H)

35.20 x 23.80 x 2.33 cm

(13.86 x 9.37 x 0.92 in.)

Note

Audio signal type support stereo, balanced/unbalanced.

Balanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm )

Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
