Transcend TS1TSSD230S SATA III 6Gb/s SSD230S - 1TB
Overview
Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that
features vertical, stacked expansion of storage cells. By using high-quality
flash memory and enhanced firmware algorithms, the SSD230S delivers greater
performance and reliability.

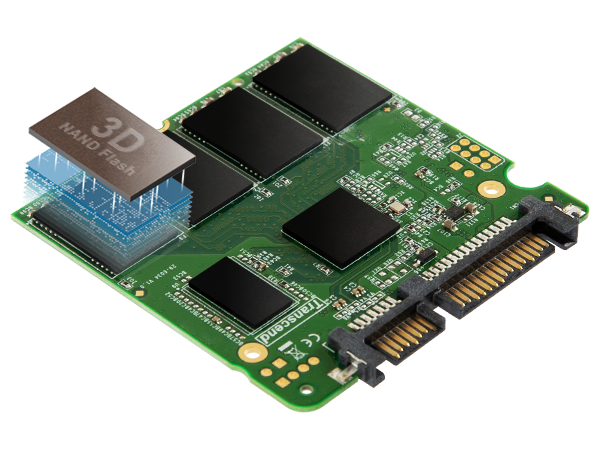

3D expansion to break through limits
Unlike planar NAND memory, 3D NAND flash features memory cells stacked
vertically in multiple layers. 3D NAND overcomes density limitations of 2D
planar NAND, and delivers a higher level of performance and endurance.
Performance boost for everyday computing

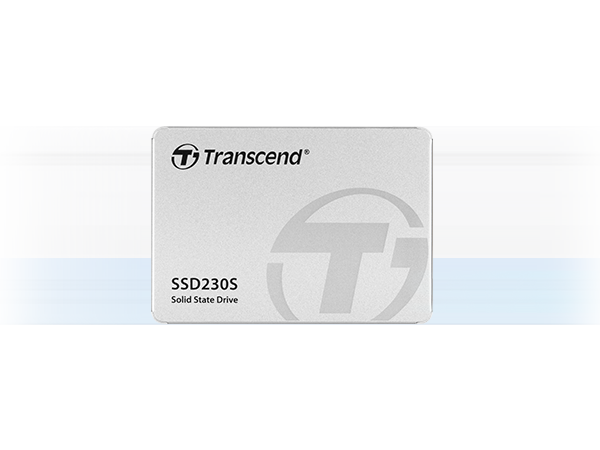

Taking full advantage of the SATA III 6Gb/s interface and built-in SLC
caching technology, Transcend's SSD230S achieves exceptional transfer speeds of
up to 560MB/s read and 520MB/s write.
Guaranteed endurance and reliability
Transcend's SSD230S offers great Terabytes Written (TBW) values (up to 1,120
TB) indicating the total amount of data you can write into the drive over its
lifetime.
- RAID engine and LDPC coding
- Detects and corrects transfer errors to prevent data corruption in
TLC-based SSD products
- Garbage Collection
- Relocates existing data to release memory blocks
- Wear-leveling
- Distributes data evenly across memory cells to prolong SSD's
lifespan
- DevSleep
- Intelligently shuts down SATA interface when not in use to prolong
device's battery life
- DDR3 DRAM cache
- Stores a temporary copy of the most active data to shorten access
times
A better choice than HDD
Solid-state drives dominate the market for PC upgrades because they are
faster and lighter than hard disk drives. SSDs also feature less power, create
less noise when in operation, and are more shock-resistant than traditional hard
drives.

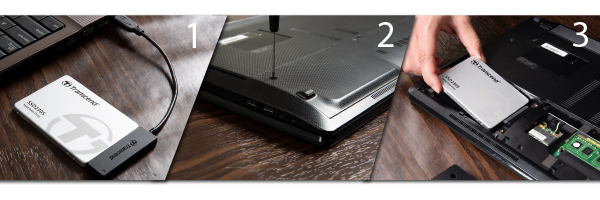

3 easy steps to upgrade your PC
Transcend's SSD230S measures just 6.8mm in height and features short access
times, making it a perfect choice for upgrading desktops, laptops, and the
latest gaming consoles in just 3 easy steps!
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to
ensure your Transcend SSD remains healthy, and continues to run fast and
error-free by determining the condition and optimizing the performance of your
drive.
Guaranteed quality
Transcends solid state drives are built to the highest standards and
rigorously tested, and offer outstanding quality, performance, and
reliability.
Specifications
|
Appearance |
|

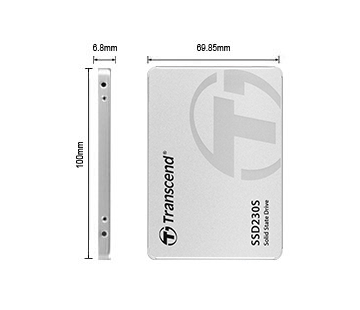

Dimensions |
100 mm x 69.85 mm x 6.8
mm (3.94" x 2.75" x 0.28") |
|
Weight |
53 g (1.87
oz) |
|
Storage |
|
Flash
Type |
3D NAND
flash |
|
Capacity |
1TB |
|
Operating
Environment |
|
Operating
Temperature |
0C (32F) ~ 70C
(158F) |
|
Operating
Voltage |
5V5% |
|
Performance |
|
Sequential Read/Write
(CrystalDiskMark) |
560/500
MB/s |
|
4K Random Read/Write
(IOmeter) |
85,000/85,000
IOPS |
|
Terabytes Written
(TBW) |
560
TBW |
|
Mean Time Between
Failures (MTBF) |
1,000,000
hour(s) |
|
Drive Writes Per Day
(DWPD) |
0.3 (5
yrs) |
|
Note |
Speed may vary due to
host hardware, software, usage, and storage capacity. |
|
The workload used to
rate DWPD may be different from your actual workload, which may vary due
to host hardware, software, usage, and storage
capacity. |
|
For Mac users
please visit our Apple Solutions
here. |
|
Warranty |
|
Certificate |
CE/ |
|
FCC/ |
|
BSMI |
|
Warranty |
Five-year Limited
Warranty |
|
Warranty
Policy |
Please click
here for more information about the Transcend Warranty
Policy. |
|
Warranty does not apply
when SSD Scope's wear-out indicator displays 0% within the warranty
coverage. |
|
Package |
|
Package
Contents |
Full
unit |
|
System
Requirement |
|
Operating
System |
Microsoft Windows
7 |
|
Microsoft Windows
8 |
|
Microsoft Windows
10 |
|
Linux Kernel 2.6.31 or
later |
|
Technology |
|
TRIM & NCQ
Command |
Yes |
|
S.M.A.R.T. |
Yes |
|
DDR3 DRAM
Cache |
Yes |
|
Advanced Garbage
Collection |
Yes |
|
DevSleep
Mode |
Yes |
|
RAID
Engine |
Yes |
|
LDPC
Coding |
Yes |
