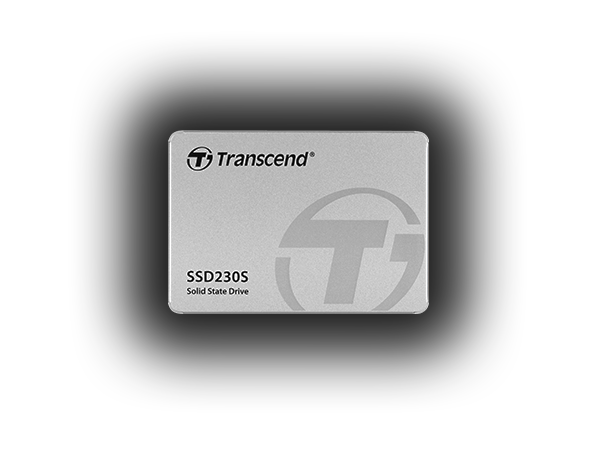

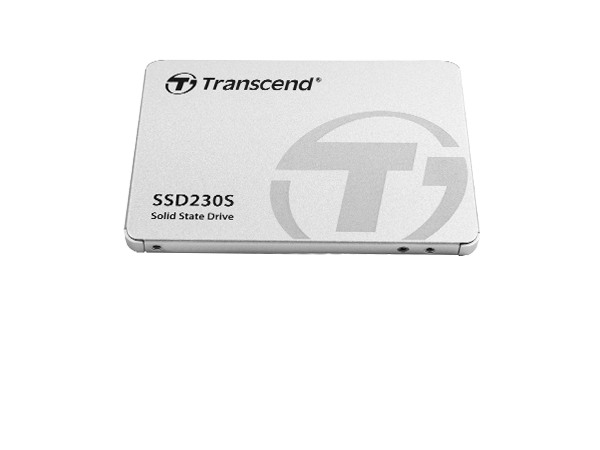

Transcend TS512GSSD230S SATA III 6Gb/s SSD230S - 512GB



Overview

Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD230S delivers greater performance and reliability.

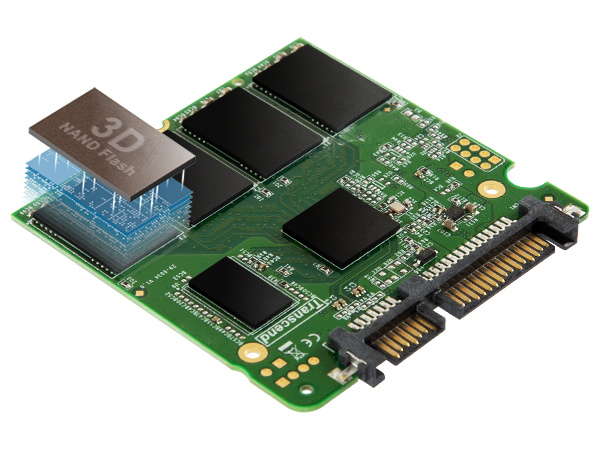

3D expansion to break through limits

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.

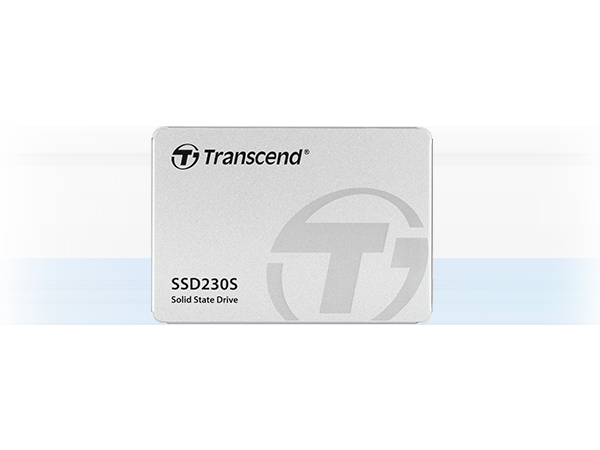

Performance boost for everyday computing

Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD230S achieves exceptional transfer speeds of up to 560MB/s read and 520MB/s write.

Guaranteed endurance and reliability

Transcend's SSD230S offers great Terabytes Written (TBW) values (up to 1,120 TB) indicating the total amount of data you can write into the drive over its lifetime.

  • RAID engine and LDPC coding
    • Detects and corrects transfer errors to prevent data corruption in TLC-based SSD products
  • Garbage Collection
    • Relocates existing data to release memory blocks
  • Wear-leveling
    • Distributes data evenly across memory cells to prolong SSD's lifespan
  • DevSleep
    • Intelligently shuts down SATA interface when not in use to prolong device's battery life
  • DDR3 DRAM cache
    • Stores a temporary copy of the most active data to shorten access times

A better choice than HDD

Solid-state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives.

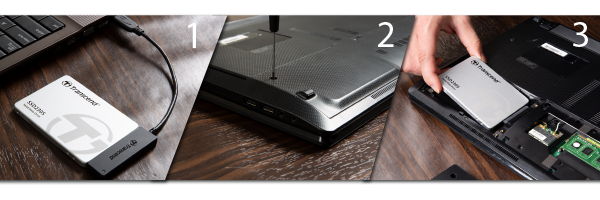

3 easy steps to upgrade your PC

Transcend's SSD230S measures just 6.8mm in height and features short access times, making it a perfect choice for upgrading desktops, laptops, and the latest gaming consoles in just 3 easy steps!

SSD Scope software

Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality

Transcends solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

Specifications

Appearance

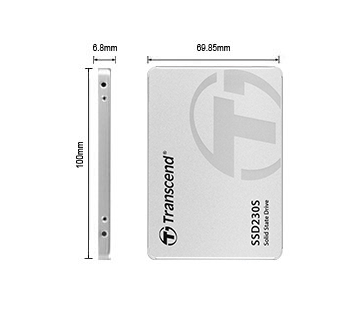

Dimensions

100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")

Weight

53 g (1.87 oz)

Storage

Flash Type

3D NAND flash

Capacity

512GB

Operating Environment

Operating Temperature

0C (32F) ~ 70C (158F)

Operating Voltage

5V5%

Performance

Sequential Read/Write (CrystalDiskMark)

560/500 MB/s

4K Random Read/Write (IOmeter)

80,000/85,000 IOPS

Terabytes Written (TBW)

280 TBW

Mean Time Between Failures (MTBF)

1,000,000 hour(s)

Drive Writes Per Day (DWPD)

0.3 (5 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

For Mac users please visit our Apple Solutions here.

Warranty

Certificate

CE/

FCC/

BSMI

Warranty

Five-year Limited Warranty

Warranty Policy

Please click here for more information about the Transcend Warranty Policy.

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

Package

Package Contents

Full unit

System Requirement

Operating System

Microsoft Windows 7

Microsoft Windows 8

Microsoft Windows 10

Linux Kernel 2.6.31 or later

Technology

TRIM & NCQ Command

Yes

S.M.A.R.T.

Yes

DDR3 DRAM Cache

Yes

Advanced Garbage Collection

Yes

DevSleep Mode

Yes

RAID Engine

Yes

LDPC Coding

Yes
