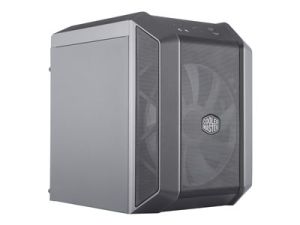

Coolermaster MCM-H100-KANN-S00 Mastercase H100
Overview
A LITTLE GAME-CHANGER
- Compact Mini-ITX
- Fine Mesh Ventilation
- 200mm RGB Fan
- ATX Power Supply Compatible
- Built-In Handle
BUILD TO SPEC

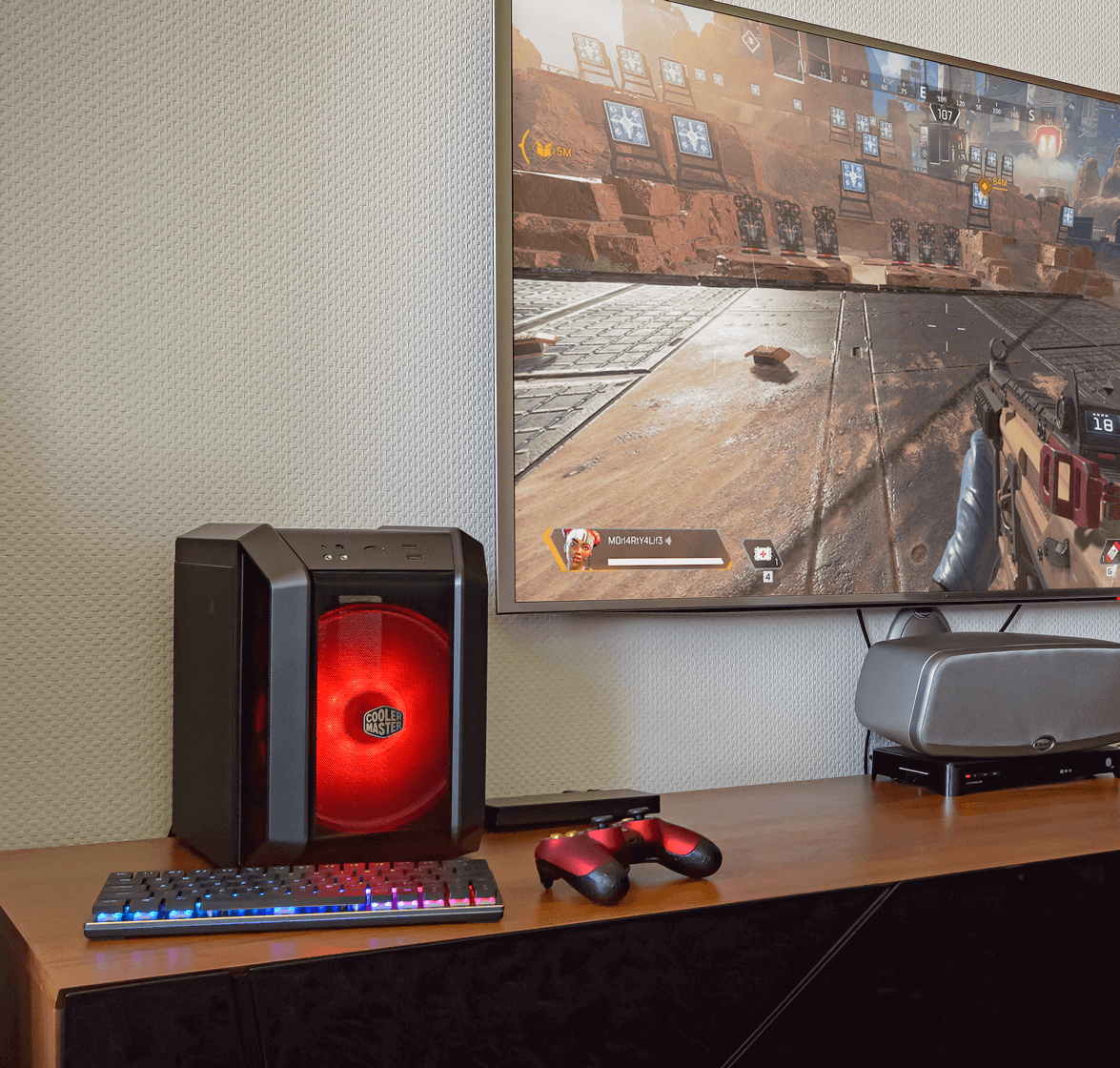

The MasterCase H100 is a conveniently sized mini-ITX case that can be
configured as a portable gaming rig, a tiny living room PC, and a desktop
space-saver. From its industrial construction to its entirely mesh front panel,
the H100 fits neatly in the series as a travel-sized alternative.

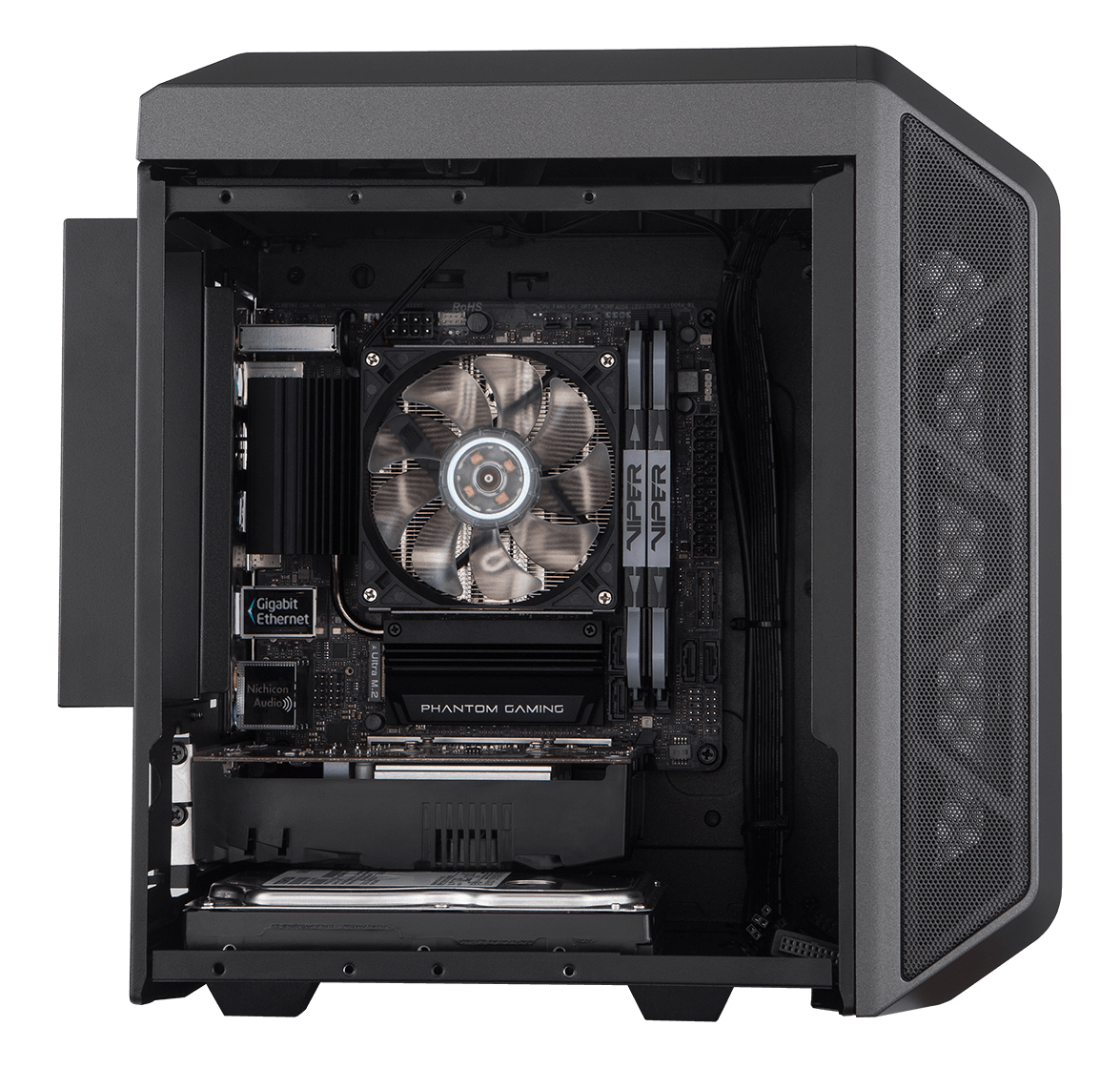

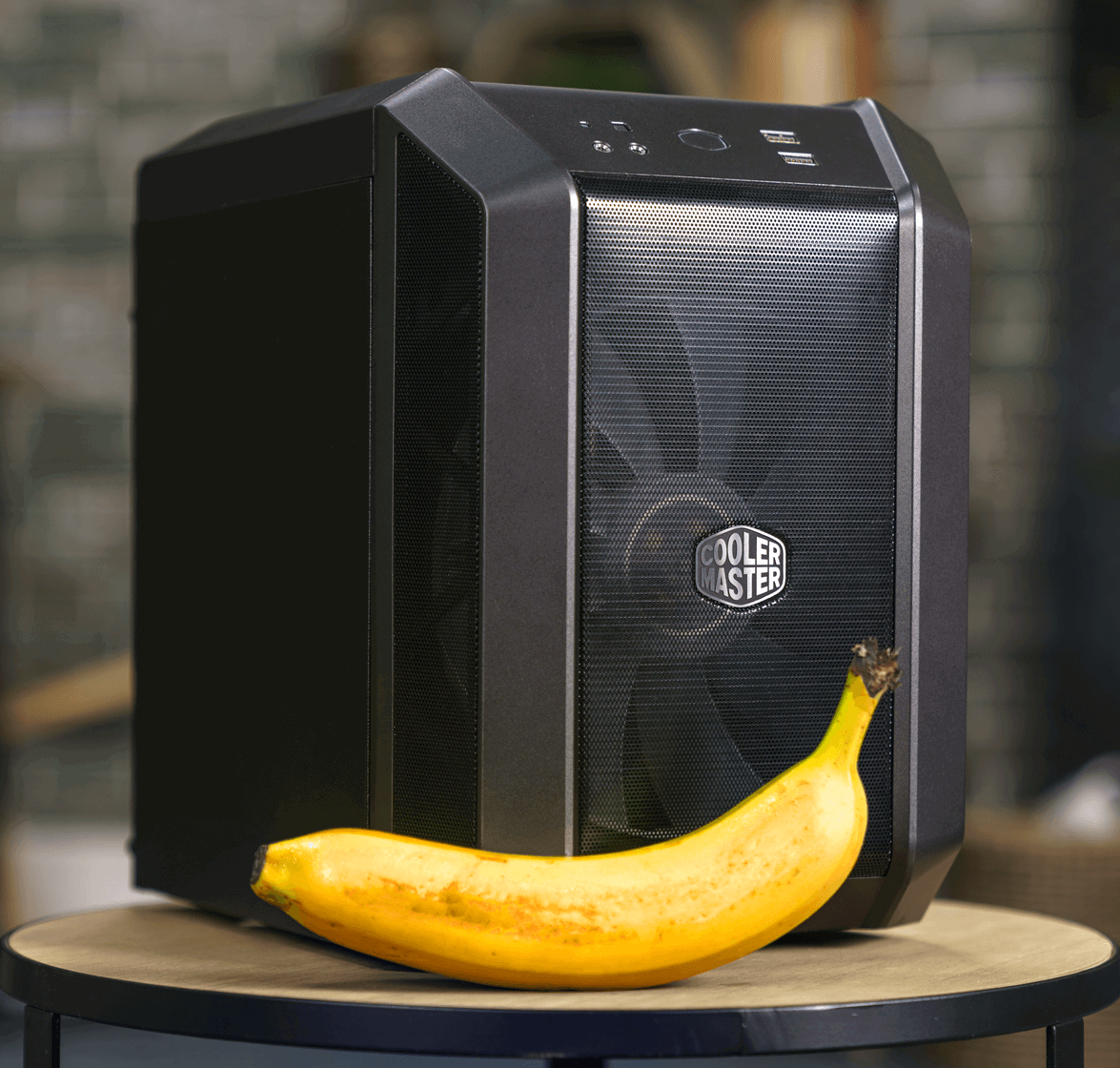

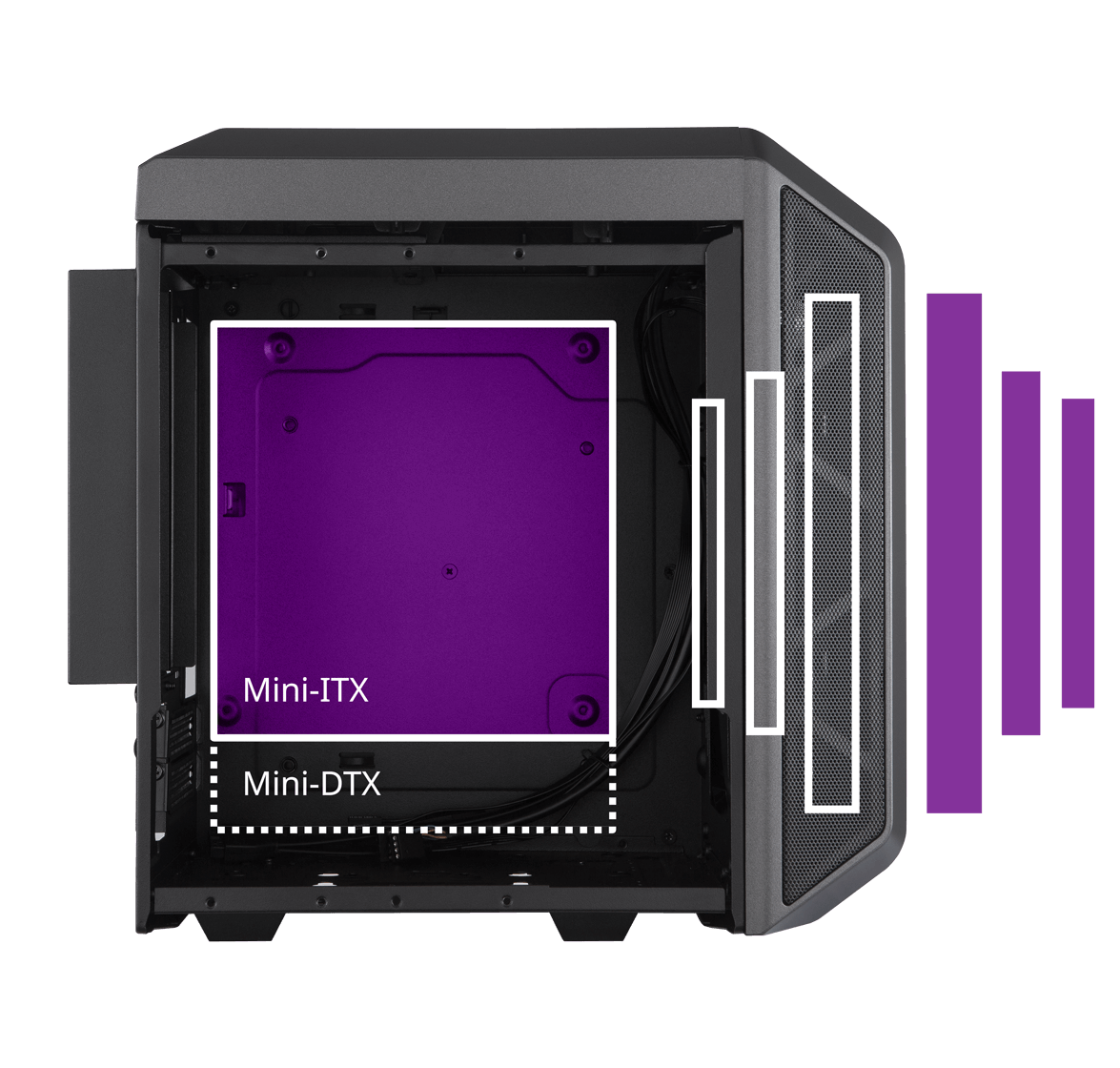

COMPACT MINI-ITX
A highly compact layout efficiently uses space to keep dimensions
minimized.

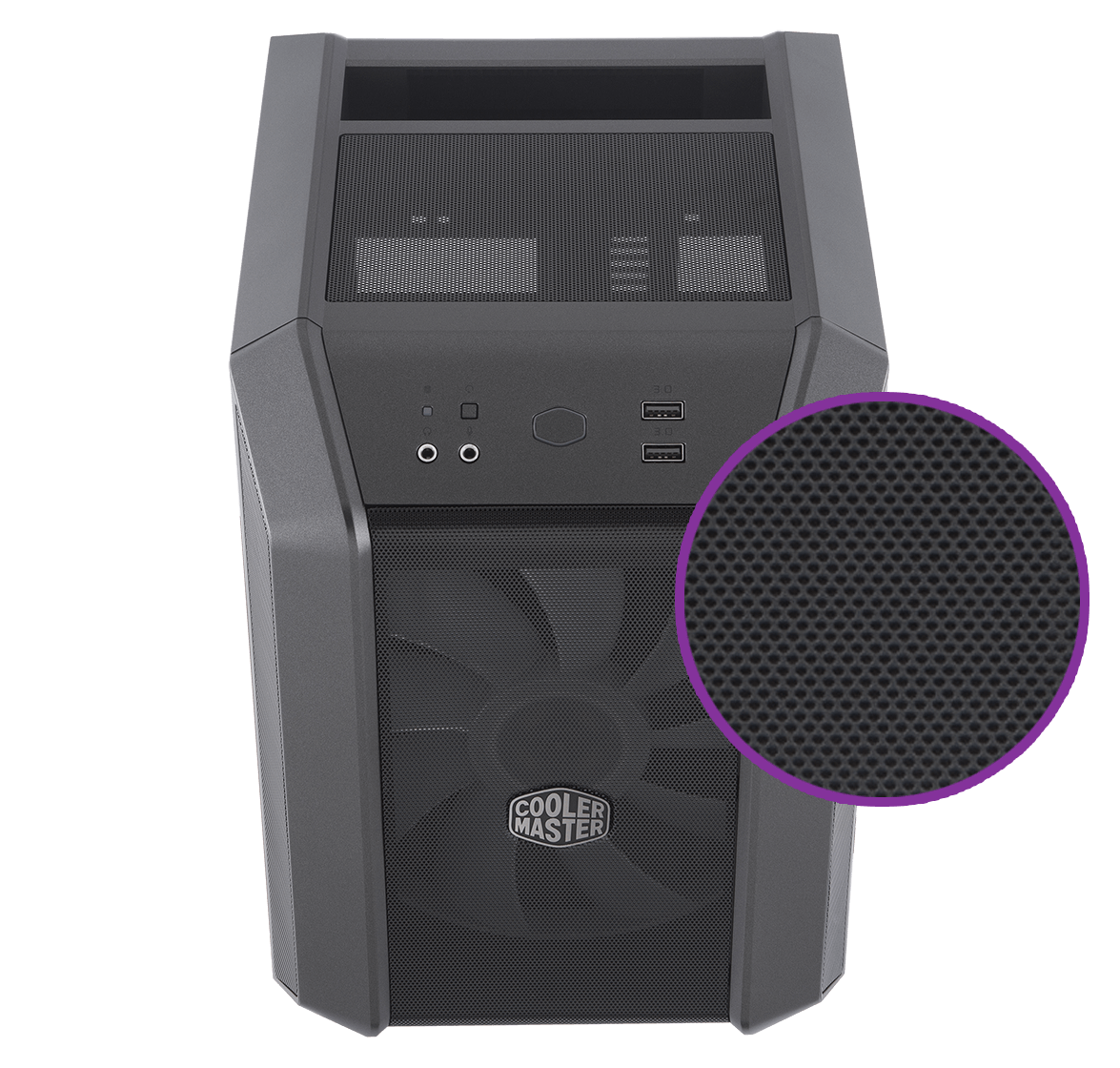

FINE MESH VENTILATION
The entire front panel and part of the top panel features Cooler Masters
signature Fine Mesh, proven to filter out dust, provide unrestricted
ventilation, and makes the cleaning and maintenance process more
efficient.

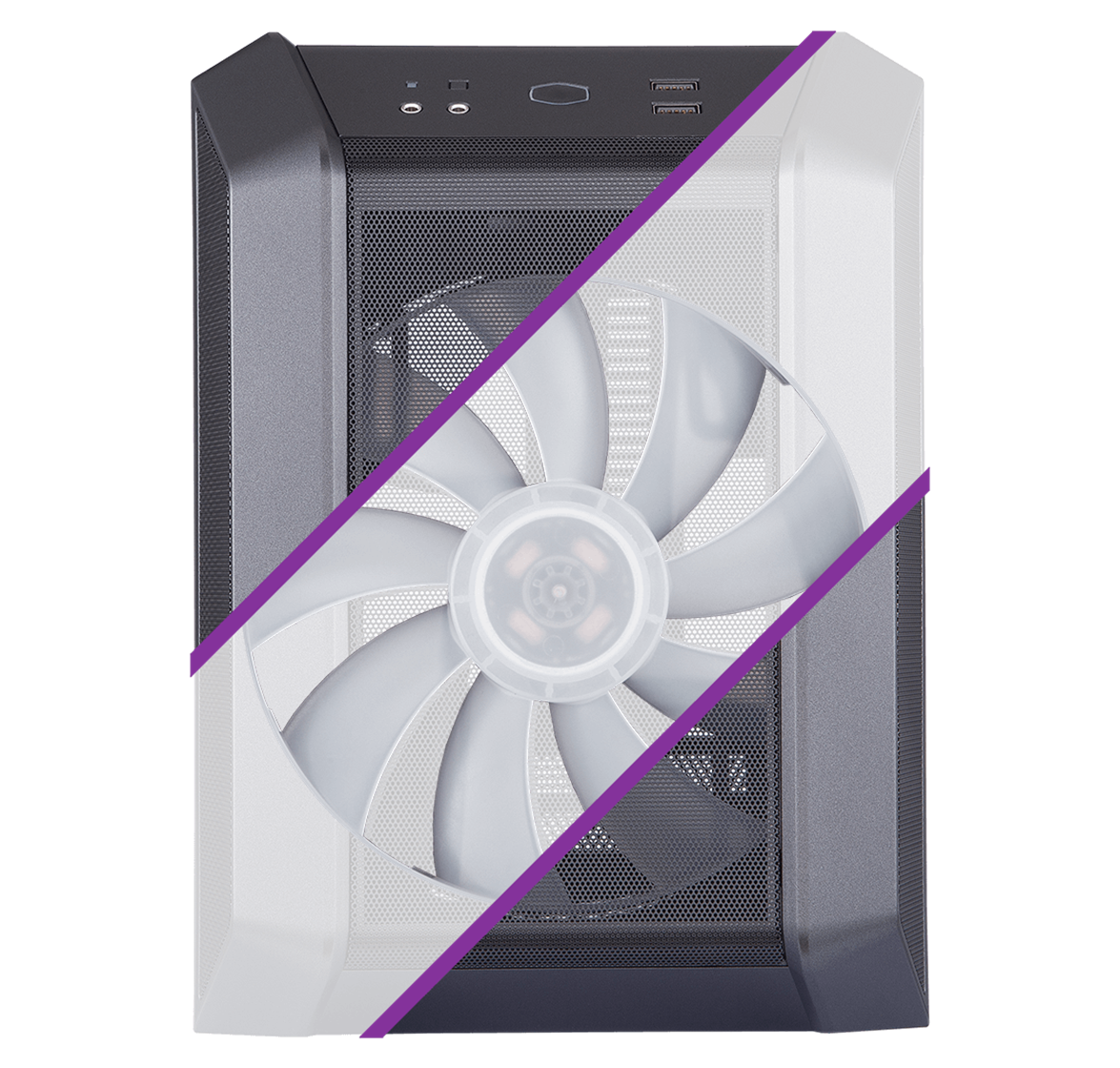

200MM RGB FAN
Even with compact dimensions, the MasterCase H100 features the H-Series
iconic 200mm RGB fan.

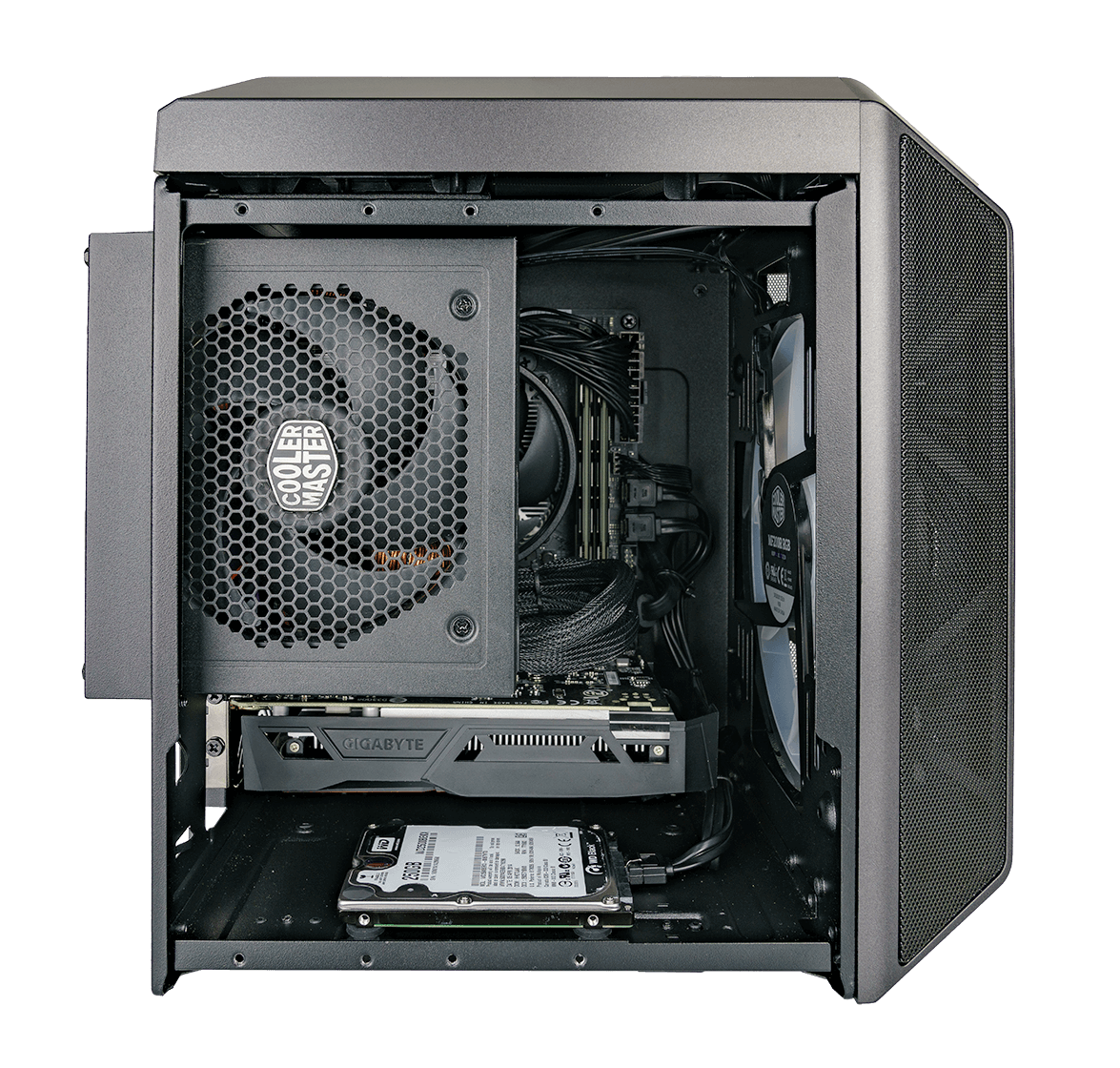

ATX POWER SUPPLY
Full-sized ATX power supplies are supported to improve hardware compatibility
and ensure efficient power to the system.

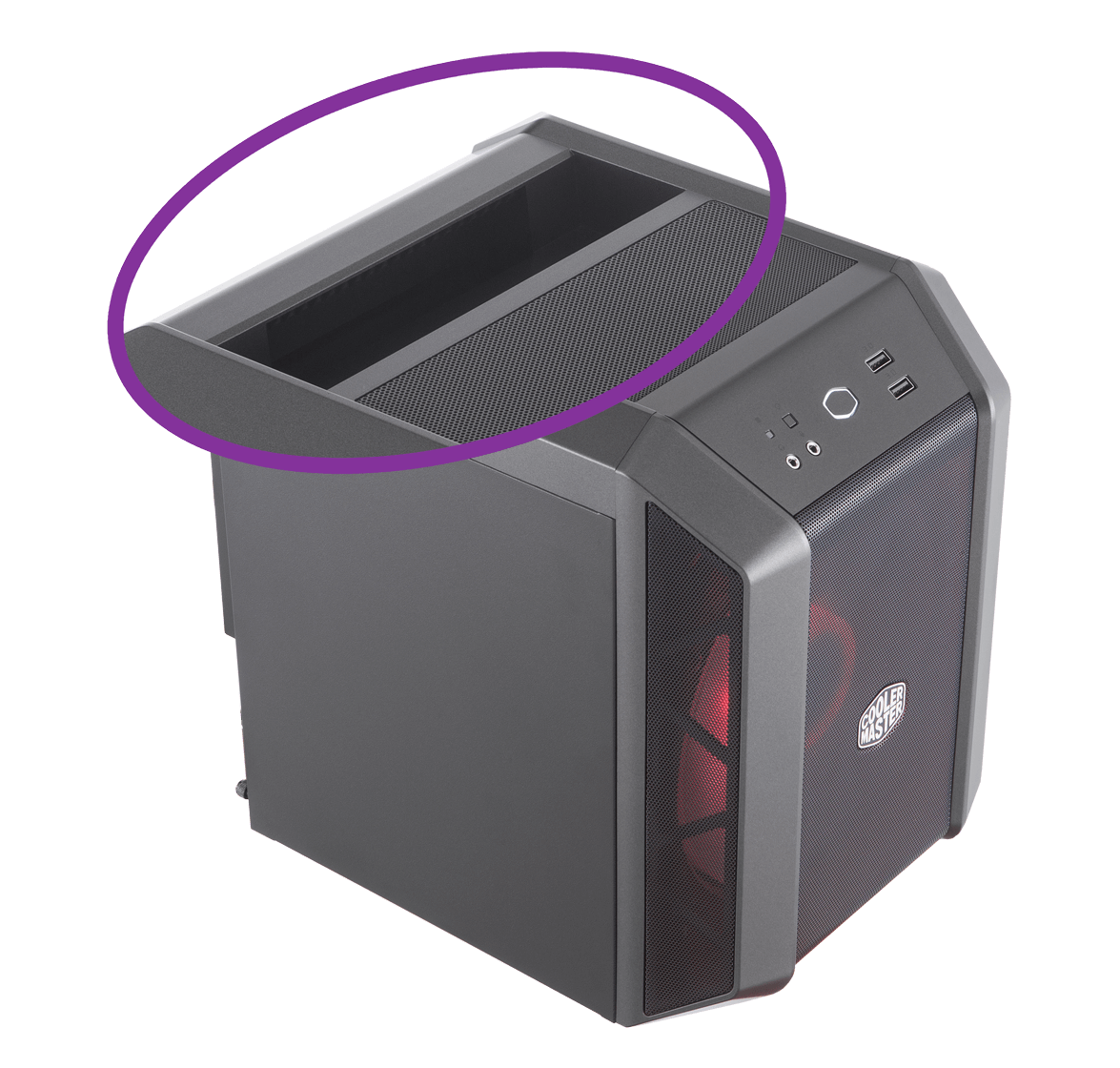

BUILT-IN HANDLE
A handle is built into the top panel for added portability and on-the-go
gaming.

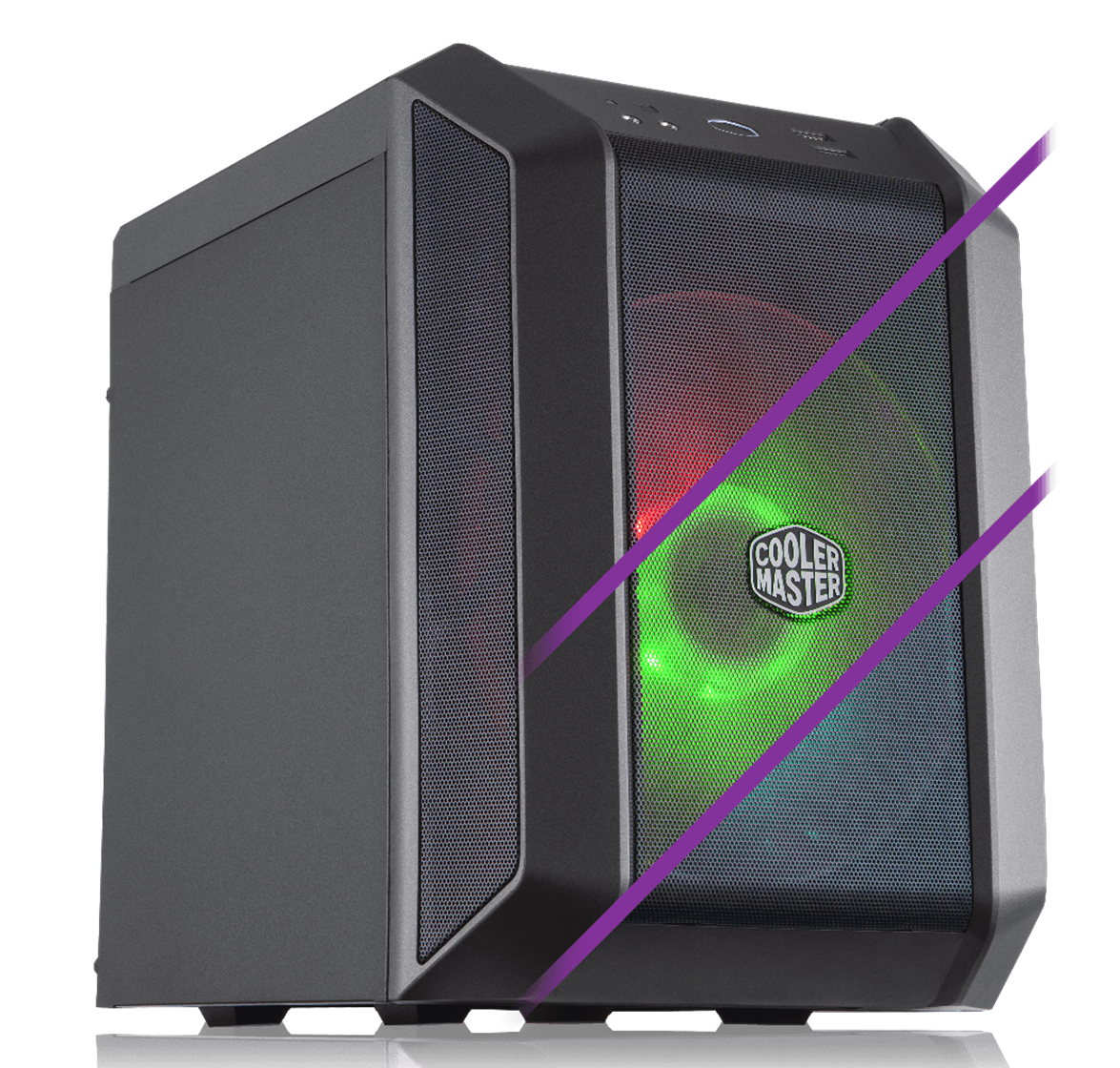

RGB LIGHTING CONTROL
One RGB controller is included in the accessory pack. Lighting can also be
controlled through the reset button if the motherboard does not support RGB
control.
COOLING SUPPORT
Front:
- 120 / 140 / 200mm x 1 Fan
- 120 / 140 / 200 Radiator
COMPONENT CLEARANCES
|
CPU
Cooler |
83mm |
|
Power
Supply |
210mm (without
radiator) |
|
160mm (with
radiator) |
|
Graphics
Card |
210mm (without
radiator) |
|
180mm (with
radiator) |
Specifications
|
MODEL
NUMBER |
MCM-H100-KANN-S00 |
|
SERIES |
MasterCase
Series |
|
SIZE |
Mini
ITX |
|
AVAILABLE
COLOR(S) |
Black, Iron
Grey |
|
MATERIALS |
Steel, Plastic, Steel
mesh |
|
DIMENSIONS
(LXWXH) |
312mm x 216mm x 301mm
(incl. Protrusions), 278mm x 216mm x 294mm (excl.
Protrusions) |
|
MOTHERBOARD
SUPPORT |
Mini
ITX |
|
EXPANSION
SLOTS |
2 |
|
5.25" DRIVE
BAYS |
0 |
|
2.5" / 3.5" DRIVE
BAYS (COMBO) |
1 |
|
2.5" DRIVE
BAYS |
4 (3+1
combo) |
|
I/O
PANEL |
2x USB 3.2 Gen 1
(formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x RGB
Controller |
|
PRE-INSTALLED FANS -
FRONT |
1 x 200mm RGB Fan
(Speed: 800RPM / Connector: 3Pin + RGB 4pin) |
|
FAN SUPPORT -
FRONT |
1x 120mm / 1x 140mm /
1x 200mm |
|
RADIATOR SUPPORT -
FRONT |
120mm, 200mm,
140mm |
|
CLEARANCE - CPU
COOLER |
83mm |
|
CLEARANCE -
GFX |
210mm (w/o radiator
installed), 180mm (with radiator installed) |
|
CLEARANCE -
PSU |
210mm (w/o radiator
installed), 160mm (with radiator installed) |
|
POWER SUPPLY
SUPPORT |
ATX
PS2 |
|
DUST
FILTERS |
Top,
Front |
