All stock codes associated to this product
MCMH500PMGNNS10, MCM-H500P-MGNN-S10, 4719512070185

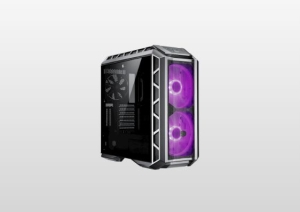

Coolermaster MCM-H500P-MGNN-S10 MASTERCASE H500P Mesh
Case
Overview
MIND-BLOWING DESIGN
- Two 200mm RGB fans behind a Mesh Front Panel
- Covers for Clean Building
- Vertical Graphics Card Mount
- Light Grey Tinted Tempered Glass Side Panel
- Liquid Cooling Ready
- RGB Controler and 1 to 3 Splitter Cable for RGB LED
Fans

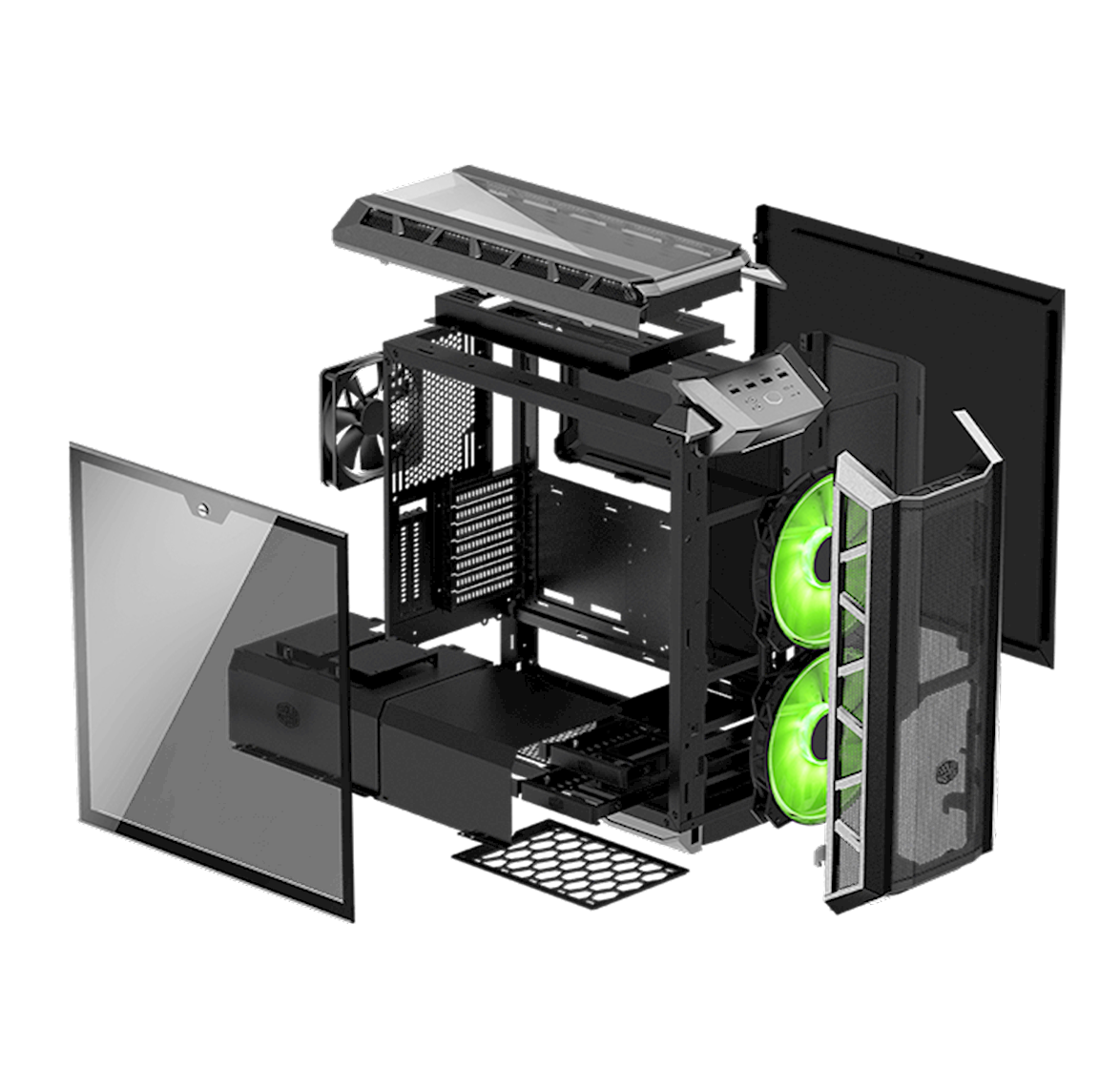

BUILDER FOCUSED
The H500P's design allows for easy disassembly.
All of the panels can be easily taken off, ideal for CaseModders looking to
paint their PC.
TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL
Optimized airflow is guaranteed with a complete mesh front panel, providing
plenty of air intake for the two pre-installed 200mm RGB fans. Use the RGB
lighting to create a captivating build in your preferred color
theme.

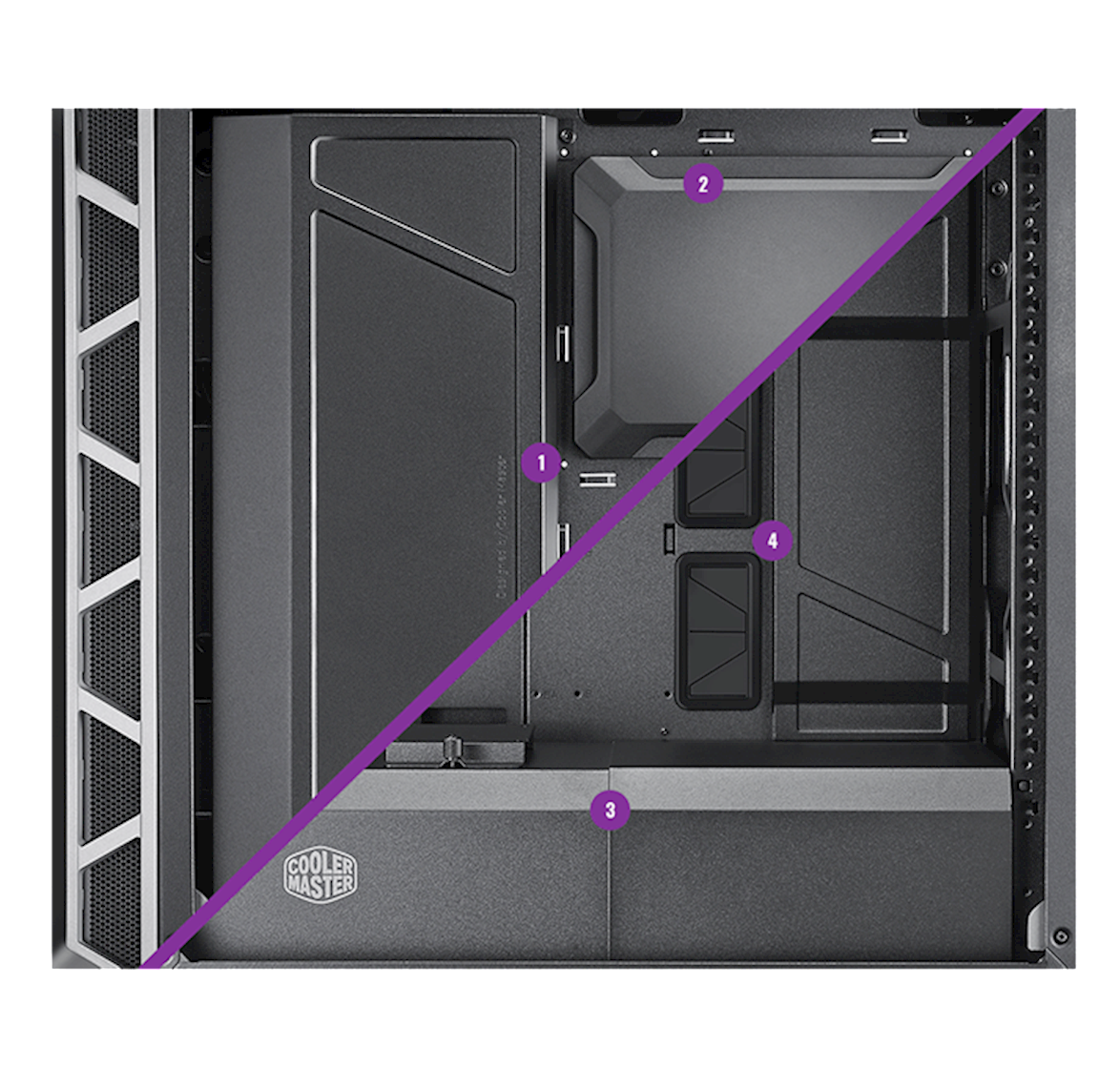

COVERS FOR CLEAN BUILDING
A PSU shroud, the CPU cut out cover and additional cable covers take clean
cable management to the next level. Assemble clean builds like a
pro!
(1) Cable Management Cover
(2) CPU Cut Out Cover
(3) PSU Shroud
(4) Clean Cable Routing
SHOW OFF YOUR GRAPHICS CARD
Two additional PCI slots at the rear enable you to show off one graphics card
in the vertical position.
* Additional Riser Cable needed to use your graphic card
vertically.
CLEAR VIEW INSIDE
The MasterCase H500P Mesh has a light grey tinted tempered glass side panel
and plastic top cover, making it ideal for showcasing your build with (RGB)
lighting.

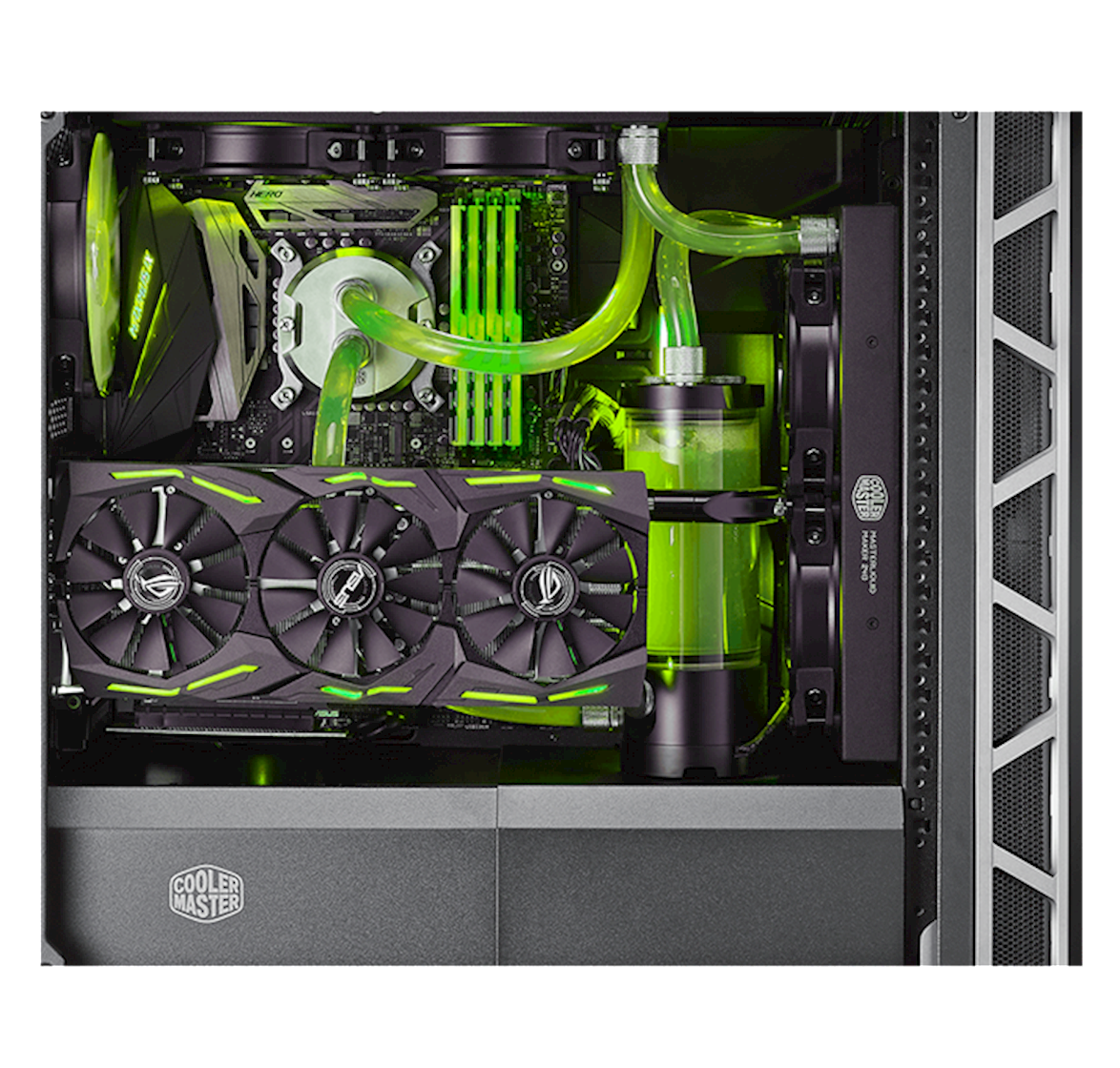

LIQUID COOLING READY
The MasterCase H500P Mesh accommodates up to a 360mm radiator on the top
and
Specifications
|
MODEL
NUMBER |
MCM-H500P-MGNN-S10 |
|
AVAILABLE
COLOR(S) |
Gun
Metal |
|
MATERIALS -
OUTLOOK |
Steel Mesh,
Plastic |
|
MATERIALS -
BODY |
Steel |
|
MATERIALS - SIDE
PANEL |
Tempered Glass,
Steel |
|
DIMENSIONS
(LXWXH) |
544 x 248 x 546mm /
21.4 x 9.8 x 21.5 inch, 544 x 242 x 542mm / 21.4 x 9.5 x 21.3
inch |
|
MOTHERBOARD
SUPPORT |
Mini ITX, Micro ATX,
ATX, E-ATX |
|
POWER SUPPLY
SUPPORT |
ATX, Bottom mount, ATX
PS2 |
|
EXPANSION
SLOTS |
7+2 |
|
5.25" DRIVE
BAYS |
0 |
|
2.5" / 3.5" DRIVE
BAYS (COMBO) |
2 |
|
DRIVE BAYS 2.5"
SSD |
2 |
|
I/O
PANEL |
2x USB 3.0, 2x USB 2.0,
Audio In & Out (supports HD audio) |
|
PRE-INSTALLED FANS -
FRONT |
2x 200 x 25mm RGB Fan,
800RPM |
|
PRE-INSTALLED FANS -
REAR |
1x 140 x 25mm fan,
1200RPM |
|
FAN SUPPORT -
TOP |
3x 120/140mm, 2x
200mm |
|
FAN SUPPORT -
FRONT |
3x 120/140mm, 2x 200mm
Fan |
|
FAN SUPPORT -
REAR |
1x
120/140mm |
|
LIQUID COOLING
SUPPORT - TOP |
120mm, 140mm, 240mm,
280mm, 360mm (maximum thickness clearance 55mm) |
|
LIQUID COOLING
SUPPORT - FRONT |
120mm, 140mm, 240mm,
280mm, 360mm |
|
LIQUID COOLING
SUPPORT - REAR |
120mm,
140mm |
|
MAXIMUM
COMPATIBILITY - CPU COOLER HEIGHT |
190mm / 7.5
inch |
|
CLEARANCE -
GFX |
412mm/16.2" |
|
SERIES |
MasterCase
Series |
|
SIZE |
Mid
Tower |
