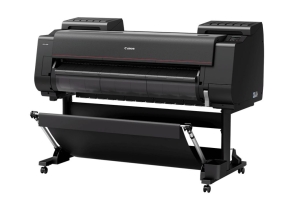

Canon imagePROGRAF PRO-4000 Printer
Overview
The 44-inch imagePROGRAF PRO-4000 printer is designed to exceed expectations
for image quality and color consistency in a large format printer. The use of
new a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set
plus Chroma Optimizer, a high-precision mechanical platform and the L-COA PRO
high-speed image processing engine achieves a balance between exceptional print
quality and speed.
These unique Canon technologies and innovations establish the foundation for
an ultra-high quality photography imaging solution that is available only from
Canon. Powered by a Canon-to-Canon workflow that links images captured with an
EOS Digital Camera and printed on an imagePROGRAF PRO Series printer, the result
is a solution that delivers prints that capture the moment and emotion of the
original image. The overwhelmingly high print quality produced by this input to
output solution is called Crystal-fidelity.
Features
LUCIA PRO Ink Set
The new LUCIA PRO ink set adopts newly formulated 11-color pigment inks and a
Chroma Optimizer. Designed specifically to meet the demands of even the most
critical photographer, the LUCIA PRO ink formulation includes microencapsulated
colorants that enable smooth gradients, an expanded color gamut, and deeper
color expression. This system helps you achieve stunning color reproduction,
image clarity, and enhanced darker areas. A first for the Canon large format
printers is the addition of a Chroma Optimizer. Used when printing on glossy and
semi-glossy paper, this acts as a clear coat, improving color performance and
gloss characteristics enriching the dark areas of a print.
This new ink set helps:
- Enhance gloss uniformity
- Improve scratch resistance
- Enhance dark area reproduction
- Reduce graininess
No Switching of Black Inks
The PRO-Series is designed to work seamlessly when changing media types.
Matte black and Photo black inks have their own dedicated nozzles, so no manual
switching between ink tanks is necessary. You can print on fine art paper then
glossy paper with no worries, no changes, and no waste.
PF-10 Print Head
The PF-10, a 1.28-wide print head with 18,432 nozzles equipped with
anti-clogging FINE technology, generates fast print speeds while reducing the
possibility of clogging. Ink ejection conditions are precisely checked by 27
sensors, and if a clog is detected, another nozzle will automatically provide
back-up.
This new print head is wider than previous imagePROGRAF print heads requiring
models to only have one instead of two. Having only one print head means a more
compact printer that achieves faster print speeds while maintaining high print
quality.
L-COA PRO High-Speed Image Processing Engine
The imagePROGRAF printers are powered by the L-COA PRO high-speed image
processing engine. With three new processing chips, this high-precision control
engine performs the processing of massive image data, and controls the optimal
ink layout that produces high resolution prints.
Color Calibration
The color calibration function is designed to produce consistent color
reproduction. This new printer includes an upgraded, built-in color densitometer
that offers precise calibration and color matching. Using a three-color LED and
newly developed condenser lens the sensor enables accurate recalibration of the
device, allowing you to maintain a low average printer-to-printer color
difference. The color calibration is finished quickly after a few simple steps
on the printers operation panel. A single color calibration performed with one
type of media can be applied to media in all printing modes.
Device Management Console
The Device Management Console software, ideal for fleet management, lets you
perform color calibrations remotely. This software lets you monitor the printer
status of up to 50 units from any location in the world, be notified via email
when an error has occurred, or check the amount of ink left in the printers
without ever having to leave the comfort of your desk.
High Precision Mechanical Platform
The newly engineered unibody structure provides a strong platform for stable
print head scanning, resulting in precise ink droplet placement. The perfect
combination of speed and high-quality printing is achieved with this new
design.
Multifunction Roll System
The optional Multifunction Roll System is a versatile media handling solution
system that enables either a second roll of media to be loaded on the printer,
or the unit can be configured as a bi-directional media Take-up
unit.
- Dual Roll Feeding: The dual-roll feeding mechanism enables users to load a
second roll of a different media type and size so that users can
simultaneously switch from printing on matte to gloss paper without pausing
their work to reload. Additionally, the second roll can be used to support
high-volume printing be enabling two rolls of the same media to be fed to the
printer
- Bi-Directional Rewinding: The Multifunction Roll System may also be
configured by the operator as a take-up unit to rewind longer printouts. The
user can choose to rewind media with the printed surface on the outside or the
inside of the roll, thereby supporting bi-directional
rewinding.
Effortless Media Loading
Loading media on a Canon larger format printer has never been easier. Simply
set the roll holder in the printer, rotate the roll holder handles and let the
media automatically feed into the printer. No need to touch the paper;
decreasing the risk of creasing and blemishes.
New Operation Panel
The large 3.5" color LCD touch panel makes it easy to view printer
information as well as perform simple operations.
Wi-Fi Connection
Stay Connected. A first for the imagePROGRAF large format printers, Wi-Fi
connectivity is now standard with this new PRO series.
Print From USB Thumb Drive
PDF and JPEG files can be directly printed on the imagePROGRAF PRO-4000 from
a USB thumb drive. Simply input the thumb drive into the USB port on the
printer, preview the image on the operation panel, and print! Fast and easy
printing without the use of a computer.
High Capacity Ink Tanks
Available in 160ml, 330ml, and 700ml ink tanks, you have the flexibility to
purchase ink based on your printing needs. 700ml photo black ink tanks can be
purchased for those often printing nightscapes and 160ml magenta ink tanks for
the occasional sunset image, giving you the power to purchase ink based on the
color frequency at which you print.
Sub-Ink Tank System
The Sub-Ink Tank System allows all of the available ink in a tank to be used
before having to replace it, helping eliminate any wasted ink. The empty tanks
can also be replaced on-the-fly without stopping the printer. This is extremely
useful during your long print jobs.
Multipositional Basket
The imagePROGRAF PRO-4000 features a new multipositional basket that can be
freely adjusted to enable various output positions and options:
- Catch Basket
- Flatbed Stacking
- Slope (can be used to display a print)
320 GB Hard Drive
A built-in 320 GB hard drive within the printer increases productivity by
relieving workload from the host Mac or PC, while providing a large capacity for
print job data storage and retrieval. This 320 GB hard drive enables job data to
be stored in protected mailboxes for easy access via web browser or at the
printer for job re-printing. The embedded hard disk is ideal for medium to large
workgroups to share a printer efficiently with multiple users, offering sample
job storage space.
Specifications
Printer
Type |
11-Color plus Chroma
Optimizer 44-inch Printer |
Number of
Nozzles |
Total:
18,432 |
|
All colors: 1,536
nozzles |
Nozzle
Pitch |
600 dpi x
2 |
|
Non-firing nozzle
detection and compensation |
Print Resolution (Up
to) |
2400x1200dpi
(Max) |
OS
Compatibility |
32bit: Windows
(Vista/7/8, 8.1/10) |
|
64bit: Windows
(Vista/7/8, 8.1/10) |
|
Mac (OS X
10.7.5-10.11) |
Standard
Interfaces |
USB 2.0
High-Speed |
|
10/100/1000 Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n) |
Ink Droplet
Size |
Minimum 4
picoliter |
Ink
Capacity |
160ml, 330ml, or 700ml
per color* |
Ink Droplet
Size |
Pigment based LUCIA PRO
Ink |
Color
Set |
Photo Black, Matte
Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray,
Red, Blue, +Chroma Optimizer |
Hard
Drive |
320GB |
Media
Width |
Cut Sheet - 8-
44 |
|
Roll Feed - 8 -
44 |
Media
Thickness |
Roll: 0.07 - 0.8 mm
(2.8 - 31.5mil) |
Maximum Roll Print
Length |
Roll Feed - 59' (18
meters)** |
Maximum Media Roll
Diameter |
6.7
(170mm) |
Borderless Printing
Width |
10, 14, 17, B2
(20.3/515 mm), A1 (23.4/594mm), A0 (33.11841mm), 24, 36, B0
(40.6/1,030mm), 42,44 |
Paper Feed
Method |
(Roll Media Only) 10,
14, 17, B2 (20.3/515 mm), A1 (23.4/594mm), 24 |
|
Roll Feed: One Roll,
Front-loading, Front Output |
|
Manual Feed:
Front-loading, Front Output |
Languages |
Language: Swift Graphic
Raster (SGRaster) |
Noise Level
Approx |
Operation: 48 dB (A) or
less |
|
Acoustic Power: 6.4
Bels or less |
Physical
Dimensions |
46.0 (H) x 62.7 (W) x
38.7 (D) (with basket open) |
Weight |
Approx.271 lbs (roll
holder included, no inks, no print heads) |
Power
Source |
AC 100-240V
(50-60Hz) |
Power
Consumption |
Maximum: 112 W or
less |
|
Standby 3.6 W or
less |
|
Power Off: 0.5 W or
less |
Operating
Environment |
Temperature: 59 -
86F |
|
Relative Humidity:
10-80% (No Condensation) |
User-replaceable
items |
Print Head
(PF-10) |
|
Maintenance Cartridge
(MC-30) |
|
Ink Tanks
(PFI-1100/PFI-1300/PFI-1700) |
Software
Included |
imagePROGRAF Printer
Driver, Print Studio PRO, Quick Utility Toolbox, Print Plug-In for Office,
Accounting Manager, Device Management Console, Media Configuration Tool,
PosterArtist Lite (PC only), Printer Driver Extra Kit (Free Layout and
Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC
only) |
