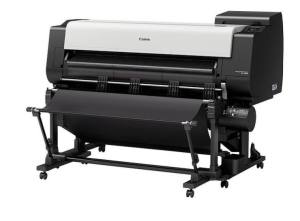

Canon imagePROGRAF TX-4000 Printer
Overview
The Next Standard of Engineering.
Developed to expand the production aqueous inkjet technical documents market,
the 44-inch imagePROGRAF TX-4000 Large-format printer is equipped to satisfy the
many diverse needs of architects, engineers, construction, GIS and other
professionals. With speeds as fast as 3D sized drawings a minute, stacking of up
to 100 sheets, wireless printing capability, automatic roll loading and an
optional Multifunction Roll Unit, the TX-4000 printer offers greater
productivity, usability, and document access control sought in the CAD
industry.
TX Stacker
Built for high productivity and increased flexibility this stacker handles
documents of mixed sizes, including ARCH C, ARCH D, or ARCH E/E1sizes, and
stacks them up to 100 sheets. The variety of configurations the TX Stacker can
be positioned makes prints easily accessible to pick up for on-the-go printing.
When not in use the TX Stacker can be folded up to conserve
space.
Optional 2nd Roll Unit
The optional Multifunction Roll System is a versatile media handling solution
system that enables either a second roll of media to be loaded on the printer,
or can be configured as a bi-directional media Take-up unit. The optional second
roll allows for the immediate switching between different media types or the use
of two rolls of the same paper for up to 3900 sq. ft. for printing of large,
consecutive runs. As a Take-up unit the operator can choose to use this option
to rewind longer printouts, either surface on the outside or the inside of the
roll.
LUCIA TD Pigment Ink Set
The TX-4000 features an all new 5-color TD pigment ink set. This ink was
formulated to produce fine lines and sharp text on both inkjet and non-inkjet
paper. Combine this pigment ink with water resistant media and you have a
printed drawing that can withstand the outdoor conditions, especially outdoor
job sites such as construction sites. Available in 160 ml, 330 ml, and 700 ml
ink tanks1, you have the ability to purchase a combination of ink sizes based on
your printing volume. 1,650 ml of ink ships standard with the
TX-4000.
Sub Ink Tank System
The Sub-Ink Tank System allows all of the available ink in a tank to be used
before having to replace it, helping eliminate any wasted ink. The empty tanks
can also be replaced on-the-fly without stopping the printer. This is extremely
useful during your long print jobs.
Print Head PF-06
The newly designed 6-channel PF-06 Print Head is engineered to work with the
printers high-speed carriage and high-frequency ink ejection to help facilitate
fast printing. This printer boasts Canon's print-head technology that lays down
ink with outstanding speed and accuracy. The PF-06 print head incorporates a
nozzle orifice shape to help minimize mist spray, producing clean lines and
text. The high-precision, high-density print head, with a total of 15,360
nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail
and excellent image quality. The result is consistently accurate 2400 x 1200 dpi
output (max.) with fine lines that are accurate to 0.10% and as thin as
0.02mm.
L-COA Processor
Canon's advanced print head technology achieves speeds up to 904 ft/hr on
uncoated media. Print a full color, 2400x1200 dpi high resolution image with
plain paper in 42 seconds2. Powering these incredible print speeds is Canon's
L-COA processor, which controls the optimal ink layout helping to ensure high
resolution output.
Automatic Media Loading
The TX Series offers Automatic Media Loading for ease of use. You simply
place a roll of media on the roll holder, and let it do the rest of the work!
The printer detects the roll and then automatically feeds the media through the
printer feeder. No manual feed is required.
Direct USB Thumb Drive Printing
A new feature for the imagePROGRAF 5-color printers is the accessibility of
USB thumb drive printing, supporting JPEG and PDF file formats. Simply load your
files onto your USB drive, step right up to the printer and plug your USB drive
into the port.
Security Features
The TX Series large-format printers come equipped with several security
features designed to help prevent leaks of confidential
information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
Functionality Restrictions
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage
Secure Storage
- Self Encrypting Hard Disk
- Secure Disc Erase (Conforms to U.S. Department of Defense standard
DoD5220.22-M)
The following functions can be disabled in administrator
mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Wi-Fi Compatible
Printing jobs quickly is critical on the work site and in the office. The
Wi-Fi connectivity can transfer technical drawing files and help speed up your
workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can
provide greater freedom during installation. Wi-Fi connectivity is standard for
the imagePROGRAF TX Series printers.
500GB Hard Drive
A built-in 500GB hard drive within the printer can increase productivity by
relieving workload from the host computer, while providing a large capacity for
print job data storage and retrieval.
Specifications
PRINTER
TYPE |
5-Color 44-inch
Printer |
NUMBER OF
NOZZLES |
Total:
15,360 |
MBK: 5,120
nozzles |
C, M, Y, BK: 2,560
nozzles each |
NOZZLE
PITCH |
1200 dpi Non-firing
nozzle detection and compensation |
PRINT RESOLUTION (UP
TO) |
2400x1200dpi
(Max) |
OS
COMPATIABILITY |
Windows 7, 8.1, 10
(32/64bit) Windows Server 2008 R2, 2012, 2012 R2, 2016
(64bit) |
STANDARD
INTERFACE |
USB 2.0 High-Speed
10/100/1000 Base-T/TX |
INK DROPLET
SIZE |
5
picoliter |
INK
CAPACITY |
160 ml, 330ml or 700ml
per color |
INK
TYPES |
Pigment
Ink |
COLOR
SET |
Pigment: Matte Black,
Black, Cyan, Magenta, Yellow |
BUFFER /
RAM |
128 GB (Virtual) 2 GB
(Physical) |
HARD
DRIVE |
500
GB |
MEDIA
WIDTH |
Cut Sheet - 8"- 44"
Roll Feed - 8" - 44" |
MEDIA
THICKNESS |
0.07-0.8mm
(2.8-31.4mil) |
Roll: 0.07 - 0.8 mm
(2.8 - 31.4mil) |
MAX. ROLL PRINT
LENGTH |
Roll Feed - 59' (18
meters) |
MAX. MEDIA ROLL
DIAMETER |
6.7"
(170mm) |
BORDERLESS PRINTING
WIDTH (ROLL MEDIA ONLY) |
8, 10", 12, 14", 16
17", 20, 24", 30, 36", 42, 44 B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+
(12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594
mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm), B0 (40.55/1030
mm) |
PAPER-FEED
METHOD |
Roll Feed: One Roll,
Front-loading, Front Output Front Loading Manual Feed: One Roll, Front
Output |
LANGUAGES |
SGRaster, HPGL/2,
HP-RTL, PDF, JPEG |
NOISE LEVEL
(APPROX.) |
Operation: 51 dB (A) or
less |
Standby: 35 dB (A) or
less |
6.9 Bels or
less |
PHYSICAL
DIMENSIONS |
46.0 x 62.7 x 46.8
(Main unit and TX Stacker) |
WEIGHT |
approx.277 lbs (roll
holder included, no inks, no print heads) |
POWER
SOURCE |
AC-100-240V
(50-60Hz) |
POWER
CONSUMPTION |
Maximum: 107W or less
Standby 3.6W or less Power Off: 0.3W or less (Compliant with Executive
Order) |
|
59-86 F (15-30 C)
Relative Humidity: 10-80% (No Condensation) |
USER-REPLACEABLE
ITEMS |
Print Head (PF-06)
Maintenance Cartridge (MC-30) Ink Tanks
(PFI-110/PFI-310/PFI-710) |
SOFTWARE
INCLUDED |
Accounting Manager,
Canon Print Service, Device Management Console, Direct Print & Share6,
Free Layout Tool, Media Configuration Tool, PosterArtist Lite for Windows,
Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout,
Advanced Preview), Optimized Driver for AutoCAD, Print Plug-in for
Microsoft Word/Excel/PowerPoint for Windows, Quick Utility
Toolbox |
