All stock codes associated to this product
IPFPRO4000ST36MFP, IPF PRO-4000S T36 MFP, 4604882

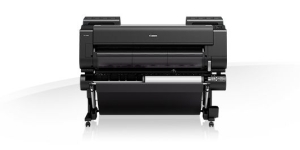

Canon imagePROGRAF PRO-4000S Printer
Overview
The 8-color 44-inch imagePROGRAF PRO-4000S printer designed for the poster
and signage markets exceeds expectations for speed and color consistency in a
large format production printer. The use of a new 1.28-inch wide 12-channel
integrated compact print head, LUCIA PRO ink set , a high-precision mechanical
platform and the L-COA PRO high-speed image processing engine achieves a balance
between high-speed printing and exceptional print quality.
LUCIA PRO Ink Set
The LUCIA PRO ink set adopts formulated 8-color microencapsulated pigment
inks. These inks help you achieve fantastic color reproduction, image clarity,
and fine lines ideal for creating vivid posters and advertising
displays.
This ink set helps:
- Enhance red color performance
- Reduce graininess
- Enhance dark area reproduction
PF-10 Print Head
The PF-10, a 1.28-wide print head with 18,432 nozzles equipped with
anti-clogging FINE technology generates fast print speeds while reducing the
possibility of clogging. Ink ejection conditions are precisely checked by 27
sensors, and if a clog is detected, another nozzle will automatically provide
back-up.
To enhance print performance, the 8-colors utilize all 12 ink channels in the
print head. The LUCIA PRO ink is arranged in a mirror layout on the print head,
symmetrically arranging the most important colors: C, M, Y, and MBK. This layout
allows for the same ejection order of the four key colors during the
bidirectional printing process resulting in denser ink placement and faster
prints speeds.
This print head is wider than previous imagePROGRAF print heads requiring
models to only have one instead of two. Having only one print head means a more
compact printer that achieves faster print speeds while maintaining high print
quality.
L-COA PRO High-Speed Image Processing Engine
The imagePROGRAF printers are powered by the L-COA PRO high-speed image
processing engine. With three processing chips, this high-precision control
engine performs the processing of massive image data, and controls the optimal
ink layout that produces high resolution prints.
Color Calibration
The color calibration function is designed to produce consistent color
reproduction. This printer includes an upgraded, built-in color densitometer
that offers precise calibration and color matching. Using a three-color LED and
developed condenser lens the sensor enables accurate recalibration of the
device, allowing you to maintain a low average printer-to-printer color
difference. The color calibration is finished quickly after a few simple steps
on the printers operation panel. A single color calibration performed with one
type of media can be applied to media in all printing modes.
High Precision Mechanical Platform
The engineered unibody structure provides a strong platform for stable print
head scanning, resulting in precise ink droplet placement. The perfect
combination of speed and high-quality printing is achieved with this
design.
Multifunction Roll System
The optional Multifunction Roll System is a versatile media handling solution
system that enables either a second roll of media to be loaded on the printer,
or the unit can be configured as a bi-directional media Take-up
unit.
Dual Roll Feeding: The dual-roll feeding mechanism enables users to load a
second roll of a different media type and size so that users can simultaneously
switch from printing on matte to gloss paper without pausing their work to
reload. Additionally, the second roll can be used to support high-volume
printing be enabling two rolls of the same media to be fed to the
printer.
Bi-Directional Rewinding: The Multifunction Roll System may also be
configured by the operator as a take-up unit to rewind longer printouts. The
user can choose to rewind media with the printed surface on the outside or the
inside of the roll, thereby supporting bi-directional rewinding.
Effortless Media Loading
Loading media on a Canon larger format printer has never been easier. Simply
set the roll holder in the printer, rotate the roll holder handles and let the
media automatically feed into the printer. No need to touch the paper;
decreasing the risk of creasing and blemishes.
Operation Panel
The large 3.5" color LCD touch panel makes it easy to view printer
information as well as perform operations.
Wi-Fi Connection
Stay Connected. A first for the imagePROGRAF large format printers, Wi-Fi
connectivity is now standard with this PRO series.
Print From USB Thumb Drive
PDF and JPEG files can be directly printed on the imagePROGRAF PRO-4000S from
a USB thumb drive. Simply input the thumb drive into the USB port on the
printer, preview the image on the operation panel, and print! Fast and easy
printing without the use of a computer.
High Capacity Ink Tanks
Available in 160ml, 330ml, and 700ml ink tanks, you have the flexibility to
purchase ink based on the color frequency at which you print.
Sub-Ink Tank System
The Sub-Ink Tank System allows all of the available ink in a tank to be used
before having to replace it, helping eliminate any wasted ink. The empty tanks
can also be replaced on-the-fly without stopping the printer. This is extremely
useful during your long print jobs.
Multipositional Basket
The imagePROGRAF PRO-4000S features a multipositional basket that can be
freely adjusted to enable various output positions and options:
- Catch Basket
- Flatbed Stacking
- Slope (can be used to display a print)
320 GB Hard Drive
A built-in 320 GB hard drive within the printer increases productivity by
relieving workload from the host Mac or PC, while providing a large capacity for
print job data storage and retrieval. This 320 GB hard drive enables job data to
be stored in protected mailboxes for easy access via web browser or at the
printer for job re-printing. The embedded hard disk is ideal for medium to large
workgroups to share a printer efficiently with multiple users, offering sample
job storage space.
Specifications
Printer
Type |
8-Color 44-inch
Printer |
Number of
Nozzles |
Total:
18,432 |
|
All colors: 1,536
nozzles |
Nozzle
Pitch |
600 dpi x
2 |
|
Non-firing nozzle
detection and compensation |
Print Resolution (Up
to) |
2400x1200dpi
(Max) |
OS
Compatibility |
32bit: Windows
(Vista/7/8, 8.1/10) |
|
64bit: Windows
(Vista/7/8, 8.1/10) |
|
Mac (OS X
10.7.5-10.11) |
Standard
Interfaces |
USB 2.0
High-Speed |
|
10/100/1000 Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n) |
Ink Droplet
Size |
minimum 4
picoliter |
Ink
Capacity |
160ml, 330ml, or 700ml
per color* |
Ink Droplet
Size |
Pigment based LUCIA PRO
Ink |
Color
Set |
Photo Black, Matte
Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta,
Gray |
Hard
Drive |
320GB |
Media
Width |
Cut Sheet - 8-
44 |
|
Roll Feed - 8 -
44 |
Media
Thickness |
Roll: 0.07 - 0.8 mm
(2.8 - 31.5mil) |
Maximum Roll Print
Length |
Roll Feed - 59' (18
meters)** |
Maximum Media Roll
Diameter |
6.7
(170mm) |
Borderless Printing
Width |
10, 14, 17, B2
(20.3/515 mm), A1 (23.4/594mm), A0 (33.11841mm), 24, 36, B0
(40.6/1,030mm), 42,44 |
Paper Feed
Method |
Roll Feed: One Roll,
Front-loading, Front Output Manual Feed: Front-loading, Front
Output |
Languages |
Language: Swift Graphic
Raster (SGRaster) |
Noise Level
Approx |
Operation: 49 dB (A) or
less |
|
Acoustic Power: 6.6
Bels or less |
Physical
Dimensions |
46.0 (H) x 62.7 (W) x
38.7 (D) (with basket open) |
Weight |
Approx.267 lbs (roll
holder included, no inks, no print heads) |
Power
Source |
AC 100-240V
(50-60Hz) |
Power
Consumption |
Maximum: 107 W or
less |
|
Standby 3.6 W or
less |
|
Power Off: 0.5 W or
less |
Operating
Environment |
Temperature: 59 -
86F |
|
Relative Humidity:
10-80% (No Condensation) |
User-replaceable
items |
Print Head
(PF-10) |
|
Maintenance Cartridge
(MC-30) |
|
Ink Tanks
(PFI-1100/PFI-1300/PFI-1700) |
Software
Included |
imagePROGRAF Printer
Driver, Quick Utility Toolbox, Accounting Manager, Device Management
Console, Media Configuration Tool, PosterArtist Lite (PC only), Printer
Driver Extra Kit (Free Layout and Advanced Preview), Print Plug-in for
Microsoft Word/Excel/PowerPoint (PC only), Gallery Wrap
Feature |
