All stock codes associated to this product
CA1K900F1WN03, CA-1K9-00F1WN-03

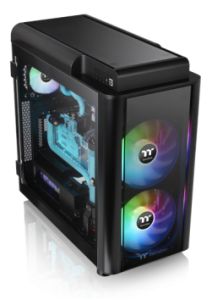

Thermaltake CA-1K9-00F1WN-03 Level 20 GT ARGB Black Edition Full
Tower Chassis
Overview
Level 20 GT ARGB Black Edition is an E-ATX full tower chassis that comes with
four 5mm thick tempered glass windows and two preinstalled 200mm 5V ARGB LED
front fans and one 140mm rear fan.
Design
The Level 20 GT ARGB Black Edition is the premium full tower synchronized
with motherboard in the level 20 range. Level 20 GT ARGB Black Edition features
four tempered glass panels with locking hinged doors, E-ATX motherboard support,
patented PCI-E slot design and a removable power cover.
The Level 20 GT ARGB Black Edition comes with two preinstalled 200mm 5V ARGB
LED front fans and one 140mm rear fan. The front fans are addressable to deliver
16.8 million-color RGB illumination and unparalleled ventilation. This model
comes ready to sync with RGB capable motherboards from Asus, Gigabyte, MSI and
ASRock. The Level 20 GT ARGB Black Edition takes our latest case innovations and
wraps them in an ultra-modern style thats utterly unique in the case market
today. Stand out from the crowd with the Level 20.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Dual Built-in 200mm 5V ARGB LED Fans
Preinstalled with two 200mm 5V ARGB LED front fans featuring hydraulic
bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee
high airflow and custom system designs to show off your PC design
skills.
The 5V ARGB LED fans can be controlled using a simple interface built into
the I/O panel that cycles through 7 different lighting modes and a range of
different color options.
WaveMode 1 FlowMode 2 RGBMode 3 (Single Color) RadarMode 4~10 (Red, Yellow,
Green, Cyan, Blue, White, Purple) BreathMode 11~18 (RGB, Red, Yellow, Green,
Cyan, Blue, White, Purple) Full LightedMode 19 Single ColorMode 20~26 (Red,
Yellow, Green, Cyan, Blue, White, Purple) Light OffMode 27 Long press on RGB
button for 3 seconds , fans will blink twice which now are controlled by MB
software, and vice versa.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic
Light Sync and ASRock Polychrome. It supports motherboards that have a 5V
addressable RGB header, allowing you to control the lights directly from the
above-mentioned software without installing any extra lighting software or
controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock
official websites.

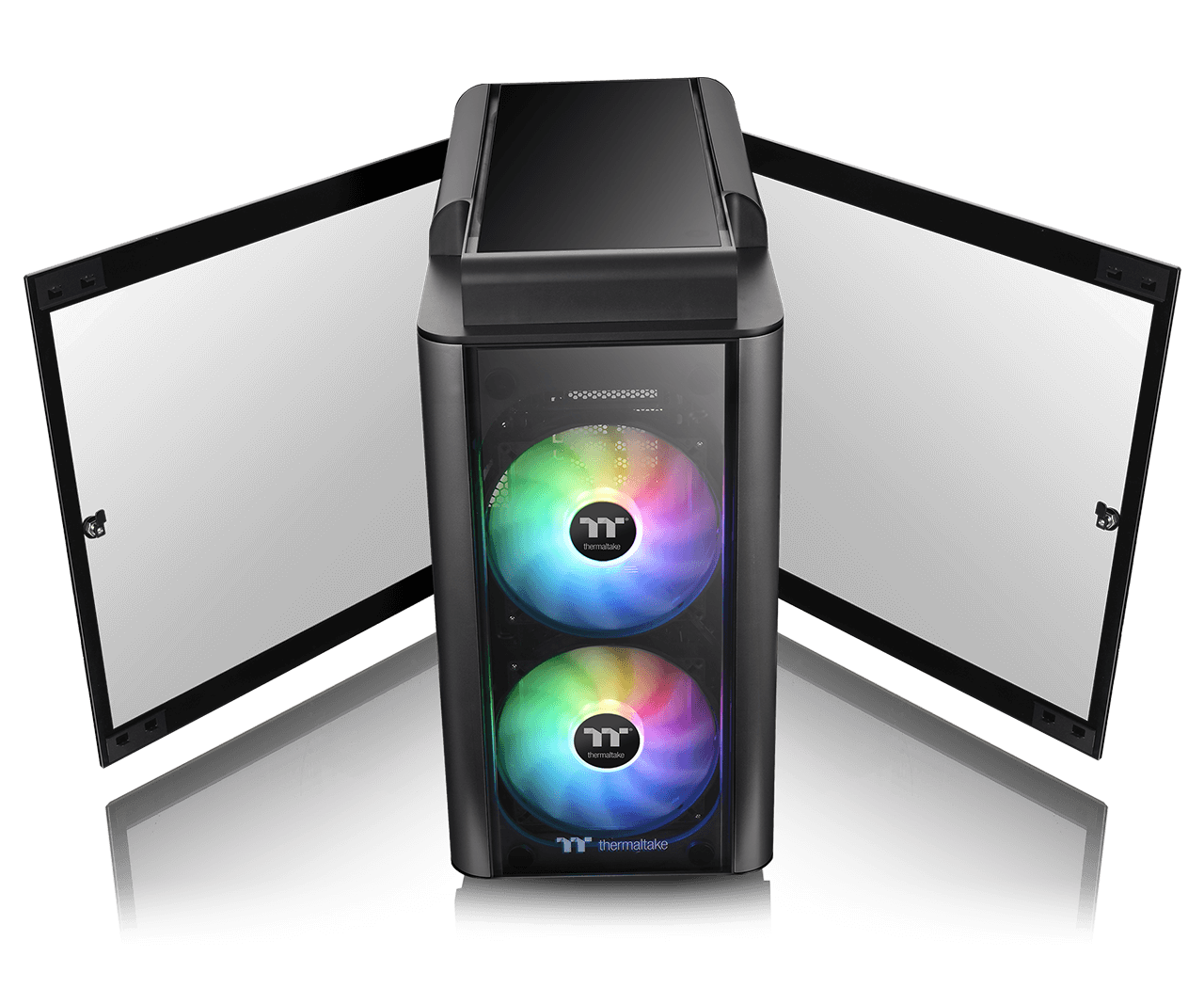

Tempered Glass Panels
The Level 20 GT ARGB Black Edition features tempered glass panels on the
front, top and both sides. The left and right hinged doors are also equipped
with smart lock security systems to secure the inner components of your
case.

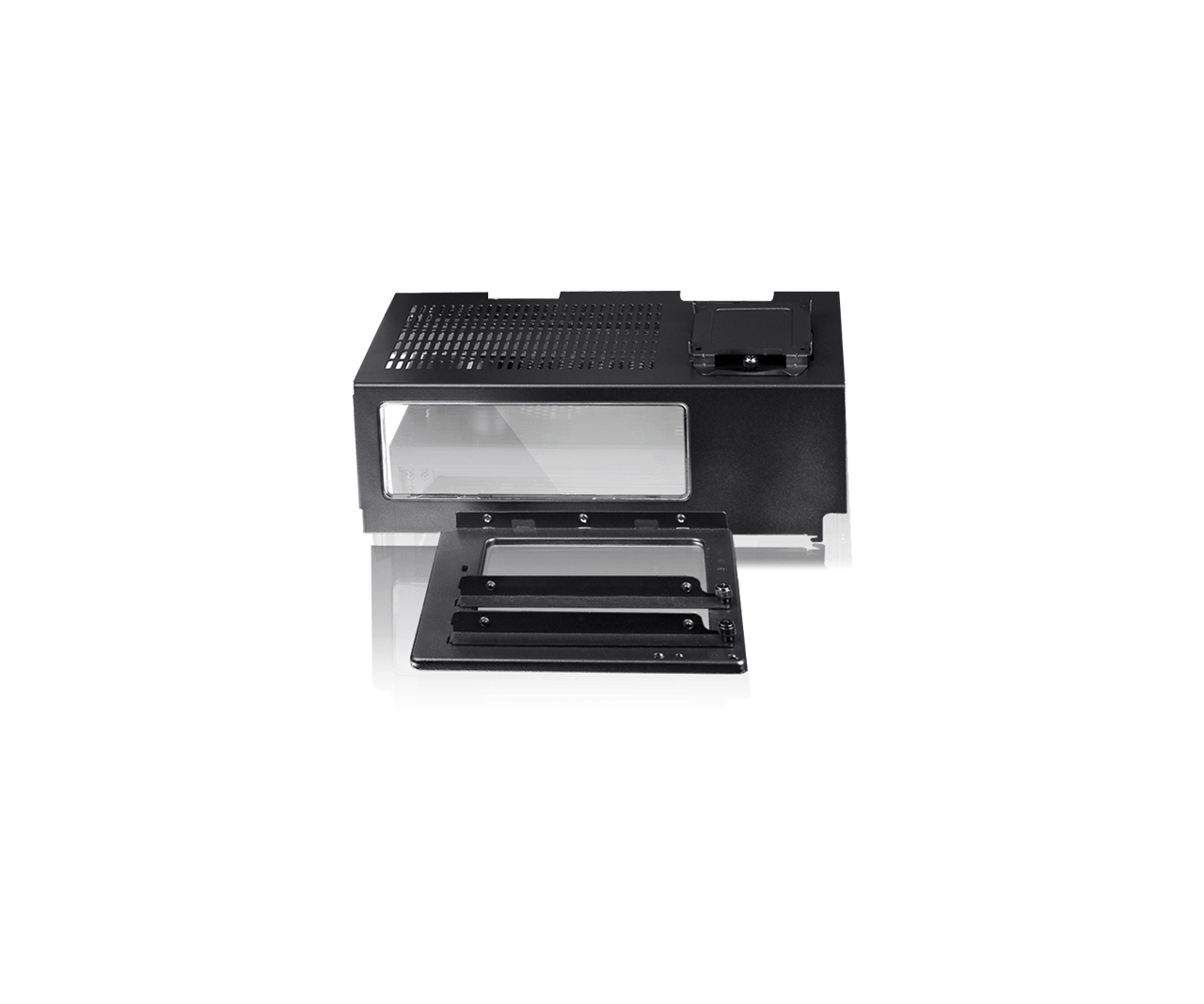

Power Cover Design
The Level 20 GT ARGB Black Edition is designed with a removable power cover,
which can be used to organize unused cables to make for a tidy-looking
system.
Patented Rotational PCI-E 8 Slots Design
With Patented Rotational PCI-E slots, you can choose the way you want to
display graphic cards vertically which helps you gain flexible space for
system.
- US Patent: 16/011,664
- Taiwan Patent: M569542
- China Patent: 201821058706.3
Vertical Radiator Placement
Whether youre building a custom loop or running an AIO CPU cooler, the Level
20 GT ARGB Black Edition lets you mount your radiator against the back panel to
show off your RGB fans. The back panel provides adequate exhaust while putting
your RGB fans on display, with support for up to a 420mm radiator as well as
radiator support on the front and top of the chassis.

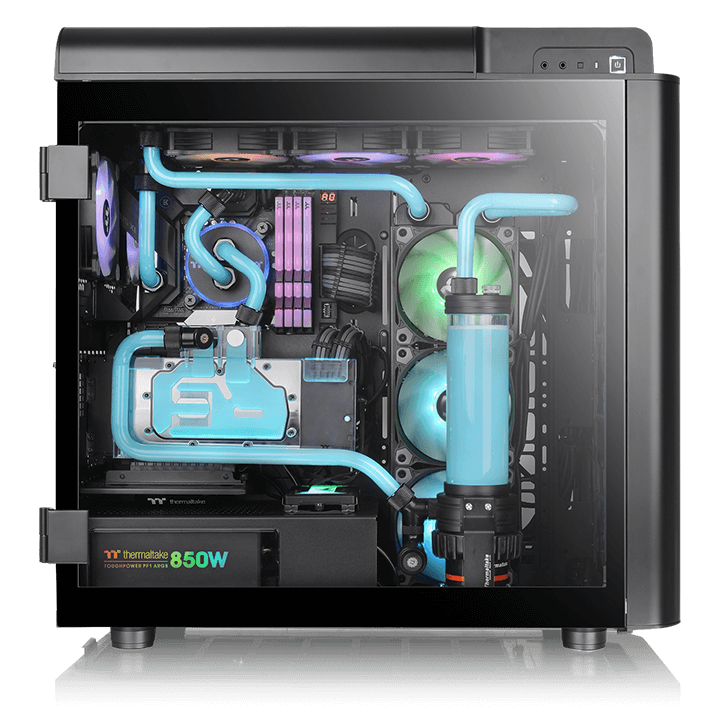

Extensive Hardware and Liquid Cooling Support
When it comes to hardware support, the Level 20 GT ARGB supports up to E-ATX
motherboards, CPU coolers up to 200mm in height, VGA lengths up to 410mm and PSU
sizes up to 220mm in length. It has plenty of space for advanced AIO/DIY liquid
cooling components and supports all kinds of AIO liquid cooling solutions. It is
able to holds up to triple 420mm custom liquid cooling radiators and up to 360mm
AIO liquid coolers. Moreover, the Level 20 GT ARGB Black Edition maximizes
airflow with two built-in 200mm 5V ARGB fans, combined with two bottom mount
120mm fan locations and top rails to mount up to two 200mm fans, three 120mm, or
140mm fans.
Modern I/O Support
The top-right panel features two USB 3.0 and two USB 2.0 data transfer ports,
along with one USB 3.1 Type-C port.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need
them with our modular design. The Level 20 GT ARGB Black Edition features
modular panels, racks, brackets, and pre-design mounting arrays. No more
unreachable screw corners or gaps, installation can be a breeze with our
Dismantlable Modular Design.

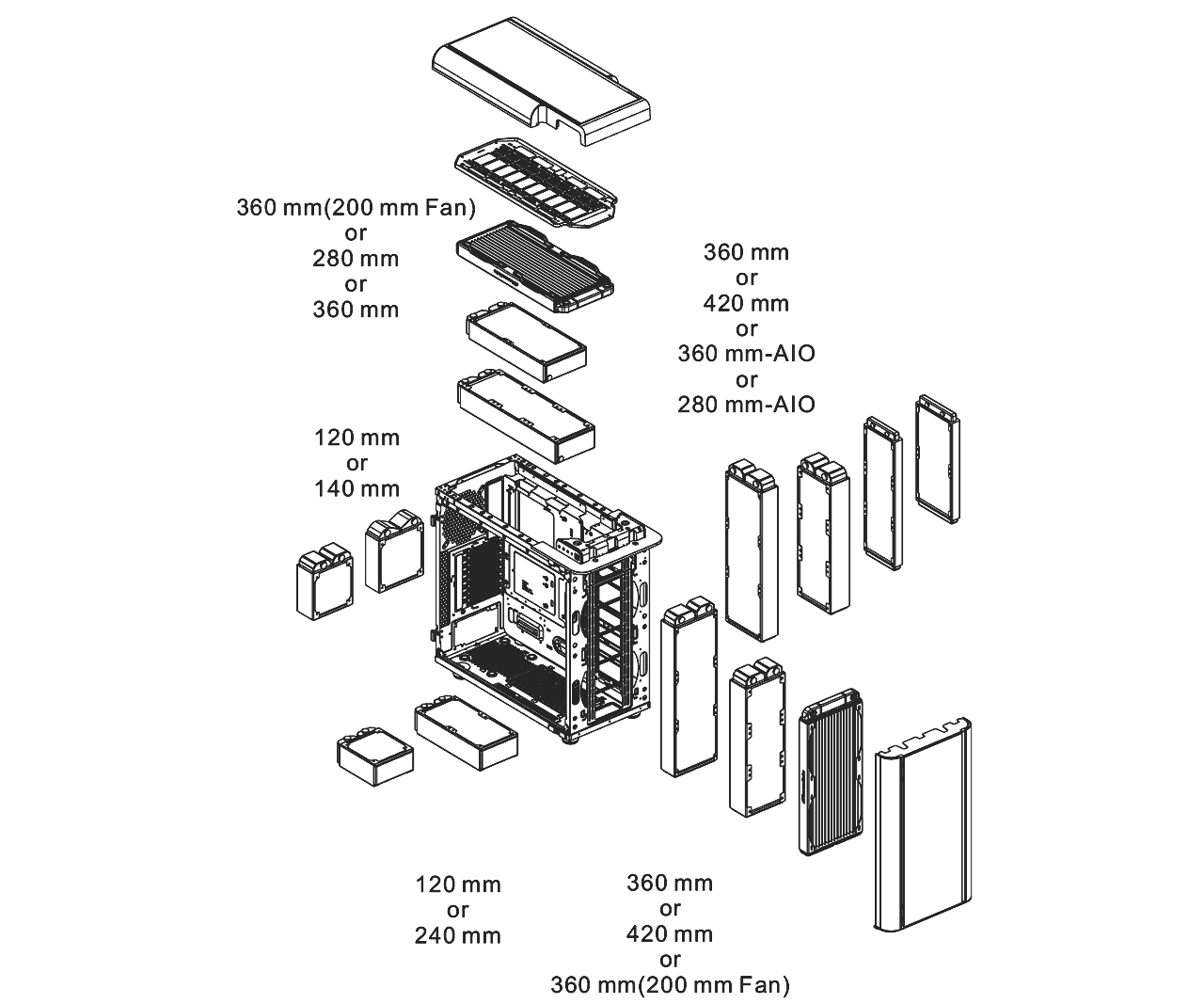

Radiator Support List
Radiator Compatibility List

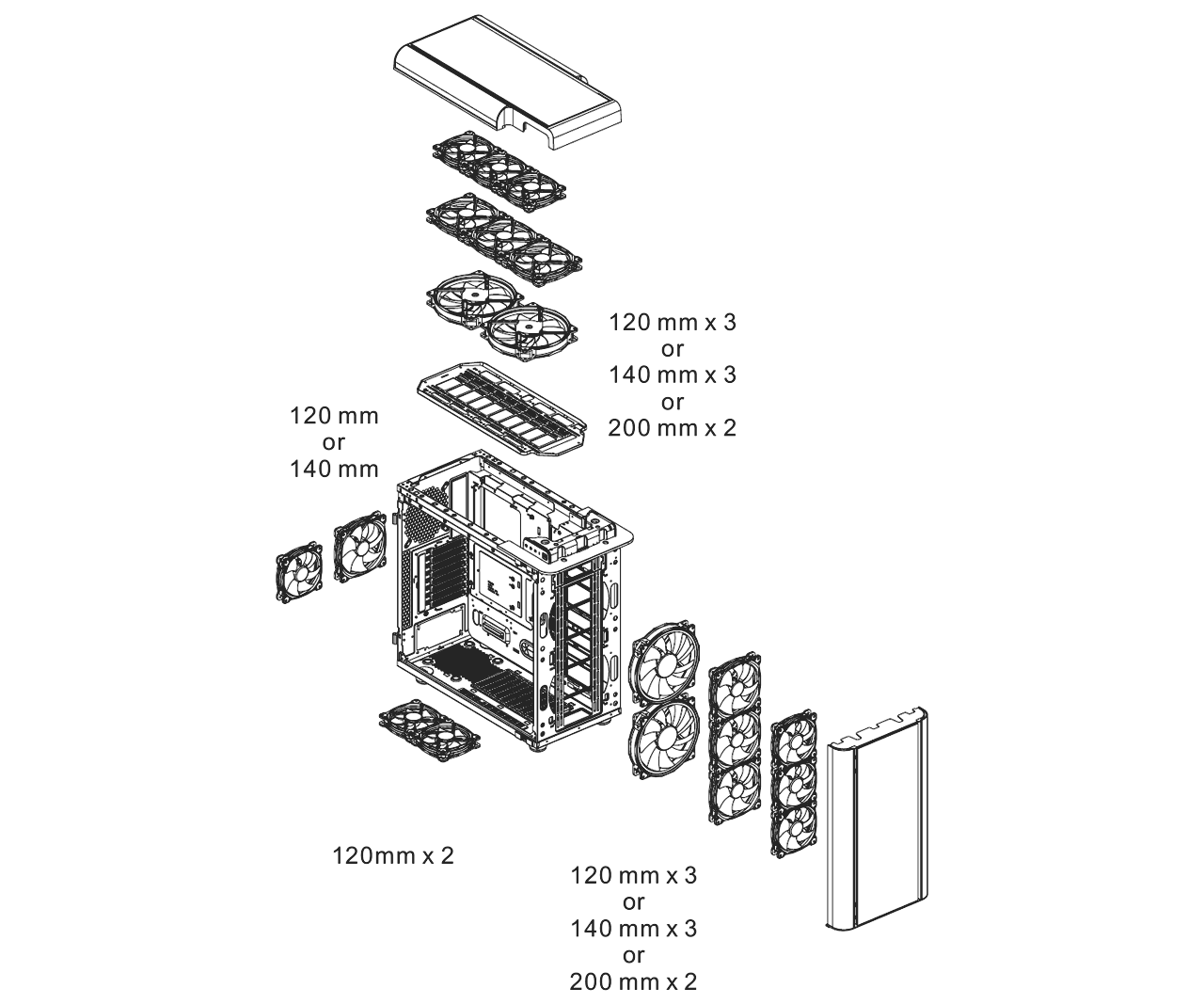

Fan Support List
Specifications
|
P/N |
CA-1K9-00F1WN-03 |
|
SERIES |
Level
20 |
|
MODEL |
Level 20 GT ARGB Black
Edition |
|
CASE
TYPE |
Full
Tower |
|
DIMENSION (H X W X
D) |
580 x 294 x 592
mm |
|
(22.9 x 11.6 x 23.3
inch) |
|
NET
WEIGHT |
20.1 kg / 44.31
lb |
|
SIDE
PANEL |
5mm Tempered Glass x
4(Left & Right & Front & Top) |
|
COLOR |
Exterior & Interior
: Black |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Front (intake)
: |
|
200 x 200 x 30mm
Addressable RGB fan |
|
(600rpm, 24dBA) x
2 |
|
Rear (exhaust)
: |
|
140 x 140 x 25 mm
fan |
|
(1000rpm,
16dBA) |
|
DRIVE
BAYS |
|
|
-ACCESSIBLE |
2.5 x 4 or 3.5 x 4 (HDD
Rack) |
|
-HIDDEN |
2.5 x 4 or 3.5 x 2 (HDD
Bracket) |
|
2.5 x 2 or 3.5 x 1
(Without HDD Rack) |
|
EXPANSION
SLOTS |
8 |
|
MOTHERBOARDS |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX) |
|
I/O
PORT |
USB 3.0 x 2, USB 2.0 x
2, HD Audio x 1, Type-C x 1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
FAN
SUPPORT |
Front: |
|
3 x 120mm, 3 x 140mm, 2
x 200mm |
|
Top: |
|
3 x 120mm, 3 x 140mm, 2
x 200mm |
|
Rear: |
|
1 x 120mm, 1 x
140mm |
|
Bottom: |
|
2 x
120mm |
|
RADIATOR
SUPPORT |
Front: |
|
1 x 360mm, 1 x 420mm, 1
x 360mm(For 200mm fan) |
|
Top: |
|
1 x 360mm, 1 x 280mm, 1
x 360mm(For 200mm fan) |
|
Rear: |
|
1 x 120mm, 1 x
140mm |
|
Right: |
|
1 x 360mm, 1 x 420mm
(AIO: 1 x360mm, 1 x 280mm) |
|
Bottom: |
|
1 x
240mm |
|
CLEARANCE |
CPU cooler height
limitation: 200mm |
|
VGA length limitation:
310mm(With HDD Rack) |
|
410mm(Without HDD
Rack) |
|
PSU length limitation:
220mm (Without Bottom
Fan) |
