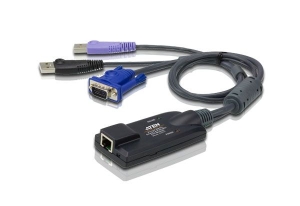

Aten KA7177 USB VGA Virtual Media KVM Adapter with Smart Card
Support
Overview
- Auto Signal Compensation (ASC), no DIP switch setting needed for the
different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when
it is disconnected from the switch
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Virtual Media and Smart Card/CAC Reader Support
The KA7177 KVM Adapter Cable connects the KVM switch to the video and USB
ports of the target computer. The KA7177 also provides a USB plug to connect the
target computer for Smart Card/CAC support. With its small form factor and light
weight design, it represents the next generation of KVM Adapter Cables offering
superior signal compensation and delay skew techniques for greatly enhanced
video quality.
Package Contents
- 1x KA7177 KVM Adapter Cable
- 1x Rack Mount Kit
- 1x Rack Mounting Guide
Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for the
different distances
- Keyboard and mouse emulation keeps your server functioning smoothly when
it is disconnected from the switch's KVM port or relocated to different KVM
port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Built in ASIC for greater reliability and compatibility
- CPU module designed with automatic conversion to allow for flexible
interface combinations (PS/2, USB) to control all computer OS types (Windows,
Mac, Sun)
- Compact size
- Virtual Media Support
- Smart Card / CAC Reader Support
* This maximum resolution may vary depending on the transmission distance.
For more details, please refer to the product pages of the connected KVM
switches.
Diagram
Specifications
|
Connectors |
|
Link |
1 x RJ-45
Female |
|
Computer |
2 x USB Type A
Male |
|
1 x HDB-15
Male |
|
LEDs |
|
Online |
1
(Green) |
|
Power |
1
(Orange) |
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.16 kg ( 0.35 lb
) |
|
Dimensions (L x W x
H) |
9.00 x 4.30 x 2.18
cm |
|
(3.54 x 1.69 x 0.86
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
