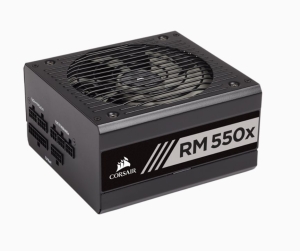

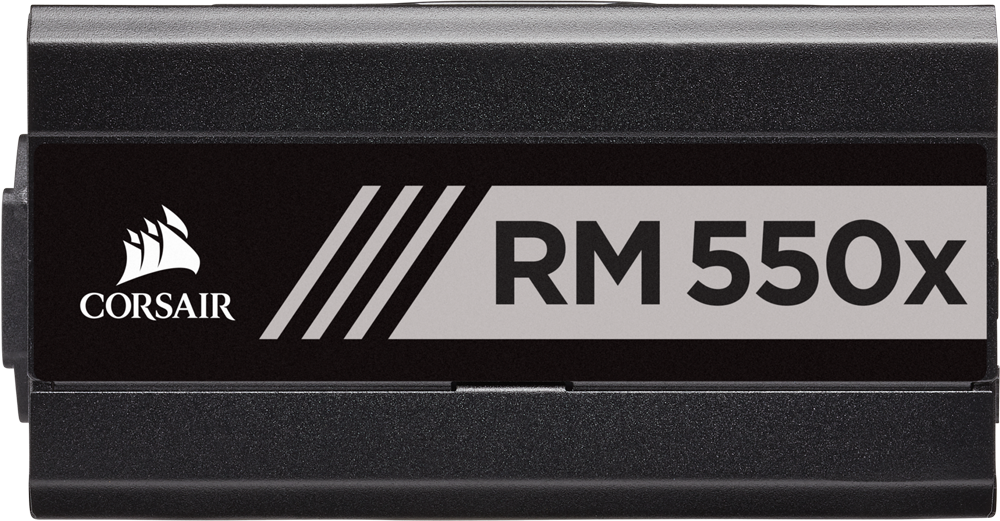

Corsair CP-9020177-AU RMx Series RM550x 80 PLUS Gold Fully Modular
ATX Power Supply (AU)
Overview
CORSAIR RM550x series fully modular power supplies are built with the highest
quality components to deliver 80 PLUS Gold efficient power to your PC, with
virtually silent operation.
TUNED FOR LOW-NOISE OPERATION
RMx power supplies are tuned with a low-noise fan curve to ensure that, even
at full load, fan noise is kept to a minimum.
80 PLUS GOLD CERTIFIED
The RM550x can deliver power with over 90% efficiency to keep energy
consumption, noise, temperatures, and your power bill low.
100% ALL JAPANESE 105C CAPACITORS
By using high-end electrolytic capacitors, the RM550x delivers the unwavering
power and long-term reliability youve come to expect from a CORSAIR power
supply.

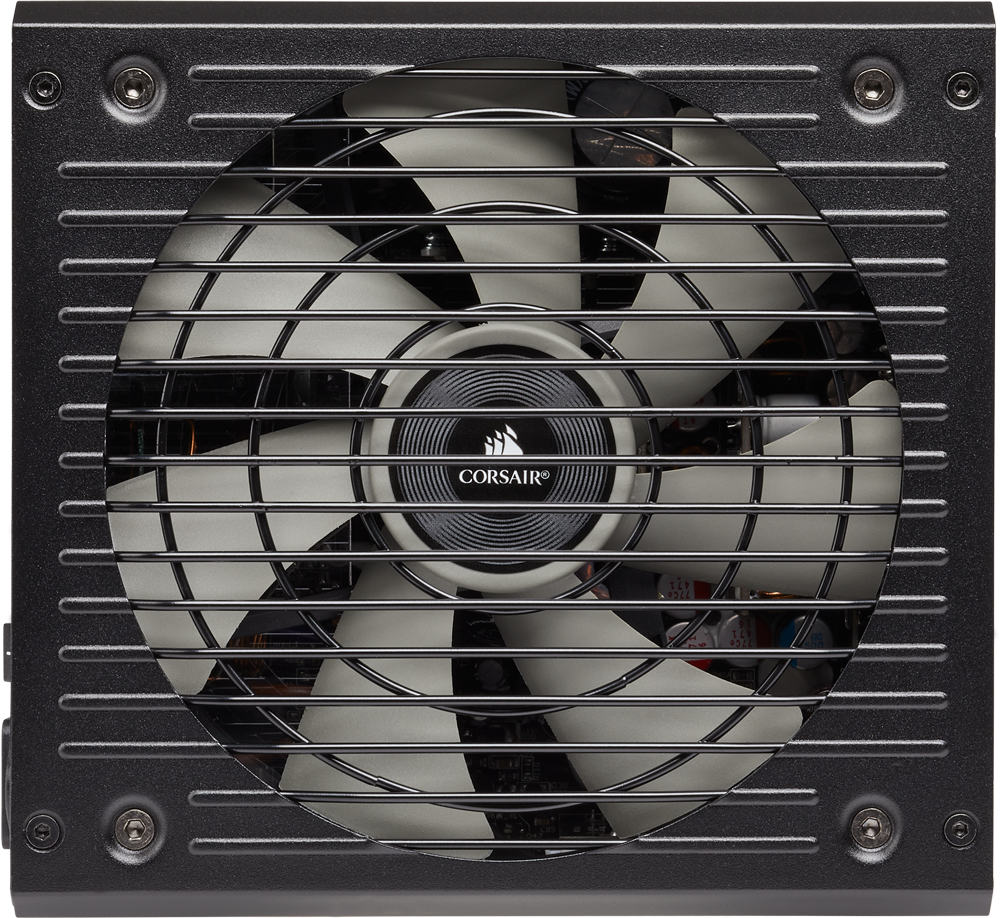

ZERO RPM FAN MODE
At low and medium loads the RM550xs cooling fan doesnt spin until you need
it, for near-silent operation.
COMPACT SIZE
The RM550xs 160mm-long casing ensures an easy fit in almost all modern
enthusiast PC cases

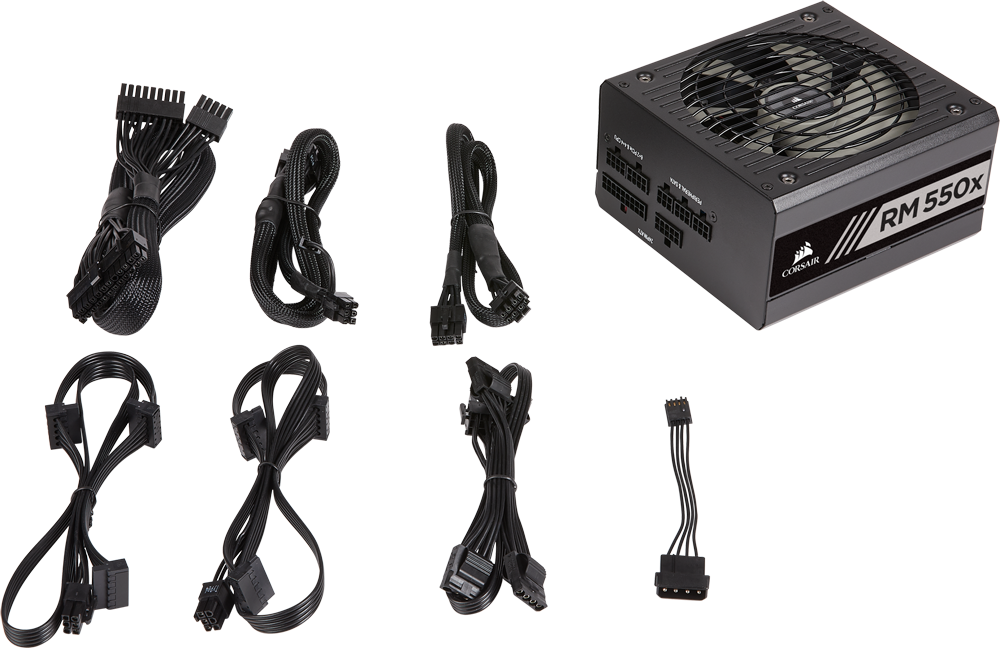

FULLY MODULAR CABLES
The RM550xs fully modular power cables mean that you only connect the cables
your system needs, making clean and tidy builds easier.
TEN-YEAR WARRANTY
CORSAIR offers a ten-year warranty on all RMx series power supplies, your
guarantee of reliable operation that will last across several system builds. If
you run into any problems during the installation or use of an RMx power supply,
CORSAIR global customer support is ready to help.
COMPATIBILITY
ATX12V v2.4 and EPS 2.92 standards
Specifications
ATX
Connector |
1 |
Adjustable
Single/Multi 12V Rail |
No |
ATX12V
Version |
v2.4 |
Continuous output
rated temperature C |
50C |
Continuous power
W |
550
Watts |
Fan bearing
technology |
Rifle
Bearing |
Fan size
mm |
140mm |
MTBF
hours |
100,000
hours |
Multi-GPU
ready |
No |
Warranty |
Ten
Years |
80 PLUS
Efficiency |
Gold |
PSU Form
Factor |
ATX |
Zero RPM
Mode |
Yes |
Cable
Type |
Low-Profile, All
Black |
Dimensions |
150mm x 86mm x
160mm |
EPS12V
Connector |
1 |
Floppy
Connector |
1 |
Modular |
Fully |
PCIe
Connector |
2 |
SATA
Connector |
6 |
