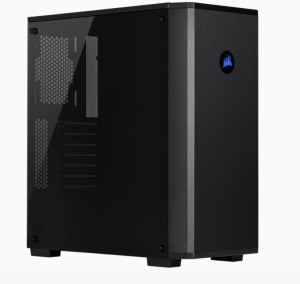

Corsair CC-9011171-WW Carbide Series 175R RGB Tempered Glass
Mid-Tower ATX Gaming Case — Black
Overview
The Carbide Series 175R RGB is a mid-tower ATX case designed with clean lines
and accented with an included RGB cooling fan in front and an edge-to-edge
tempered glass side panel.
CLEAN AND CLASSIC
Defined by a streamlined design and a front-facing CORSAIR logo backlit by an
RGB fan with six customizable RGB LEDs.
EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Show off your systems components with a fully transparent window into your
PC.
FULL-LENGTH PSU COVER
Hide your PSU and cables out of sight, making immaculate builds easier to
create than ever.
MASSIVE COOLING POTENTIAL
Fits up to 6x 120mm or 4x 140mm cooling fans, or multiple radiators in sizes
up to 360mm.
COMPATIBLE WITH MOTHERBOARD RGB CONTROL
Connect the included RGB fan to compatible Asus, Gigabyte, or MSI
motherboards with 12V RGB headers and their accompanying software to customize
and control RGB fan lighting.
FLEXIBLE STORAGE OPTIONS
Supports up to four drives for the storage options you need: two combo 3.5in
/ 2.5in trays in a removable cage and two 2.5in trays.
KEEP YOUR SYSTEM CLEAN
Removable dust filters in the floor, roof and front help keep your system
clean long after the build is finished.
UP-FRONT CONNECTIONS
A front I/O panel with two USB 3.1 Type-A ports and a 3.5mm combined
microphone/headphone jack provides easy access to your favorite
devices.
COMPATIBILITY
TECHNICAL SPECIFICATIONS
- Case Dimensions: 418mm x 210mm x 450mm
- Maximum GPU Length: 330mm
- Maximum PSU Length: 180mm
- Maximum CPU Cooler Height: 160mm
- Case Expansion Slots: 7
- Case Drive Bays: (x2) 3.5in (x2) 2.5in
- Case Material: Steel, Tempered Glass
- Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
- Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105,
H110i, H115i, H150i
Specifications
Case
Dimensions |
418mm x 210mm x
450mm |
Maximum GPU
Length |
330mm |
Maximum PSU
Length |
180mm |
Maximum CPU Cooler
Height |
160mm |
Case Expansion
Slots |
7 |
Case Drive
Bays |
(x2) 3.5in (x2)
2.5in |
Case Form
Factor |
Mid-Tower |
Case
Windowed |
Tempered
Glass |
Case
Warranty |
Two
years |
iCUE
enabled |
No |
Case
Material |
Steel, Tempered
Glass |
Radiator
Compatibility |
120mm, 140mm, 240mm, 280mm,
360mm |
Compatible Corsair
Liquid Coolers |
H55, H60, H75, H80i,
H90, H100i, H105, H110i, H115i, H150i |
Case Power
Supply |
ATX (not
included) |
Weight |
6.1kg/13.45lbs |
Lighting |
RGB |
Case Drive Bays
3.5" |
2 |
Case Drive Bays
2.5" |
2 |
