Introducing the ICY DOCK ToughArmor MB508SP-B 8-bay 2.5 drive cage for hard drives and SSDs, designed for high-density storage of 8x 2.5 SAS/SATA HDD/SSD from 5-15mm in 2x 5.25 CD/DVD optical drive bays, making it the densest drive cage available supporting full 15mm drives. Support for 15mm hard drives means enterprise SAS drives and high capacity drives are fully supported, which are used in applications requiring long-term reliable and fast data storage for archival and backup purposes. Two Mini-SAS HD connectors are used to connect all 8 drives, greatly reducing cable clutter over traditional SATA ports and improving reliability due to the interference reducing EMI shielding built into Mini-SAS HD cables. To further improve reliability and security, MB508SP-B uses a ruggedized full-metal construction meeting flammability requirements, as well as a large 80mm user-adjustable cooling fan to protect against drive failure from overheating.
Dense Enterprise Storage Solution
ICY DOCKs MB508SP-B packs 8x full-height SATA/SAS HDD/SSDs into just 2x 5.25 CD/DVD optical drive bays. This makes it perfect for applications requiring lots of storage using enterprise SAS hard drives, such as server and data-center PCs storing large amounts of data.

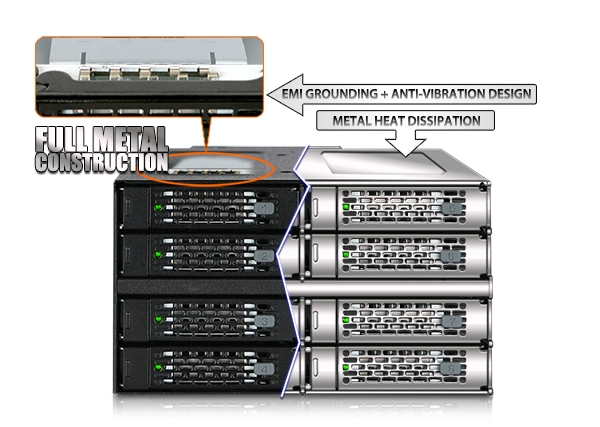

To protect against environmental damage, your drives are surrounded in a full metal chassis with full-metal trays, meeting the ruggedized flammability requirements of industrial, military, and medical applications.
Easily Hot Swappable

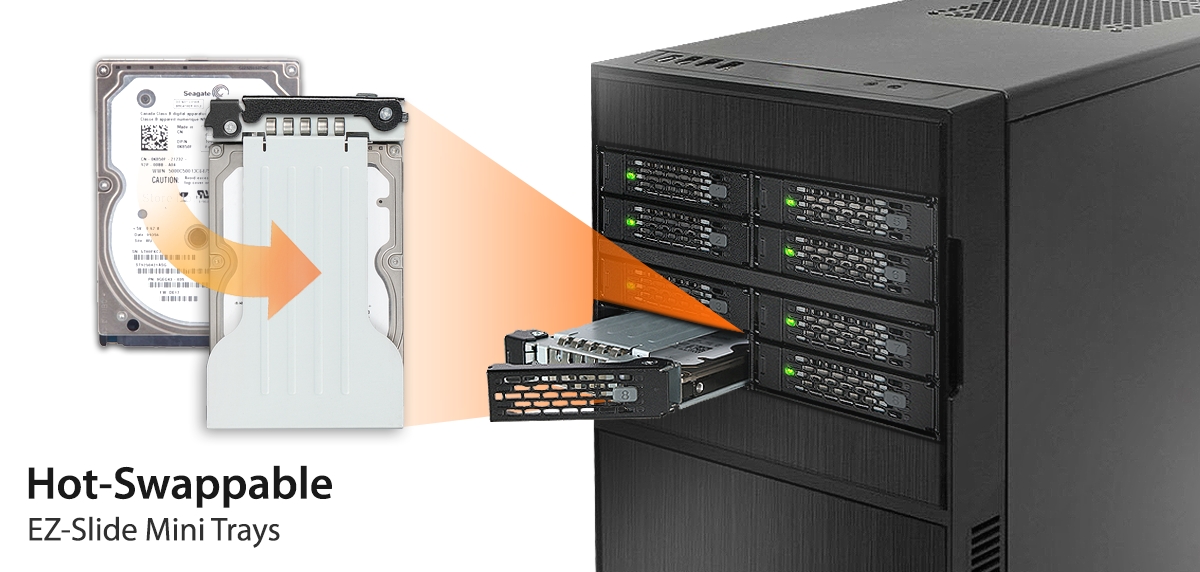

Designed for applications where regular drive swap may be required, the MB508SP-B EZ slide mini drive trays are hot-swappable, to allow for drives to be added and replaced easily, without restarting the whole machine. Hot-swap allows failed drives to be replaced in seconds, without any costly downtime to the rest of the system. To ensure a long life, the internal SAS/SATA connectors are rated to support up to 10,000 swapping cycles in each bay.
Highly Compatible EZ Slide Tray System
The EZ slide mini tray system supports full-height 2.5 mechanical hard drives and solid state drives, including high capacity SATA and SAS drives. SAS drives are used in enterprise applications such as long-term archival for their long lifespan, higher reliability, and faster rotational speeds up to 15,000 RPM for fast data access. All SAS drives are supported, including Seagate Exos, HGST Ultrastar C series, and Dell, HPE, and Toshiba SAS drives.
ToughArmor series trays are designed for maximum interoperability; the trays on MB508SP-B can be used with many other ToughArmor models, including the MB991 series and the MB994 series. This means drives can easily be transported and used in other systems, without having to reattach drives to another tray.
For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed.
Next Generation Connection Standard
Two Mini-SAS HD (SFF-8643) ports connect all 8 drives, vastly reducing cable clutter and adding compatibility for a larger selection of RAID controller cards. Compared to SATA, Mini-SAS HD can travel further without signal degradation, keeping your data transfers clear from the static noise that can result in data loss.
Powerful Cooling
Featuring a large, powerful 80mm fan with high, low, and off settings that is designed to remove as much heat as possible from your drives rapidly. The fan works together with ventilation holes amply placed throughout the enclosure, ensuring drives run only at their optimal temperatures.
For further expandability, the stock fan can be easily replaced with any aftermarket 80mm cooling fan, giving you a choice of your preferred fan for improved cooling performance or quieter operation.
Packed with Features
Each of MB508SP-Bs drive bays has its own LED indicator light to notify you of any drive activity, preventing drive damage by alerting you when your drive is in use.
Never lose track of which drives go where. Individual numbered drive ID labels let you maintain the order of your drives in RAID arrays. The drive labels can be easily rearranged or removed entirely for a cleaner look.
Supports Mini-SAS HD data and SATA power cables with locking latch designs, ensuring that once installed, your cables will never slip out of place and cause data loss from accidental drive ejection.
Make ToughArmor On-The-GO!
With MB991U3-1SB

To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB is the way to go about. The drive tray slot of MB991U3-1SB is compatible with a variety of ToughArmor drive trays including the ToughArmor MB516, MB607, MB991, MB992, MB994, MB996 and MB998 series. This allows existing ToughArmor users to access their internal drive externally without opening up the case. It is a great tool for an individual drive diagnostic test. If you need to do a safe data erase or just simply expending system storage capacity, just remove the tray from the internal ToughArmor unit and insert it in the MB991U3-1SB to perform individual tasks externally with USB 3.0 interface. Best of all, the MB991U3-1SB uses USB bus-powered and it does not require a power adapter to operate. Simply connect the USB cable to any system and you are ready to go.
Drive Tray
EZ-Slide Mini Tray MB991TRAY-B DriveTray for ToughArmor MB991/994/508 series
Product Name :
Full Metal 8 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage
Model Number :
MB508SP-B
Color :
Black
Support Drive Size :
8 x 2.5" SSD / HDD
Compatible Drive Type :
SATA / Single channel SAS (SAS host required)
Number of Drives :
8
Max Drive Height :
15mm
Drive Bay :
2 x external 5.25" drive bay
Host Interface :
2 x miniSAS HD (SFF-8643)
Power Input :
2 x 15 pin SATA power connectors
Transfer Rate :
SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps (Single channel)
Support HDD Capacity :
No Limitation
Drive Cooling :
1 x 80 mm Fan
Structure / Material :
Full Metal
Support Hot-Swap :
Yes
Product Dimension (L x W x H) :
146 x 157.9 x 84mm
Product Net Weight :
1480g
Package Gross Weight :
1711.7g
Drive Activity LED Indication :
Drive power: solid green; HDD access: flashing green
Package contents :
1 - Device, 1 - user manual, 1 - ID Plug, 44 - screw
Product Name :
Full Metal 16 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage
SATA Connector Insertion Rate :
10,000
Humidity :
5%~65% RH
Operating Temperature :
0C to 60C (32F to 140F)
Storage Temperature :
-35C to 70C (-31F to 158F)
Compliance :
CE, RoHS, REACH
Warranty :
3 years
