All stock codes associated to this product
CC9011105WW(270RWIN), CC-9011105-WW(270R-WIN)

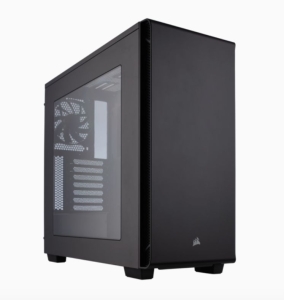

Corsair Carbide Series 270R Windowed ATX Mid-Tower Case
Overview
Carbide Series 270R is compact and engineered for building high-performance
systems with a simplified internal layout, versatile cooling options, expansive
storage capacity, and a clean, minimalist design.
RUGGED, SLEEK AND SIMPLE
Carbide Series 270R is compact and engineered for building high-performance
yet minimalist systems.
BUILDER-FRIENDLY INTERNAL LAYOUT
Simple and intuitive internal layout enables easy and quick
building
VERSATILE COOLING OPTIONS
Room for up to a 360mm radiator in front, 240mm radiator at top, and 120mm
radiator in the rear
EXPANSIVE STORAGE SPACE
Rugged construction steel drive trays provide ample of room for additional
drives
CLEAN AND MINIMALIST EXTERIOR DESIGN
Unobstructive panels deliver an understated look
BUILT-IN CABLE ROUTING
Cable routing compartment enables effortlessly clean builds

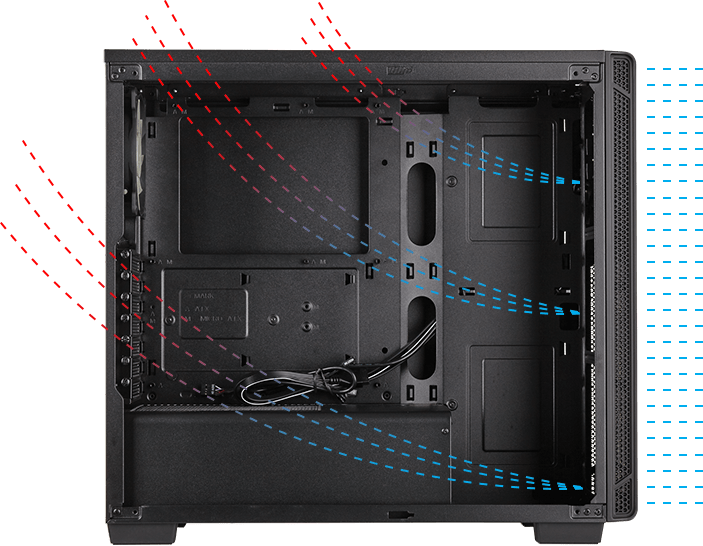

DIRECT AIRFLOW PATH
Provides airflow to the hottest components without any interference from
drive cages
LOOK HOT. RUN COLD.
Take advantage of Direct Airflow Cooling as well as ample room for radiators
in the front, top and rear. Keep your rig running cool and quiet with 270Rs
enormous cooling potential.
KEEP IT CLEAN
Unobstructive exterior panels provide an understated look for an overall
clean and minimalist design. The subtle cable routing compartment makes it even
easier to achieve an effortlessly clean build.
Specifications
Case
Dimensions |
509mm x 210mm x
460mm |
Maximum GPU
Length |
370mm |
Maximum PSU
Length |
225mm |
Maximum CPU Cooler
Height |
170mm |
Case Expansion
Slots |
7 |
Case Drive
Bays |
(x2) 3.5in (x2)
2.5in |
Case Form
Factor |
Mid-Tower |
Case
Windowed |
Acrylic |
Case
Warranty |
Two
years |
iCUE
enabled |
No |
Case
Material |
Steel |
Radiator
Compatibility |
120mm, 240mm,
360mm |
Compatible Corsair
Liquid Coolers |
H55, H60, H75, H80i,
H90, H100i, H105, H110 |
Case Power
Supply |
ATX (not
included) |
Weight |
7.28kg |
Case Drive Bays
3.5" |
2 |
Case Drive Bays
2.5" |
2 |
