Chipset |
Intel C246 |
Mainboard
type |
D3673 |

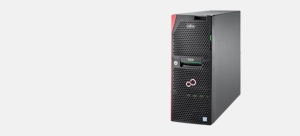

Product
Type |
Mono Socket Tower
Server |
Processor |
Intel Xeon E-2100
processor family, Intel Pentium processor,
Intel Core i3 processor |
Memory |
4 GB - 64 GB, DIMM
(DDR4) |
Memory
protection |
ECC |
Drives
(optional) |
DVD-ROM, half height,
SATA I |
DVD Super Multi, half
height, SATA I |
DVD supermulti,
ultraslim, SATA I |
Blu-ray Disc Triple
Writer, ultraslim, SATA I |
RDX Drive, 100 MB/s,
320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 |
LTO6HH Ultrium, 160
MB/s, 2,500 GB, SAS 6Gb/s |
LTO7HH Ultrium, 300
MB/s, 2,500 GB, SAS 6Gb/s |
PCI-Express 3.0
x4 |
1 x Full height, up to
168 mm length |
PCI-Express 3.0
x8 |
2 x Full height, up to
240 mm length notched |
Slot
Notes |
Optional PCIe to legacy
PCI adapter available. |
In SAS configuration 1x
PCI-Express occupied by modular RAID controller. |
Accessible drive
bays |
3 x
5.25/1.6-inch |
3 x 5.25/1.6-inch for 1
x backup drive + 1 x ODD |
Accessible drive bays
are not available in case of max. storage drive
configuration |
Optional accessible
drives |
all possible options
described in relevant system configurator |
Storage drive
bays |
3.5-inch or 2.5-inch
hot-plug SAS/SATA |
Max. 4x 3.5-inch or 8x
2.5-inch |
Max. 12x 3.5-inch or
24x 2.5-inch |
Storage drive
type |
HDD SATA, 6 Gb/s, 12
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 1 TB,
7,200 rpm, 512e, hot-plug, 2.5-inch, business
critical |
HDD SATA, 6 Gb/s, 2 TB,
7,200 rpm, 512e, hot-plug, 2.5-inch, business
critical |
HDD SATA, 6 Gb/s, 1 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, economic |
HDD SATA, 6 Gb/s, 1 TB,
7,200 rpm, 512n, hot-plug, 2.5-inch, business
critical |
HDD SATA, 6 Gb/s, 2 TB,
7,200 rpm, 512n, hot-plug, 2.5-inch, business
critical |
Dual microSD 64GB
Enterprise |
HDD SAS, 12 Gb/s, 300
GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 600
GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 900
GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 300
GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 600
GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 900
GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 1.2
TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 1.8
TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 2.4
TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 600
GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 1.2
TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 300
GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 600
GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise |
HDD SAS, 12 Gb/s, 1.2
TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 300
GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 600
GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 1.8
TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 2.4
TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise |
HDD SAS, 12 Gb/s, 12
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SAS, 12 Gb/s, 14
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SAS, 12 Gb/s, 1.2
TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 300
GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 600
GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 1.8
TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 2.4
TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 6 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED |
HDD SAS, 12 Gb/s, 10
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise,
SED |
SSD SATA, 6 Gb/s, 1.92
TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
SSD SATA, 6 Gb/s, 3.84
TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
SSD SATA, 6 Gb/s, 960
GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
SSD SATA, 6 Gb/s, 1.92
TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
SSD SATA, 6 Gb/s, 3.84
TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
SSD SATA, 6 Gb/s, 960
GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per
day for 5 years) |
HDD SAS, 12 Gb/s, 12
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 14
TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise,
SED |
HDD SAS, 12 Gb/s, 1 TB,
7,200 rpm, hot-plug, 3.5-inch, business critical |
HDD SAS, 12 Gb/s, 2 TB,
7,200 rpm, hot-plug, 3.5-inch, business critical |
HDD SAS, 12 Gb/s, 4 TB,
7,200 rpm, hot-plug, 3.5-inch, business critical |
HDD SAS, 12 Gb/s, 6 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SAS, 12 Gb/s, 8 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 1 TB,
7,200 rpm, 512n, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 2 TB,
7,200 rpm, 512n, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 4 TB,
7,200 rpm, 512n, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 6 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 8 TB,
7,200 rpm, 512e, hot-plug, 3.5-inch, business
critical |
HDD SATA, 6 Gb/s, 500
GB, 7,200 rpm, 512e, hot-plug, 3.5-inch, economic |
PCIe-SSD SFF, 1 TB,
Read-Intensive, hot-plug, 2.5-inch, Flash drive, 1 DWPD (Drive Writes Per
Day for 5 years) |
PCIe-SSD SFF, 2 TB,
Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes
Per Day for 5 years) |
PCIe-SSD SFF, 4 TB,
Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 480
GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 480
GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.1 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.1 DWPD (Drive Writes Per
Day for 5 years) |
SSD SATA, 6 Gb/s, 1.92
TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1.4 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 3.84
TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1.0 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 480
GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 7.68
TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.5 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 960
GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 1.92
TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 240
GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.4 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 3.84
TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.0 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 480
GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 7.68
TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.5 DWPD (Drive Writes
Per Day for 5 years) |
SSD SATA, 6 Gb/s, 960
GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes
Per Day for 5 years) |
SSD M.2 SATA, 6 Gb/s,
240 GB, non hot plug, enterprise, 1.4 DWPD (Drive Writes Per Day for 5
years) |
SSD M.2 SATA, 6 Gb/s,
480 GB, non hot plug, enterprise, 1.4 DWPD (Drive Writes Per Day for 5
years) |
SSD M.2 SATA, 6 Gb/s,
240 GB, non hot plug, enterprise, for VMware |
I/O controller
onboard |
Intel C246,
2 ports used for accessible drives |
Optionally integrated
RAID 0/1 or RAID 5/6 controller for SAS base units (occupies one PCIe
slot)., All hardware storage controller options are described under
Components |
Intel i210
onboard |
2 x 10/100/1000 Mbit/s
Ethernet |
Integrated Remote
Management Controller (iRMC S5, 512 MB attached memory incl. graphics
controller), IPMI 2.0 compatible |
Trusted Platform
Module (TPM) |
TPM 2.0 module
(option) |
Power supply
configuration |
1 x standard, 1 x
hot-plug, 2 x hot-plug redundant, 1 x hot-plug + 1 x Fujitsu FJBU internal
battery backup unit (depending on |
Model) |
Active power (max.
configuration) |
231
W |
Weight |
Rack: 13 kg - 25 kg;
Tower: 15kg - 28 kg |
Rack (W x D x
H) |
483 x 495 x 175
mm |
Floor-stand (W x D x
H) |
177 x 560 x 455
mm |
Mounting Depth
Rack |
543
mm |
Server
Management |
Server
Management |
Standard |
Infrastructure Manager
(ISM) Essential, Node Management, Health status Monitoring and
Control, Capacity/Threshold Management, Power
Management, Converged Management, Auto Discovery, Remote
Management, Update Management, Logging and Auditing, ServerView
Suite (Deploy), ServerView Installation Manager, ServerView
Scripting Toolkit, ServerView Suite (Control), ServerView Operations
Manager (incl. PDA and ASR & R), ServerView Agents and CIM
provider, ServerView Agentless Management, ServerView System
Monitor, SVOM- Event Manager, ServerView RAID
Manager, SVOM- Threshold Manager, Power Monitor (monitoring the
Power Consumption), Power Management (iRMC), Storage Management
(server) with SVOM/SV-RAID, ServerView Suite (Maintain), iRMC S5
(Remote Management), System Update Manager (BIOS, Firmware, Windows
Drives and SV Agents), Performance management (SVOM), Asset
Management, Primecollect, Customer Self Service, Online
Diagnostics, ServerView Suite - Integrate |
Integration packs for
Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP
SIM |
Option |
ServerView Suite
(Maintain), ServerView eLCM, iRMC Advanced Pack incl. Advanced
Video Redirection (AVR), video capturing and Virtual
Media |
Warranty
period |
1
year |
Warranty
type |
Onsite
warranty |
Service
Lifecycle |
5 years after end of
product
life |
