All stock codes associated to this product
CAH210IW1, CA-H210I-W1, 4789912, 5060301695102

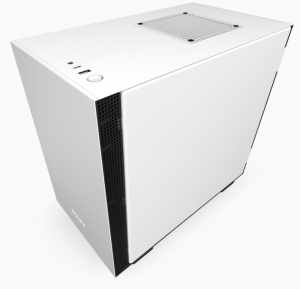

NZXT H210i Mini-ITX Case with Lighting and Fan control - Matte
White
Overview
Weve made our iconic H Series PC cases even better. Our new lineup still
features the elements builders loved in the original H Series, including our
patented cable management system, removable fan/radiator mounting brackets, and
easy-to-use drive trays, alongside new updates like a front-panel USB-C
connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side
panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on
the H210i.
- The new Smart Device V2 includes a faster microprocessor for NZXT
CAM-powered control of two HUE 2 RGB lighting channels and three fan channels
that support either voltage regulated or PWM fans.
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, its
easier than ever to connect smartphones, high-speed external storage, or the
latest peripherals to your PC.
- The clean, modern design, iconic cable management bar, and uninterrupted
tempered-glass side panel showcase your stunning build.
- Use the intuitive NZXT CAM application to monitor and control your build,
choosing from presets or custom controls for your RGB lighting and fans to
create your dream PC.
- Cable management can often take more time than assembly. We designed a
cable routing kit with pre-installed channels and straps, for intuitive and
easy wiring.
- Two Aer F120mm fans* are included for optimal internal airflow and the
front panel and PSU intakes include removable filters. Includes a removeable
bracket designed for radiators up to 240mm simplifies the installation of
either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
Specifications
Dimensions |
W: 210mm H: 349mm D:
372mm (with feet) |
Material(s) |
SGCC Steel and Tempered
Glass |
Weight |
6
kg |
Motherboard
Support |
Mini-ITX |
Front I/O
Ports |
1x USB 3.1 Gen 1
Type-A |
1x USB 3.1 Gen 2
Type-C |
1x Headset Audio
Jack |
Front I/O internal
header |
1x USB 3.1 Gen 2
Internal Header |
1x USB 3.1 Gen 1
Internal Header |
1x USB 2.0 Internal
Header |
1x HD Audio
Header |
Filters |
All Air
Intakes |
Smart Device
V2 |
3x Fan channels with
Max 10W per channel output* |
2x RGB LED port support
up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2
fans |
Built-in noise
detection module |
*Note: If a splitter
is used, fan control is regulated depending on the fan connected to the
4-pin port. Do not use low-noise adapters. |
LED
Strip(s) |
1 integrated
addressable LED strip |
Included
Accessories |
Installation
screws |
10 x Cable
ties |
1x Headset Audio Jack
splitter (4 pole to 3 pole) |
1x GPU
stand |
Expansion
Slots |
2 |
Drive
Bays |
2.5":
3+1 |
3.5":
1 |
Radiator
Support |
Front: 2x 120mm with
Push or Pull |
Rear: 1x
120mm |
Fan
Support |
Front: 2x 120 / 2x
140mm |
Top: 1x 120mm (1 AER
F120 Case version included) |
Rear: 1x 120mm (1 AER
F120 Case version included) |
Fan
Specs |
Aer F120 (Case
Version) |
Speed: 1200 200
RPM |
Airflow:
50.42 |
CFM Noise: 28
dBA |
Bearing: Rifle
Bearing |
Clearance |
Cable Management:
16.3mm |
GPU Clearance: Up to
325mm |
GPU Max Thickness:
44mm |
CPU Cooler: Up to
165mm |
Front Radiator:
85mm |
Rear Radiator:
42mm |
PSU Length:
311mm |
Warranty |
2
years |
Model
Number |
CA-H210i-W1 |
EAN |
5060301695102 |
UPC |
815671014801 |
