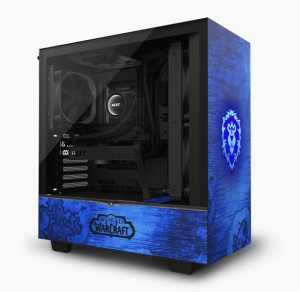

NZXT H510 Alliance CRFT Limited Edition ATX Case. 1 of 1,000 Units.



Overview

NZXT and Blizzard team up once again to bring you the perfect companion as you descend into the World of Warcraft and join thousands of mighty heroes in a realm of myth, magic, and limitless adventure. This new, limited edition NZXT H510 Alliance case allows you to display both your PC components and your faction pride. This case is themed in the Alliances colors, with the backlit logo proudly emblazoned on the front panel. For the Alliance!

  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, its easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.

*Case version fans and specs vary from retail version

Specifications

Dimensions

W: 210mm H: 435mm D: 428mm (without feet)

W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

6.6 kg

Motherboard Support

Mini-ITX, MicroATX, and ATX

Front I/O Ports

1x USB 3.1 Gen 1 Type-A

1x Headset audio Jack Front

I/O internal header

1x USB 3.1 Gen 2 Internal Header

1x USB 3.1 Gen 1 Internal Header

1x HD Audio Header

Filters

All Air Intakes

Included Accessories

Installation screws

10x Cable ties

1x Headset Audio Jack splitter (4 pole to 3 pole)

Drive Bays

2.5: 2+1

3.5: 2+1

Expansion Slots

7

Radiator Support

Front: 2x 140 or 2x 120mm with Pull

Rear: 1x 120mm

Fan Support

Front: 2 x 120/ 2 x 140mm

Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)

Rear: 1x 120mm (1 Aer F120 Case Version included)

Fan Specs

Aer F120 (Case Version)

Speed: 1200 200 RPM

Airflow: 50.42 CFM

Noise: 28 dBA

Bearing: Rifle Bearing

Clearance

Cable Management: 19-23mm

GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed

CPU Cooler: Up to 165mm

Front Radiator: 60mm

Rear Radiator: 60mm

Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Warranty

2 Years

Model Number

CA-H510B-WA

EAN

5060301695881

UPC

815671016058

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (NZXT) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
