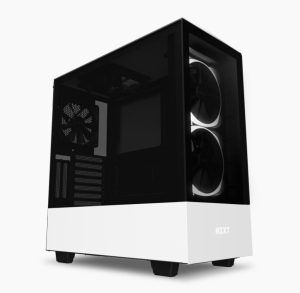

NZXT H510 Elite Premium Compact Mid-tower ATX Case - Matte White



Overview

The H510 Elite compact ATX mid-tower is perfect for your RGB build. Behind the flush-mounted, tempered glass front panel, youll discover our renowned Aer RGB 2 fans keeping your components brilliantly cool. Well-engineered airflow, removable radiator mounting bracket, multiple fan filters, vertical GPU mount, a front panel USB-C connector, and an all-steel and tempered glass construction are just some of the key features youll get. The H510 Elite also includes the NZXT Smart Device V2, powering the built-in RGB light strips and case fans.

  • Two tempered glass panels top off your build, perfectly showcasing your RGB build. Weve included two Aer RGB 2 fans and an RGB LED strip to get you started.
  • The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
  • The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.

Specifications

Dimensions

W: 210mm H: 435mm D: 428mm (without feet)

W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

7.5 kg

Clearance

Cable Management: 19-23mm

GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed

Vertical GPU Mount Clearance: 40.64mm

CPU Cooler: Up to 165mm

Front Radiator: 60mm

Rear Radiator: 60mm

Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Motherboard Support

Mini-ITX, MicroATX, ATX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C

1x USB 3.1 Gen 1 Type-A

1x Headset Audio Jack

Front I/O internal header

1x USB 3.1 Gen 2 Internal Header

1x USB 3.1 Gen 1 Internal Header

1x USB 2.0 Internal Header

1x HD Audio Header

Filters

All Air Intakes

Smart Device V2

3x Fan channels with Max 10W per channel output*

2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans

Built-in noise detection module

*Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.

RGB LED Lighting

2x Integrated Aer RGB 2 140mm Fans

1x Integrated addressable LED Strip

Vertical GPU Mount

2 Slots

Drive Bays

2.5": 2+1

3.5": 2+1

Expansion Slots

7

Radiator Support

Front: 2x 140 or 2x 120mm with Pull

*Note: Need to remove RGB fans if you plan to mount the radiator to the front

Rear: 1x 120mm

Fan Support

Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included)

Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included)

Rear: 1x 120mm (1x AER F120 Case Version Included)

Fan Specs

Aer RGB 2 (140mm)

Speed: 500-1,500 RPM

Airflow: 30.39 - 91.19 CFM

Noise: 22 - 33 dBA

Air Pressure: 0.17 1.52mm-H2O

Bearing: Fluid Dynamic Bearing

Fan Connector 4-Pin PWM

Warranty

2 Years

Model Number

CA-H510E-W1

EAN

5060301695294

UPC

815671015112
