The Next Generation NVMe Mobile Rack

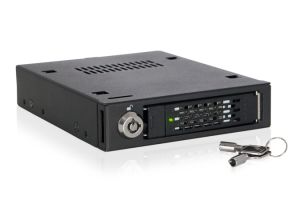

The MB601VK-B is ICY DOCKs next generation PCI-E based mobile rack with ability in supporting Intel, Micron, and Seagate ultra high speed 2.5 U.2 NVMe solid-state-disk in an external 3.5 floppy drive bay.

Superior Performance

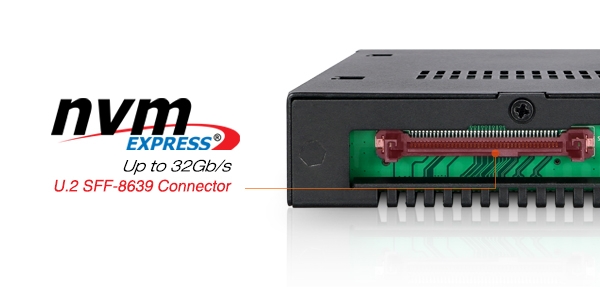

Built with the next generation U.2 (SFF-8639) interface, MB601VK-B offers up to 32Gb/s of bandwidth and supports 2.5 U.2 NVMe SSD, SAS and SATA interface 2.5 solid state drives or SSDs. The superior performance of MB601VK-B provides the maximum amount of transfer speed for the most data intensive tasks; such as real time large database transfers and refreshes, massive bulk data swaps from multiple networks, VMware providing virtual operating systems for mulitple computers, and large scale editing of large multimedia assets of virtual reality, video, music, and other graphics between multiple workstations.

*Note: NVMe U.2 host is required to accept NVMe

Convenient Utility &Accessibility

The EZ Slide Mini trays supports U.2 hot-swap feature, which makes U.2 NVMe SSD interchangeability and maintenance completely hassle-free. With a simple swap of the SSD, your overall down time is greatly reduced especially when a drive is needed to be switched. The tray is also designed to accommodate 5 to 15mm height SSD, creating a 2.5" hot swap bay for U.2 NVMe SSD or any standard SAS / SATA SSDs. While the tray is not inside the MB601VK-B, the Anti-Dust Flap feature helps prevent dust from entering into the mobile rack.

Note:the host system has to support NVMe hot-swap function in order for the OS to detect the swapped drive while the system is powered on. If you are having trouble detecting your U.2 NVMe SSD, please refer to FAQ.

The front of the MB601VK-B includes a status LED when the drive is powered on, off and accessed. Active Power Technology (APT) allows the status LED to be on only when a SSD is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray makes sure your SSDs will not eject when not needed. Additionally, the 2 segment key lock provides extra protection to theft of SSDs as well as safeguards any sensitive data.

Full Metal Protection

Making sure that the material used is designed in a way where it can be relied upon for many years after its deployment, the MB601VK-B is constructed out of heavy duty metal throughout the entire device and is capable of holding up in the harshest environments. With the Full Metal design, the ToughArmor is perfect for industrial, military and medical devices that may require a flammability rating as the full metal material is considered to be compliant with flammability requirements.

Optional M.2 to U.2 SSD Converter Adapter

If you have M.2 NVMe SSD, an optional ICY DOCK EZConvert MB705M2P-B M.2 NVMe SSD to U.2 NVMe SSD converter adapter can be used as an alternative inexpensive solution to transform your M.2 to U.2 form factor without the need to purchase another U.2 SSD.

Compatible Drive Trays
EZ Slide Mini Tray MB991TRAY-B Drive Tray for ToughArmor MB607, MB699, MB991, MB994 Series
EZ Slide Mini Tray MB994TK-B Drive Tray with 2-Segment Lock for ToughArmor MB607, MB699, MB991, MB994 Series
Key Features
*
Fits 1 x 2.5 U.2 NVMe SSD or 2.5" SAS / SATA SSD
(NVMe U.2 host is required to accept NVMe SSD, SAS or SATA SSD )
*
Fits any external 3.5 drive bay or floppy bay
*
Supports NVMe 32Gb/s transfer rate
*
Supports SATA 6Gbps or SAS 12Gbps (single channel)
*
Accommodates 2.5" SSD with 5mm, 7mm, 9mm, 12.5mm &15mm Height
*
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
*
Anti-Vibration Technology (AVT) - creates a safe environment for SSDs
*
EMI Grounding protects SSDs from electrical damage
* Eagle-hook lock system &2-segment safeguard key lock keeps drives secure within the enclosure
* Heavy Duty Full Metal construction, perfect for enterprise applications
* Drive tray is compatible with ToughArmor MB991SK-B, MB991IK-B, MB994SP-4S, MB994SP-4SB-1, MB994SK- 1B, MB994IPO-3SB and MB991U3-1SB *SAS / SATA SSD only
Product Name :
2.5" U.2 NVMe SSD Mobile Rack For External 3.5" Drive Bay
Model Number :
MB601VK-B
Color :
Black
Support Drive Size :
1 x 2.5" U.2 SSD or SAS/ SATA SSD/HDD
Compatible Drive Type :
NVMe / SATA / SAS (Single channel)
Number of Drives :
1
Max Drive Height :
15mm
Drive Bay :
1 x external 3.5" drive bay
Host Interface :
1 x U.2 connector (SFF-8639)
Power Input :
Via U.2 (SFF-8639)
Transfer Rate :
Up to 32Gbps
Support HDD Capacity :
No Limitation
Drive Cooling :
Metal heat dispersion with passive cooling
Structure / Material :
Full Metal
Support Hot-Swap :
Yes
Drive Security :
2 segment key lock
Product Dimension (L x W x H) :
147 x 101.6 x 25.4mm
Product Net Weight :
399g
Package Gross Weight :
464.2g
Drive Activity LED Indication :
Drive power: solid green; HDD access: flashing green
Package contents :
1 - Device, 1 - user manual, 10 - screw, 2 - key
U.2 Connector Insertion Rate :
10,000
Humidity :
5%~65% RH
Operating Temperature :
0C to 60C (32F to 140F)
Storage Temperature :
-35C to 70C (-31F to 158F)
Compliance :
CE, RoHS, REACH
Warranty :
3 years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
