All stock codes associated to this product
GPAP850GM, GP-AP850GM, 3650778004991, 4719331550882
Gigabyte Aorus P850W 80+ GOLD Modular Power Supply
Features
- Fully Modular Design
- High quality 100% Japanese Capacitors
- 135mm 2 ball bearing smart fan with fan stop function
- 80 PLUS Gold certified: above 90% efficiency at 50% load
- Single +12V rail
- OCP/OTP/OVP/OPP/UVP/SCP protection
- 10 years warranty (Adjusted according to different regions)
Fully Modular Design
All the black flat cables are modular design. Installing only the cables you
need to reduce clutter, to increase the airflow and to improve the chassis
thermal performance.
MB (20+4 PIN) x1
PCI-E (6+2 PIN) x6
SATA x6, PERIPHERAL x2
PERIPHERAL x3, FLOPPY x2
CPU (4+4 PIN) x2

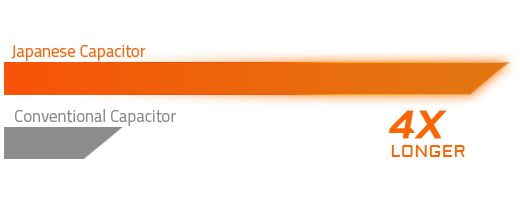

HIGH QUALITY 100% JAPANESE CAPACITORS
All capacitors are high quality Japanese capacitors, to produce the efficient
performance and to ensure the longer reliability.
The life of the main capacitor is over 20 years(Environment 25C)

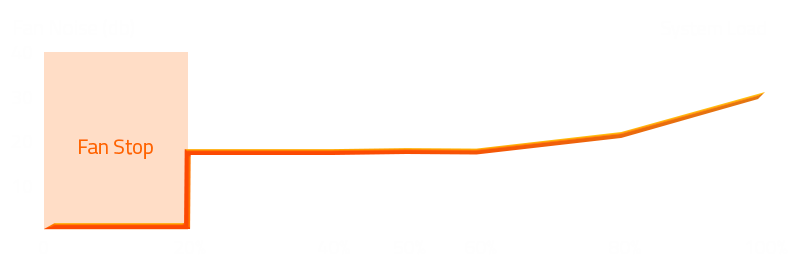

135MM SMART FAN
Fan speed will be adjusted according to the system load. And the fan will
stop when the system is idle or under low load (less than 20% load). The 2 ball
bearing structure provides longer life time.
2 ball bearing is the most durable fan construction with a durability of over
50,000 hours. The life of the 2 ball bearing is more than 5 years.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The
better power efficiency leads to less power waste, less heat and less fan noise.
And with the support of Intel processors, it will save more energy and more
money.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility
for the hardware. It provides the easiest way to install the power cable. And it
is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any
conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP
and SCP, but also ensured the stable operation of your system through the safety
certification of various countries.
- OCP - Over Current Protection
- OTP - Over Temperature Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection

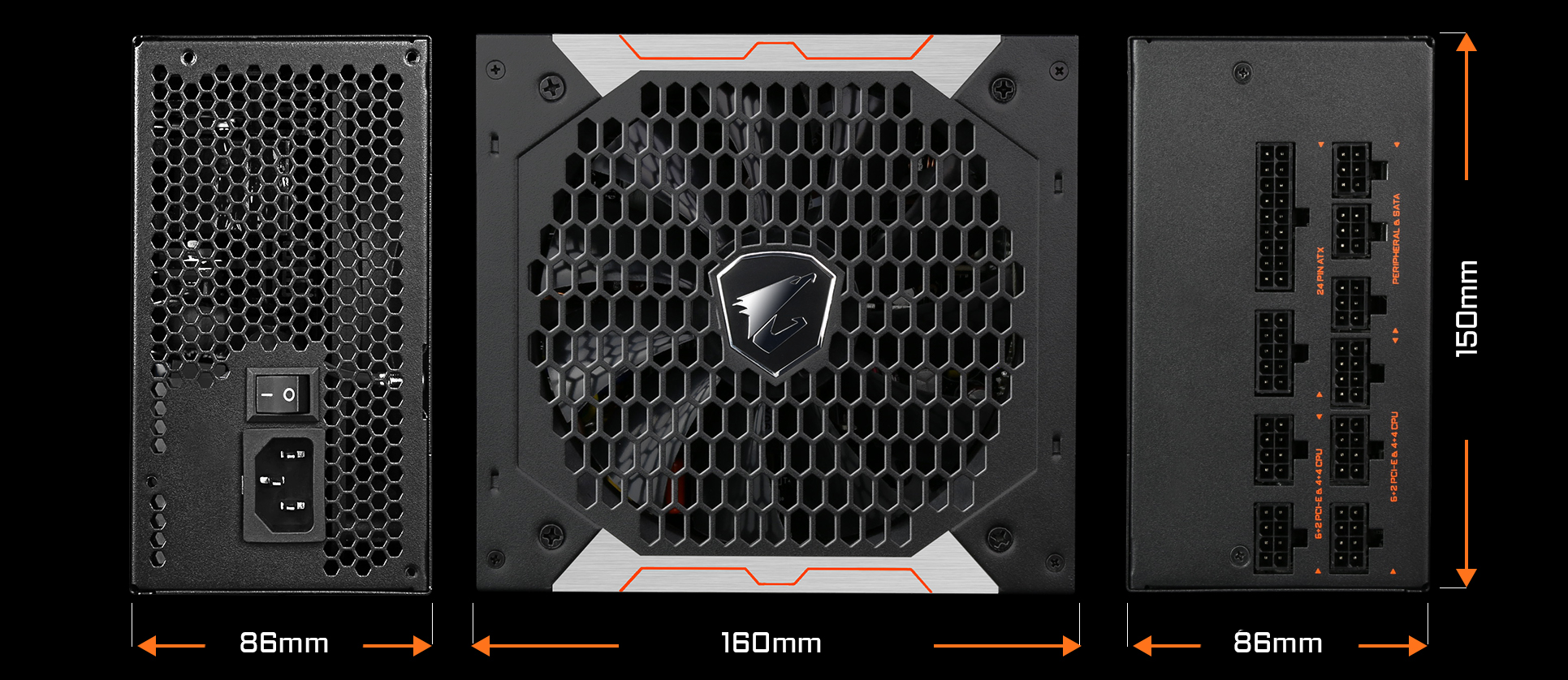

DIMENSIONS

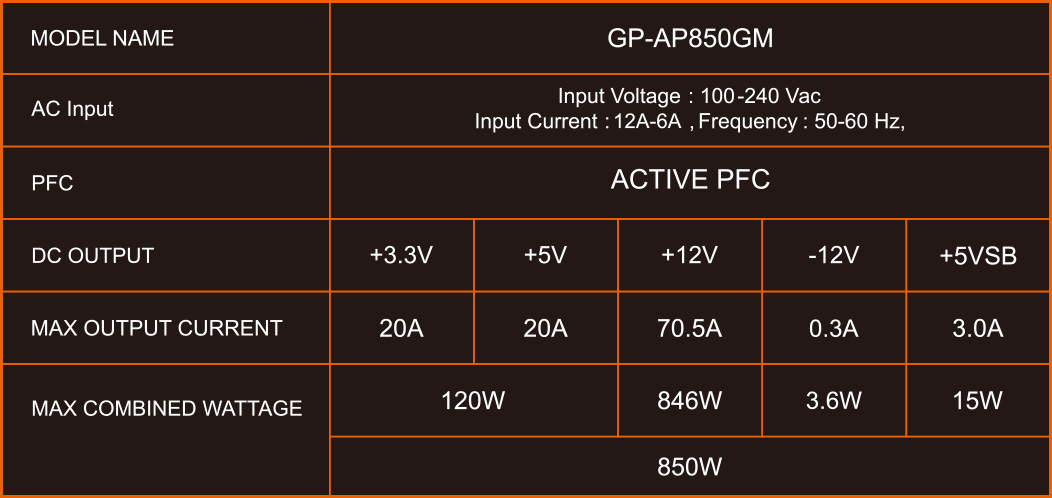

Specifications
Model |
GP-AP850GM |
Type |
Intel Form Factor ATX
12V v2.31 |
PFC |
Active PFC (>0.9
typical) |
Input
Voltage |
100-240 Vac (full
range) |
Input
Current |
10A |
Input
Frequency |
47-63
Hz |
Output
Capacity |
850W |
Dimension |
150 x 160 x
86mm |
Fan
Type |
135mm Double ball
bearing fan |
80
PLUS |
Gold |
Efficiency |
90% at typical
load |
MTBF |
>100,000
hours |
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
Power Good
Signal |
100ms ~
150ms |
Hold Up
Time |
> 16m sec at full
load (115V) |
Cable
Type |
Flat, All
black |
Connectors |
ATX/MB 20+4 Pin x 1 :
650mm |
|
CPU/EPS 4+4 Pin x 2 :
800mm*1 , 650mm*1 |
|
PCI-e 6+2 Pin x 6 :
750mm*2 , 650mm+150mm*2 |
|
SATA x6 + 4 Pin
Peripheral x2 : |
|
550mm+100mm+100mm+100mm*1 |
|
450mm+100mm+100mm+100mm
*1 |
|
4 Pin Peripheral x 3 +
4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 |
|
4 Pin Floppy x 1 :
100mm |
